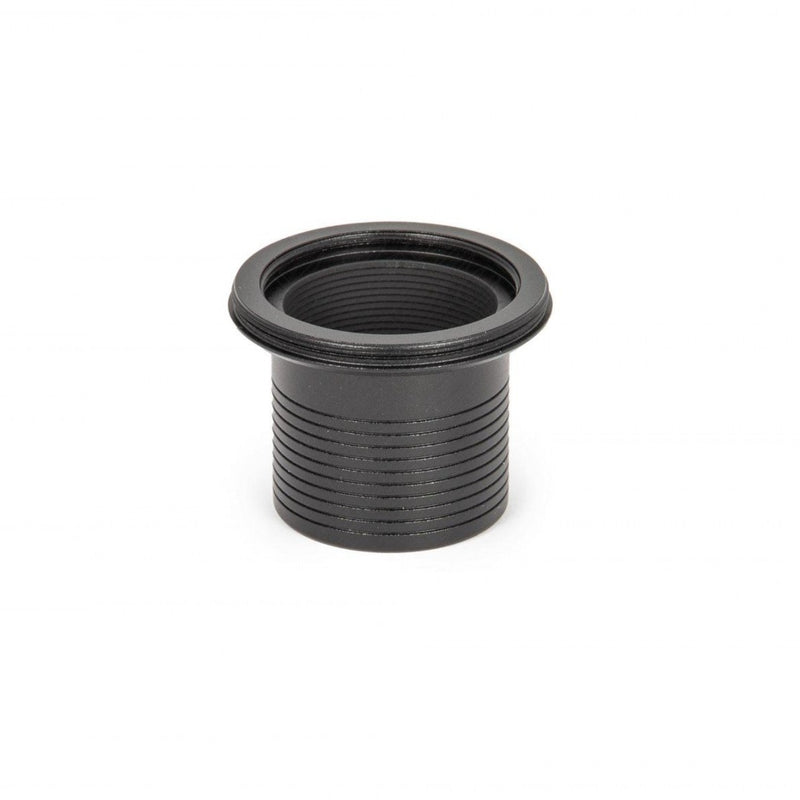

Baader 1¼" T-2 nosepiece with Safety Kerfs

$35.00
SKU T2-14A (Baader #2458106)

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Nosepiece with 28mm insertion length, with Baader proprietory Safety Kerfs
  • With only 3 mm long T-2 thread for modern CMOS cameras
  • Eyepiece side with T-2 malel thread, telescope side with 1¼" outer diameter
  • Incl. filter thread M28.5 for all 1¼" filters
  • Optical path length: 1.5 mm

Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5 mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard

    Specifications
    MANUFACTURER Baader Planetarium
    SKU (#) 2458106
    EAN CODE 4047825045638
    OPTICAL LENGTH (MM) 1,5
    INNER DIAMETER / CLEAR APERTURE (MM) 28 mm
    OUTER DIAMETER 43 mm
    INNER CONNECTION (LENS SIDED) Thread
    OUTER CONNECTION (LENS SIDED) Barrel, 1¼"
    INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread
    OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, T-2 (M42 x 0,75)
    COMPATIBLE BRANDS Astro T-2, Baader Planetarium, Celestron
    TYPE OF ADAPTER Barrel, Expanding piece, Filter holder
