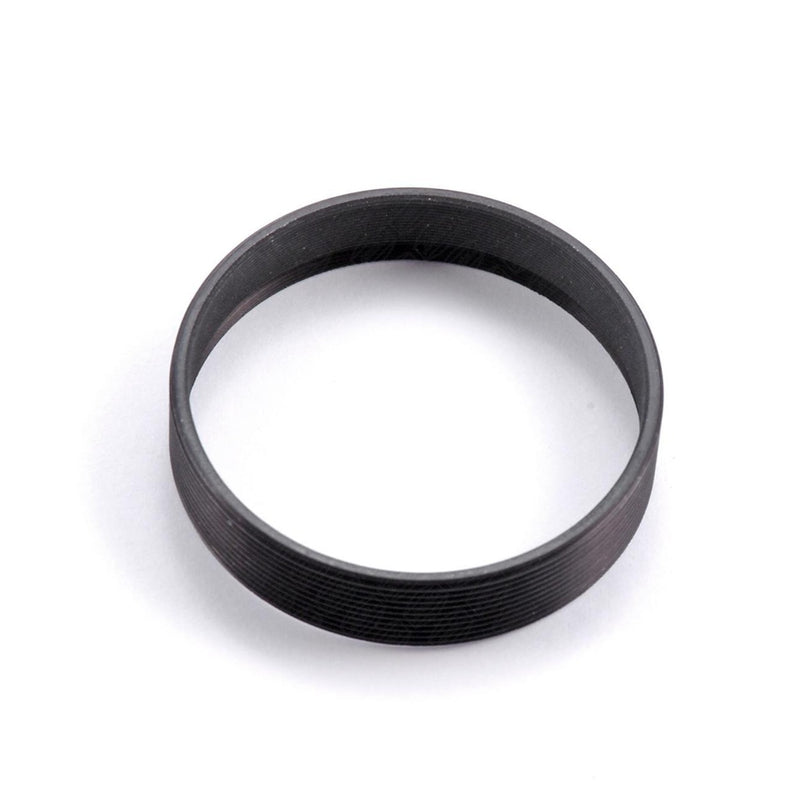

Baader 2"/2" Inverter Ring with 48mm filter thread

SKU INVERT-2 (Baader #1508020)
Original price $37.00 - Original price $37.00
Original price
$37.00
$37.00 - $37.00
Current price $37.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Converts 2" female into 2" male thread
  • Internal M48 Filter thread for 2" filter
  • Can be used to connect Baader Hyperion Mark III Zoom directly to a Baader Star Diagnol gaining adfitional backfocus by swapping ClickLock-clamp for this adaptor.

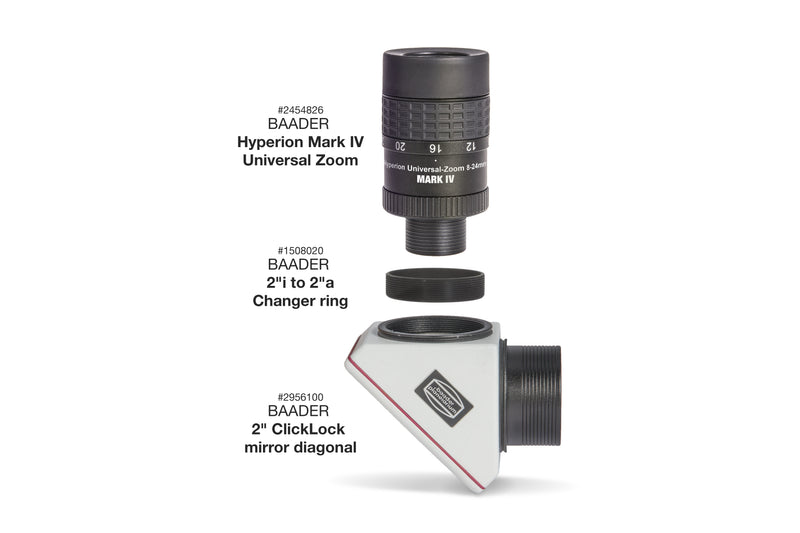

2"/2" Inverter Ring Application example

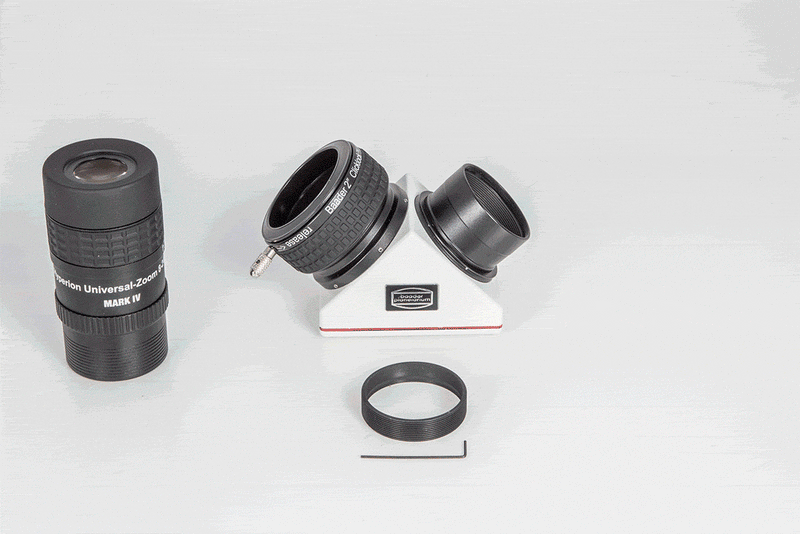

Short information (and GIF-Animation) on how to mount the Mark III Zoom directly onto any of our 2" Mirror diagonals equipped with a ClickLock-clamp. In case of insufficient backfocus or for permanent attachment onto the telescope (especially suited for public observatories), you can thread the Hyperion Zoom DIRECTLY onto any 2" SC/HD (Celestron-standard) telescope thread (were the Visual-Back fastens usually), or – in case of the Baader 2" ClickLock star diagonal – you can thread the Zoom directly onto the body of the Star Diagonal itself (gaining 47mm in backfocus) – by removing the 2" ClickLock-clamp and adding the Baader ring 2" inner to 2"outer.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 1508020
EAN CODE 4047825016300
WEIGHT (NETTO) 0.014
WIDTH (MM) 12
USAGE changes a 2" inner thread in 2" outer thread
INNER DIAMETER / CLEAR APERTURE (MM) 46
OUTER DIAMETER 50,8 (2")
OUTER CONNECTION (LENS SIDED) Thread, 2" (50,8mm)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, 2" (50,8mm)
COMPATIBLE BRANDS UNC, Baader Planetarium, Celestron
TYPE OF ADAPTER Switcher ring
