Baader 2" Safety Kerf nosepiece with 2" filter thread

SKU T2-19A (Baader #2408156)
Original price $48.00 - Original price $48.00
Original price
$48.00
$48.00 - $48.00
Current price $48.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

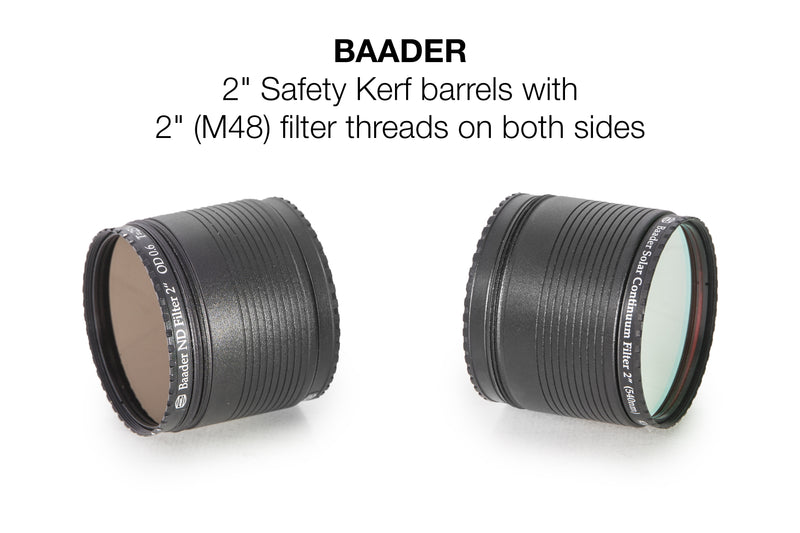

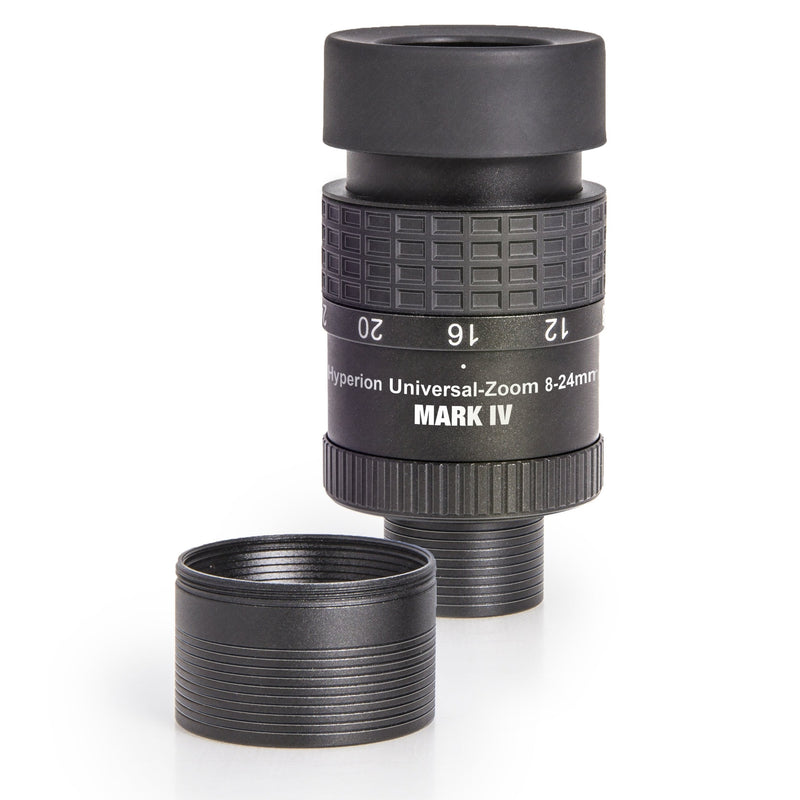

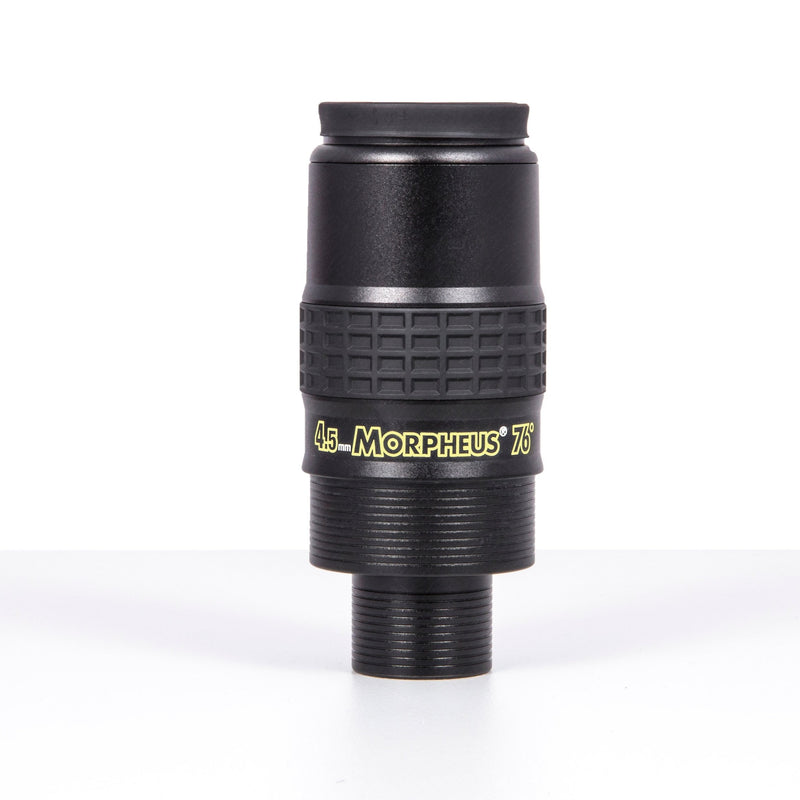

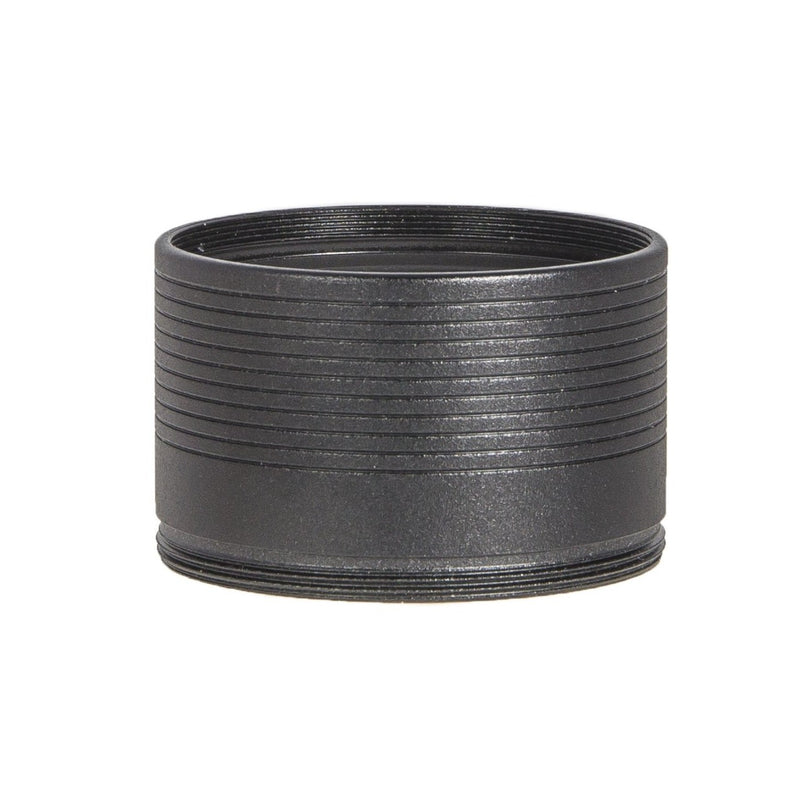

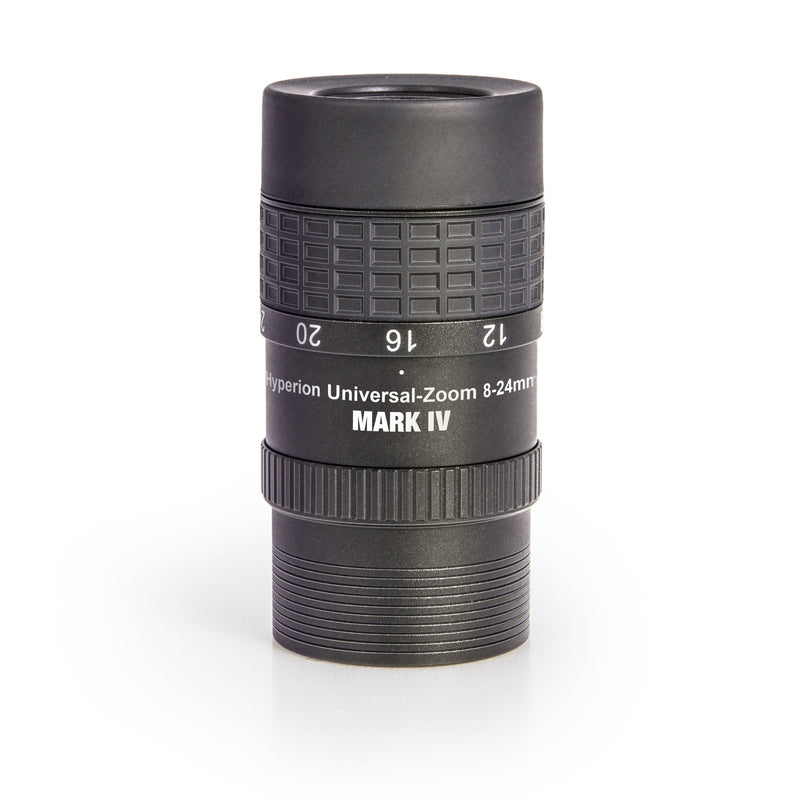

  • Ultra hard 2"nose piece, with Baader proprietory Safety Kerfs (introduced with our Morpheus and Hyperion Zoom Mark IV eyepieces: the numerous shallow kerfs give additional grip and security from inadvertent slipping, without the annoying problems sometimes caused by traditional deep undercuts)

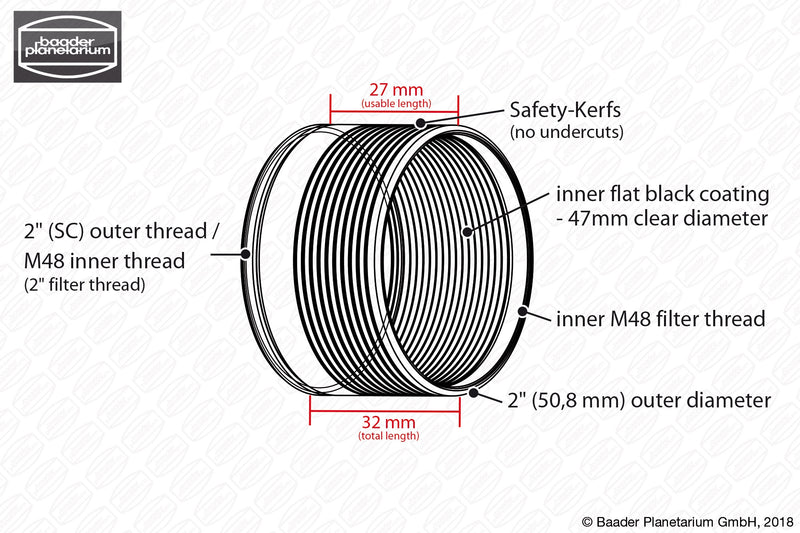

  • 32 mm total length, 27 mm usable length (after threading)

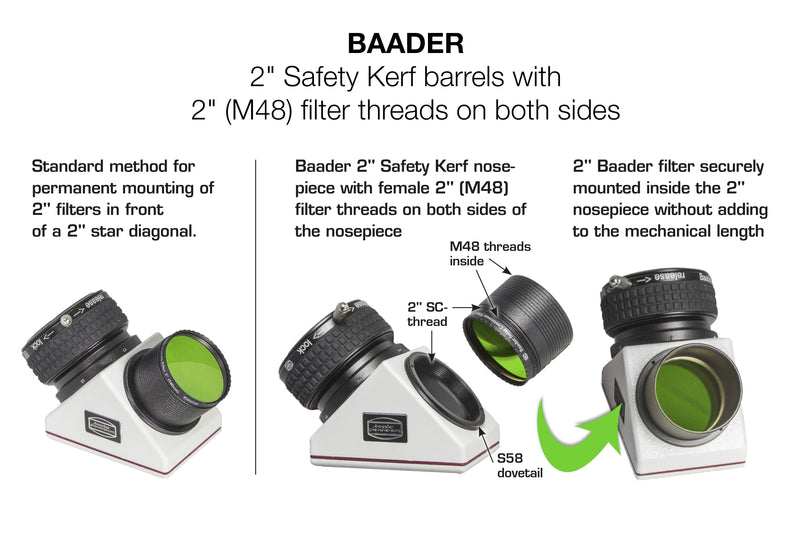

  • Focus side 2" (50.8mm) male thread (SCT thread) – incl. female M48 filter thread for cell mounted 2" filters
  • Telescope side 2" outer diameter – also including 48mm filter thread for cell mounted 2" filters
  • 47 mm inner diameter with flat black anti-reflex coating
  • For numerous applications, such as mounting the Baader 6x6 T-adapter (T-2 component #17) onto 2" focusers. For improving the 2" nose piece of all Baader 2" star diagonals a.s.f.
    Specifications
    MANUFACTURER Baader Planetarium
    SKU (#) 2408156
    EAN CODE 4047825012708
    WEIGHT (NETTO) 0.049
    T-2 PART # 19A
    INNER DIAMETER / CLEAR APERTURE (MM) 47
    OUTER DIAMETER 50,8 (2")
    INNER CONNECTION (LENS SIDED) Thread, M48
    OUTER CONNECTION (LENS SIDED) Barrel, 2" (50,8mm)
    INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M48
    OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, 2" (50,8mm)
    ADAPTABLE TO every female 2" SC-thread;6x6 T-Adapter
    COMPATIBLE BRANDS UNC, Baader Planetarium, Celestron
    TYPE OF ADAPTER Barrel, Filter holder
