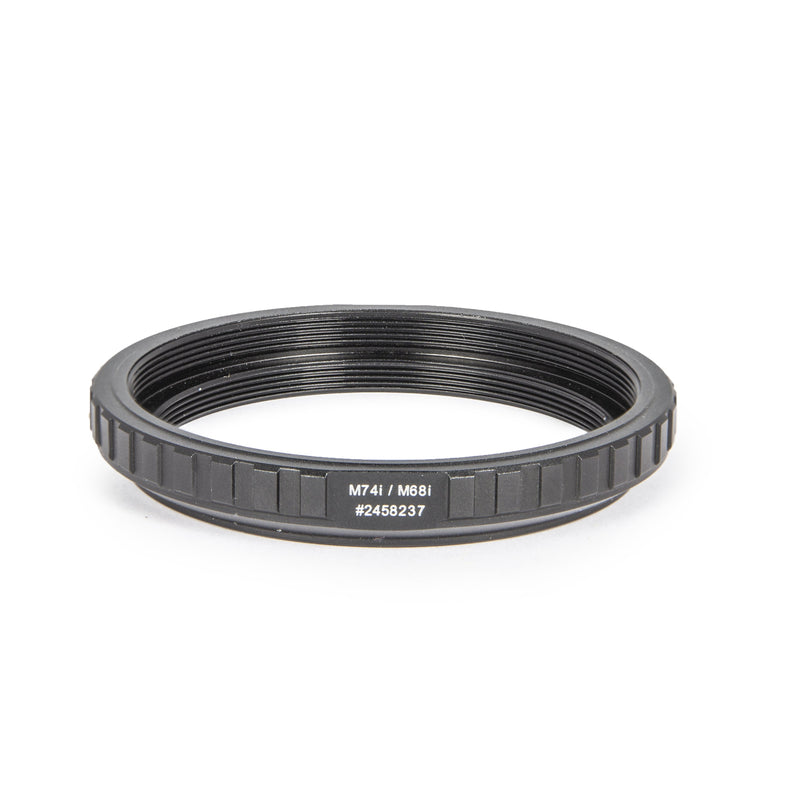

Adapter M68i to M74i (Skywatcher Esprit, TS-Optics, Omegon)

Adapter M68i to M74i (Skywatcher Esprit, TS-Optics, Omegon)

by Baader Planetarium
SKU M68/M74 (Baader #2458237)
$46.00 - $46.00
$46.00
$46.00 - $46.00
$46.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Adapter with M68i x1 to M74i x1 female threads, to adapt M68 parts to focusers with M74 x 1 male thread, e.g. Skywatcher Esprit 120&150, TS-Optics and Omegon APOs 150/1000 with Linearpower focuser
  • Changes a M68x1 (Zeiss) male thread into a M74 x 1 female thread
  • Part is used in our M74i x 1 ClickLock clamp #2956274
  • Optical height: 12,7 mm, Inner diameter (clear aperture): 67 mm
  • Learn more about the Baader M68 Connections
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2458237
EAN CODE 4047825040992
WEIGHT (NETTO) 0.026
OPTICAL LENGTH (MM) 12,7
INNER DIAMETER / CLEAR APERTURE (MM) 67
OUTER DIAMETER 85
INNER CONNECTION (LENS SIDED) Thread, M74
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M68 x 1
COMPATIBLE BRANDS Baader Planetarium, Omegon, Skywatcher
TYPE OF ADAPTER Reducing piece
