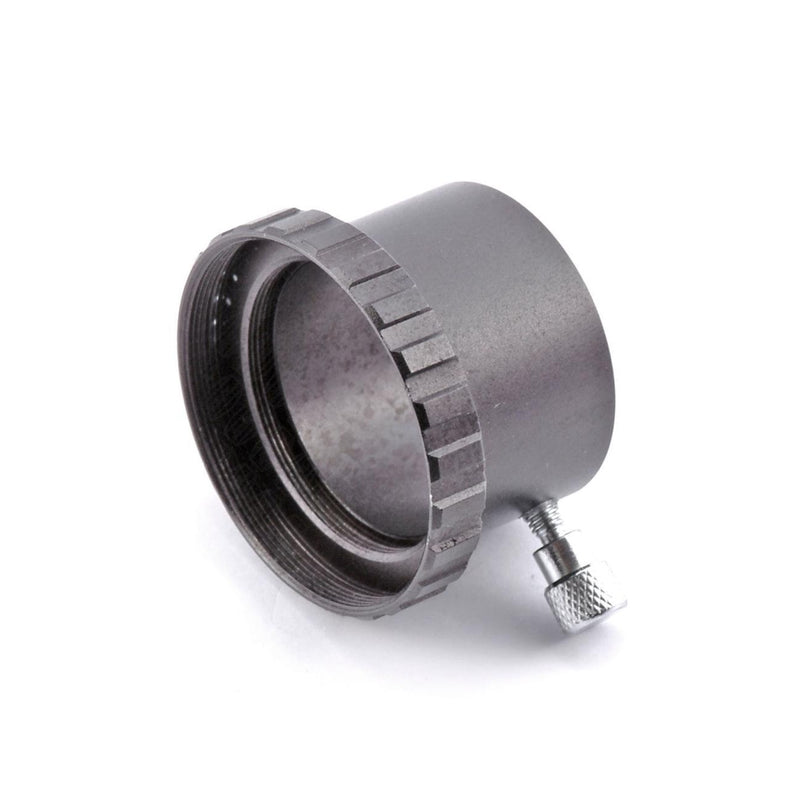

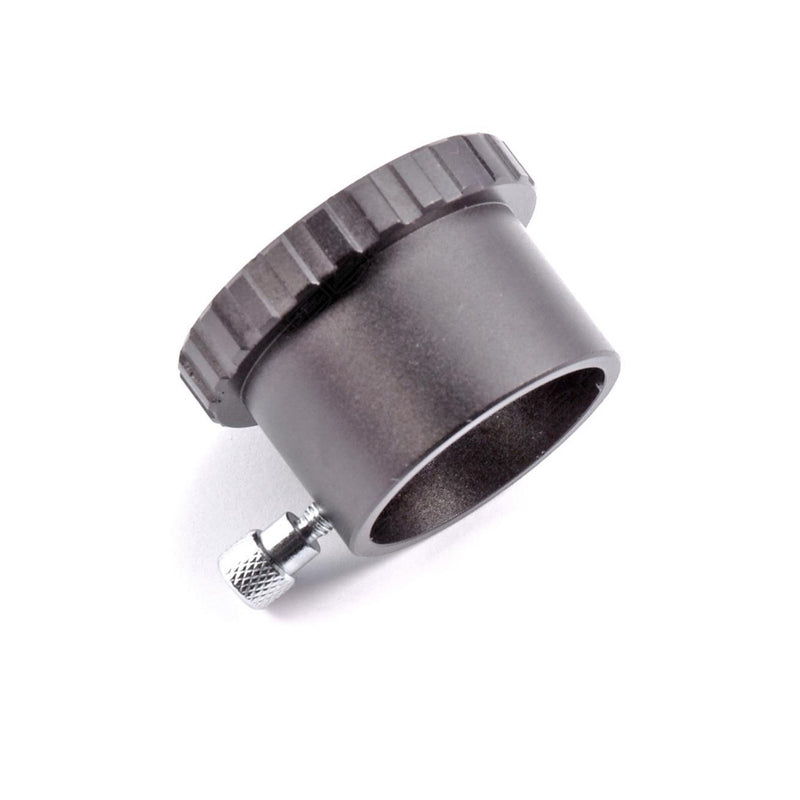

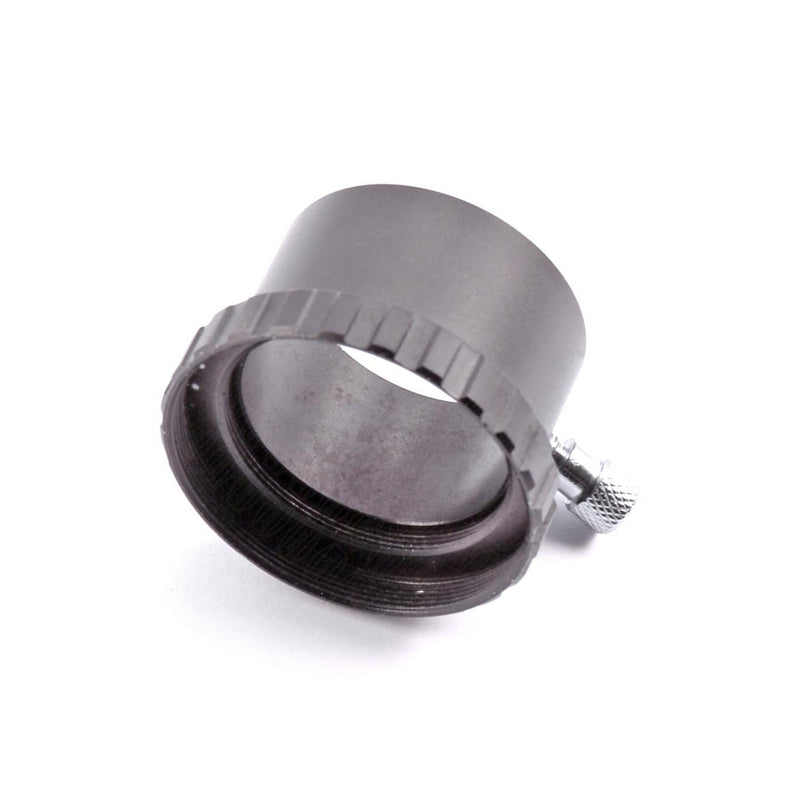

Baader 1¼" / T-2 Eyepiece Holder

Baader 1¼" / T-2 Eyepiece Holder

by Baader Planetarium
SKU EYEHOLD-1 (Baader #2458120)
$25.00 - $25.00
$25.00
$25.00 - $25.00
$25.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Eyepiece 1¼ "/ T-2 internal thread, low priced version with M 4 screw (alternatively: T-2 component # 08A)
  • 1 M4 clamp screw
  • Telescope side with T-2 internal thread
  • For 1¼" eyepieces or connecters
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2458120
EAN CODE 4047825010186
WEIGHT (NETTO) 0.038
OPTICAL LENGTH (MM) 23,5
CLAMPING SYSTEM Screw clamps
USAGE for rotation clamping
SCREW TYPE M4 clamping screw
INNER DIAMETER / CLEAR APERTURE (MM) 31,75 (1¼")
OUTER DIAMETER 45
INNER CONNECTION (LENS SIDED) Thread, T-2 (M42 x 0,75)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼"
COMPATIBLE BRANDS Astro T-2, UNC, Baader Planetarium, Celestron
TYPE OF ADAPTER Eyepiece Clamp, Reducing piece
Downloads

Astro T-2 System Connections Overview

Baader Astro T-2 System™ Parts list
