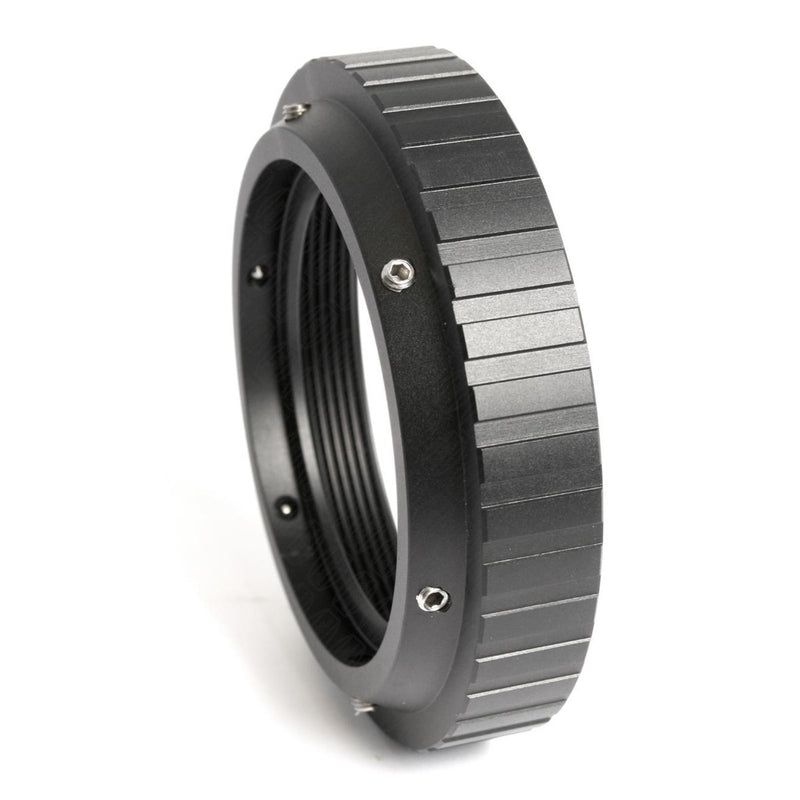

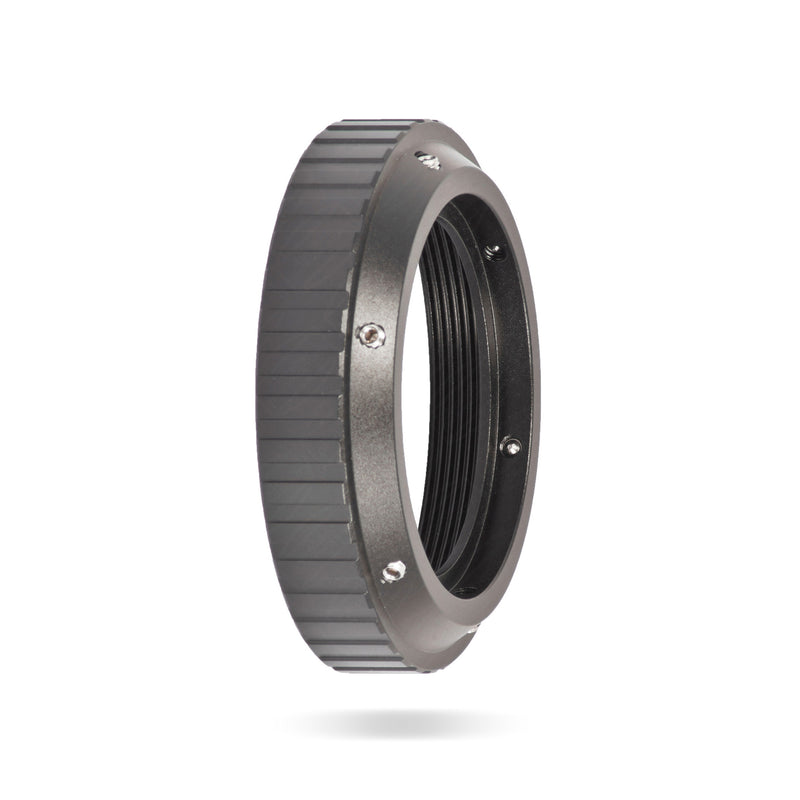

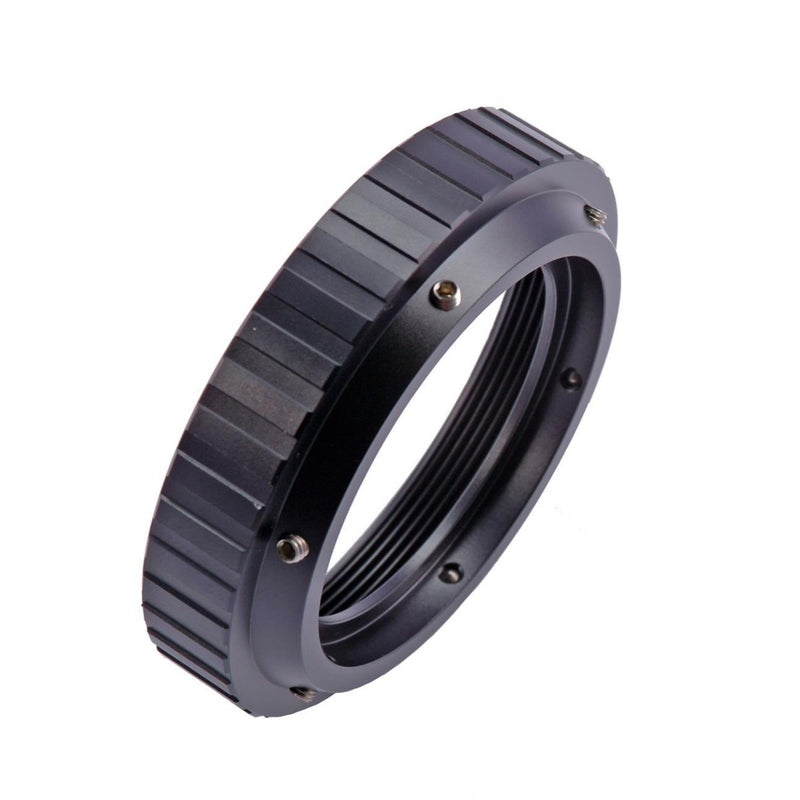

Baader 3.3" Celestron Nut (T-2 part #18)

Baader 3.3" Celestron Nut (T-2 part #18)

by Baader Planetarium
SKU T2-18 (Baader #2408145)
$98.00 - $98.00
$98.00
$98.00 - $98.00
$98.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • 3.3" thread for C11 and C14
  • For connecting the 2" eyepiece clamp no. 2408140 (T-2 component #17) to C11 and C14 telescopes
  • A clear 50mm aperture
  • No vignetting when used on C11 and C14 telescopes
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2408145
EAN CODE 4047825012722
WEIGHT (NETTO) 0.094
OPTICAL LENGTH (MM) 2
CLAMPING SYSTEM Dovetail clamp
T-2 PART # 18
USAGE to connect the 2" eypiece clamp on C11 and C14 telescopes
SCREW TYPE 6 x M2 Allen wrench screws
INNER DIAMETER / CLEAR APERTURE (MM) 58
OUTER DIAMETER 90
INNER CONNECTION (LENS SIDED) Thread, 3,3"
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Dovetail ring clamp, S65
ADAPTABLE TO Celestron C11 / C14
COMPATIBLE BRANDS UNC, Celestron
TYPE OF ADAPTER Reducing piece
Downloads

Astro T-2 System Connections Overview

Baader Astro T-2 System™ Parts list
