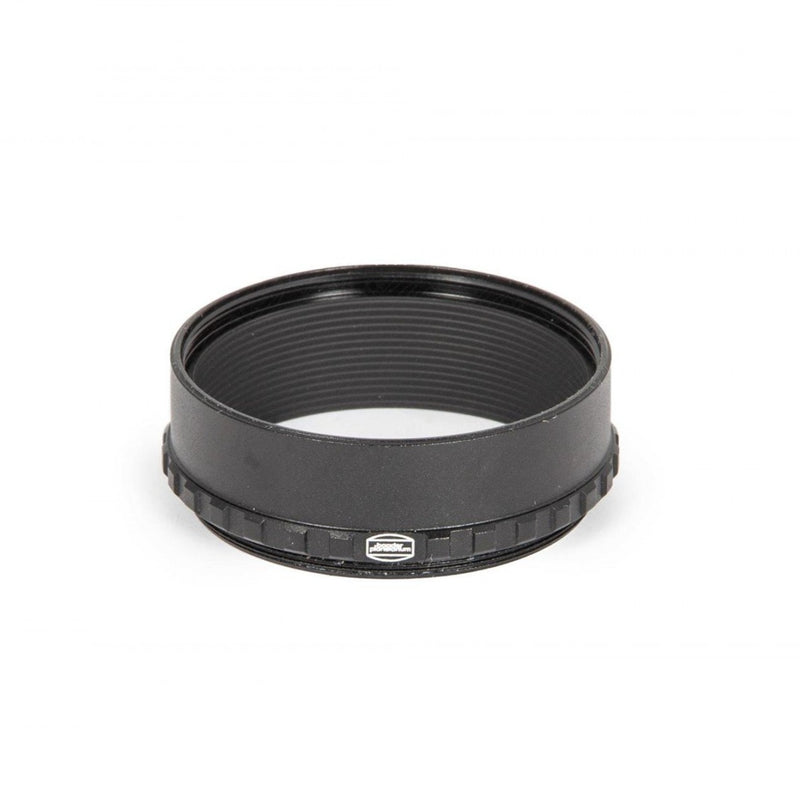

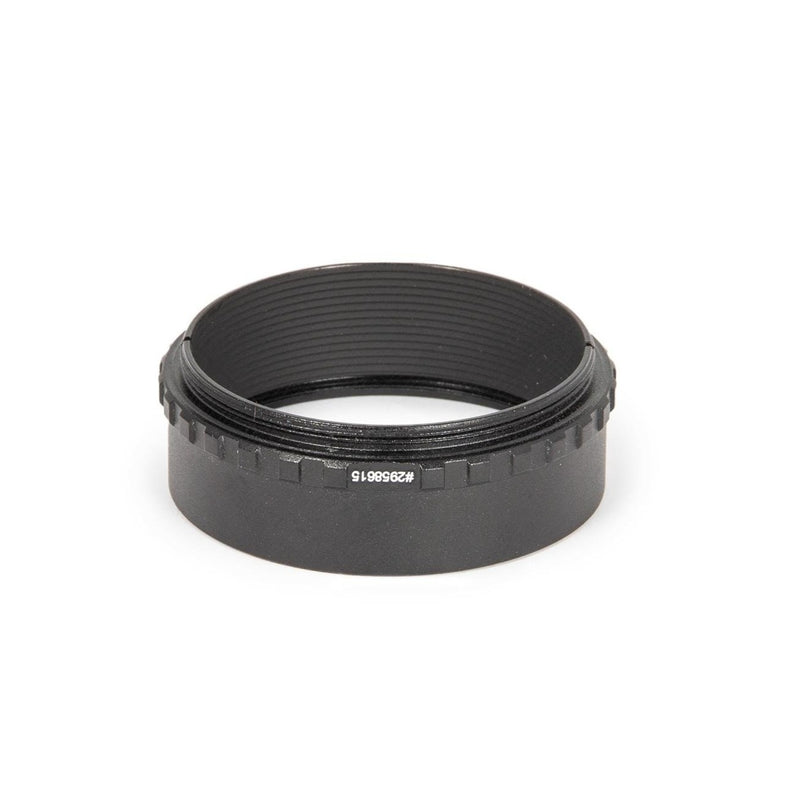

Baader M48 extension tube 15 mm

Baader M48 extension tube 15 mm

by Baader Planetarium
SKU M48/15 (Baader #2958615)
$31.00 - $31.00
$31.00
$31.00 - $31.00
$31.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Used to adjust the working distance of larger cameras and similar accessories with M48 thread
  • Telescope side M48 internal thread, 3,5mm depth
  • Eyepiece-/camera side M48 external thread, 3mm depth
  • 15mm optical path length
  • Aluminium

Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2958615
EAN CODE 4047825042842
OPTICAL LENGTH (MM) 15
CLAMPING SYSTEM no clamp
USAGE Adjusting the distances of accessories with M48 thread
INNER DIAMETER / CLEAR APERTURE (MM) 45 mm
OUTER DIAMETER 53 mm
INNER CONNECTION (LENS SIDED) Thread, M48
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M48
COMPATIBLE BRANDS Baader Planetarium
TYPE OF ADAPTER Extension
