Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

by Baader Planetarium
SKU PAN-ADJ (Baader #2451515)
$1,329.00 - $1,329.00
$1,329.00
$1,329.00 - $1,329.00
$1,329.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Compact, mobile rotary stage for adjustment of 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series.
  • Makes it possible to adjust the optical axes of parallel mounted telescopes to each other.
  • Mounts parallel to the main telescope on the side of the dual mount or on the side port of a PlaneWave L-mount to align and simultaneously operate secondary telescopes such as RASA-, or Newtonian telescopes parallel to the main telescope in the azimuthal or equatorial configuration. To connect the PAN adjuster to the L-350 mount, the Adapter to mount PAN-Adjuster to PlaneWave L-350 (#2451516) is required.
  • Push pull screws allow to adjust the angle of the installation plate to the rotation plate.
  • Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate
  • Cutouts and hole in the middle allows for cabling
  • Made of solid Dural Aluminum and connected with stainless steel clamping rings.
  • Developed and manufactured at Baader Planetarium in Germany.

This high quality, compact rotary stage allows the adjustment of the optical axes of parallel mounted telescopes to each other. The PAN Adjuster is used to adjust 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series from PlaneWave Instruments.

The PAN-Adjuster is mounted parallel to the main instrument on the side of the double mounting plate or on the side port of a PlaneWave L-Mount, in order to align and simultaneously operate secondary instruments, such as a RASA or a Newtonian telescopes parallel to the main instrument, in the azimuthal or equatorial design.

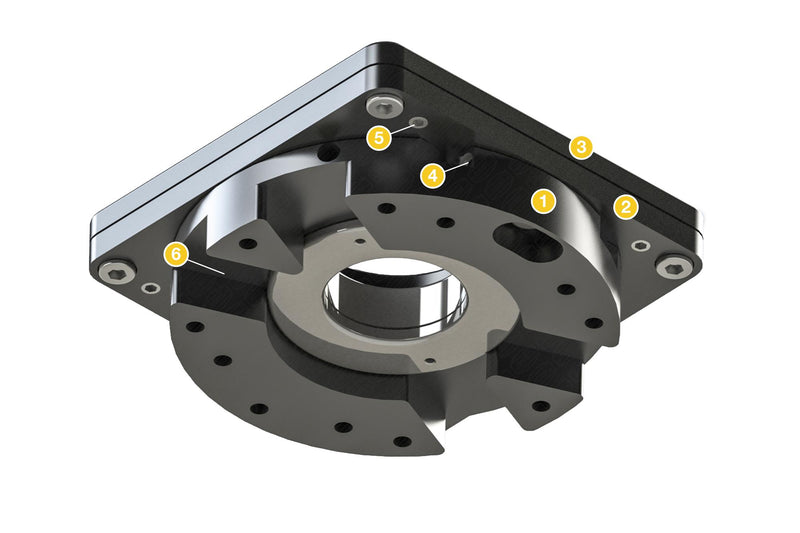

Technical details of the PAN-Adjuster

  1. Attachment plate
  2. Rotation plate
  3. Installation plate
  4. Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate
  5. Push pull screws allow to adjust the angle of the installation plate to the rotation plate
  6. Cutouts and hole in the middle allows for cabling
Specifications
MANUFACTURER Baader Planetarium
EAN CODE 4047825046895
SKU (#) 2451515
NET WEIGHT (KG) 2.240
SCREWS INCLUDED? Yes
BAR OR CLAMP? Clamp
