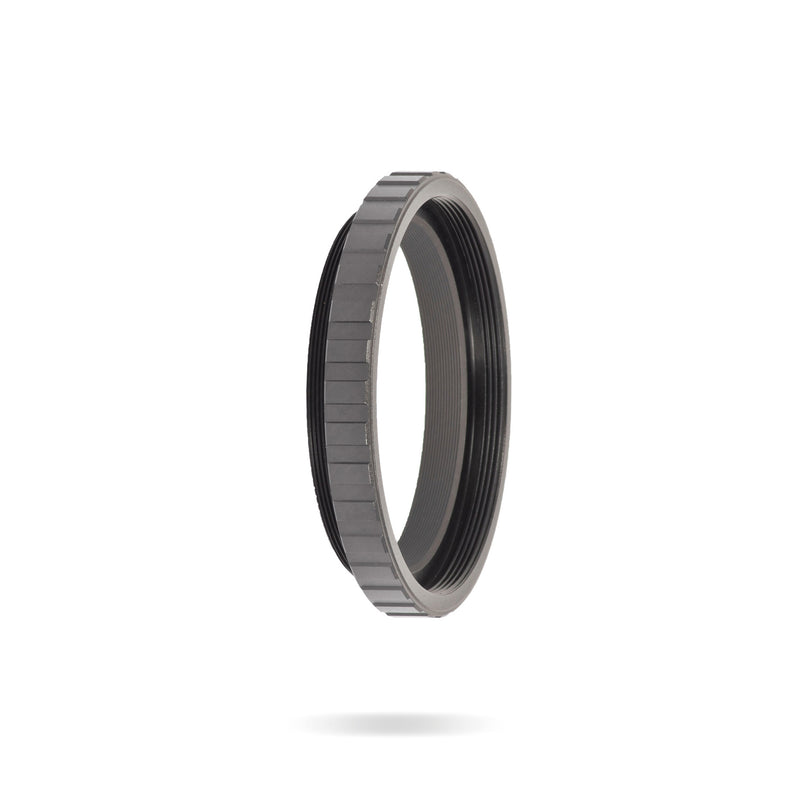

Baader TAK (Sky90) Adapter M64x0.75mm / M68f (Zeiss)

Baader TAK (Sky90) Adapter M64x0.75mm / M68f (Zeiss)

by Baader Planetarium
SKU TAK-M64 (Baader #2458231)
$67.00 - $67.00
$67.00
$67.00 - $67.00
$67.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

CAUTION:   The 2458231 TAK-M64 Sky90 adapter is NOT directly compatible with the Baader 2458196 T2-32 UltraShort EP Clamp.   The T-32 will bottom and not fully thread into the TAK-M64 due to the small ID of its M64 portion, resulting in very little thread engagement of the M68 threads (doing so may result in a poor connection that could fail under load).  If you wish to connect these two items, you can use a 2458201 M68/10 extension tube in-between to space the T2-32 farther out.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2458231
EAN CODE 4047825023926
WEIGHT (NETTO) 0.039
OPTICAL LENGTH (MM) 8,5
INNER DIAMETER / CLEAR APERTURE (MM) 59
OUTER DIAMETER 76
OUTER CONNECTION (LENS SIDED) Thread, M64
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M68 x 1
COMPATIBLE BRANDS Baader Planetarium, Takahashi, Zeiss
TYPE OF ADAPTER Expanding piece
