Ultrashort 1¼" / T-2 Clamp

Ultrashort 1¼" / T-2 Clamp

by Baader Planetarium
SKU EYEHOLD-1S (Baader #2458121)
$38.00 - $38.00
$38.00
$38.00 - $38.00
$38.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

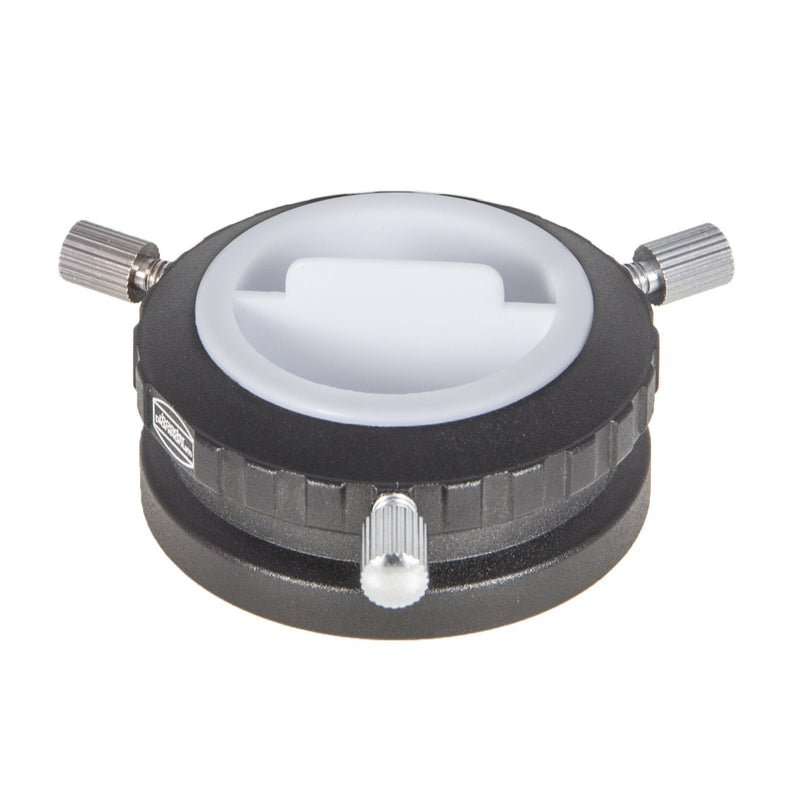

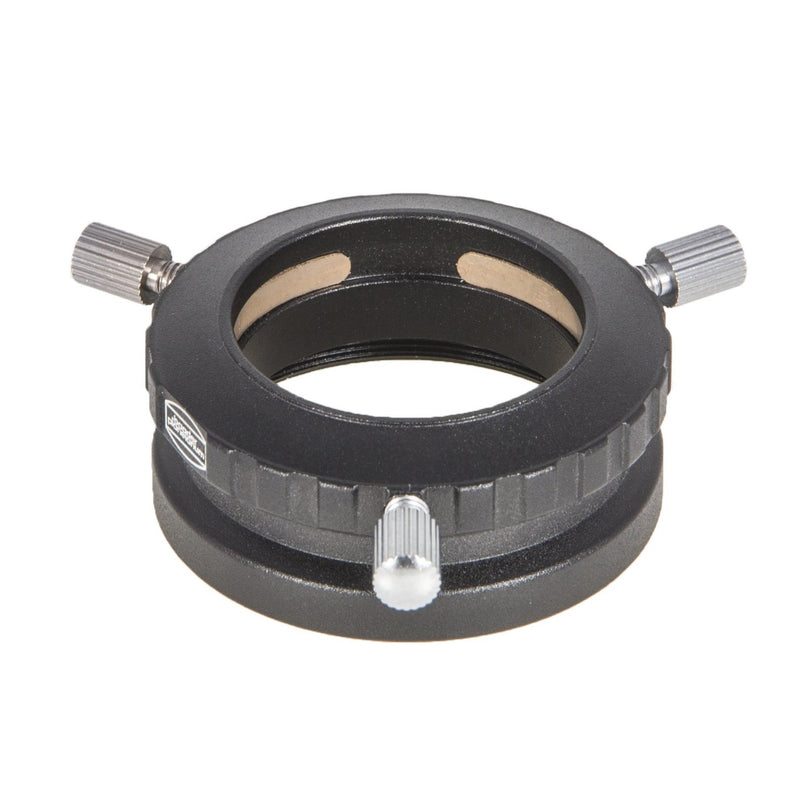

  • Ultra short 1¼" eyepiece-clamp (w. brass locking ring)
  • Optical length: 20mm
  • Optimized for guiding camera, w. three set screws for utmost stability and for centering of undersized camera-nosepieces

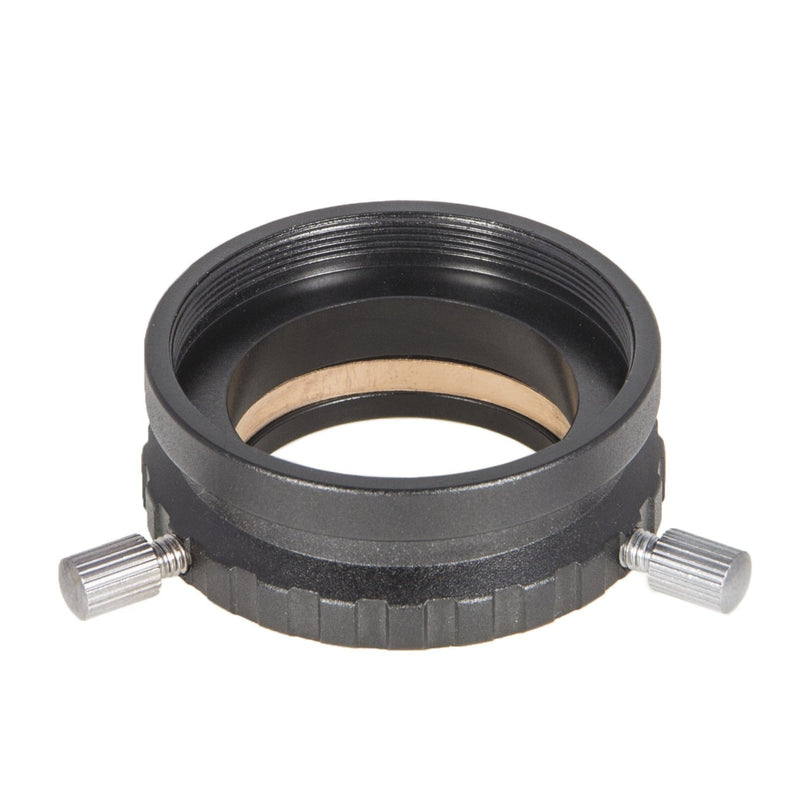

  • adapts onto external T-2 thread

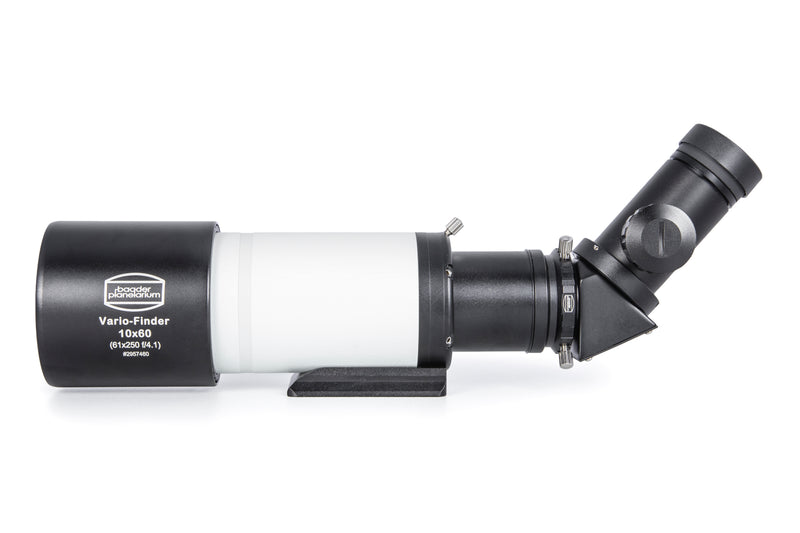

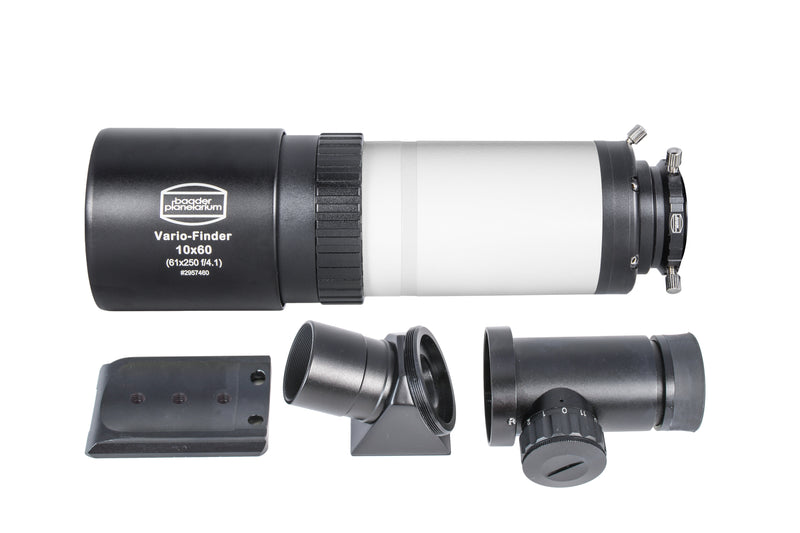

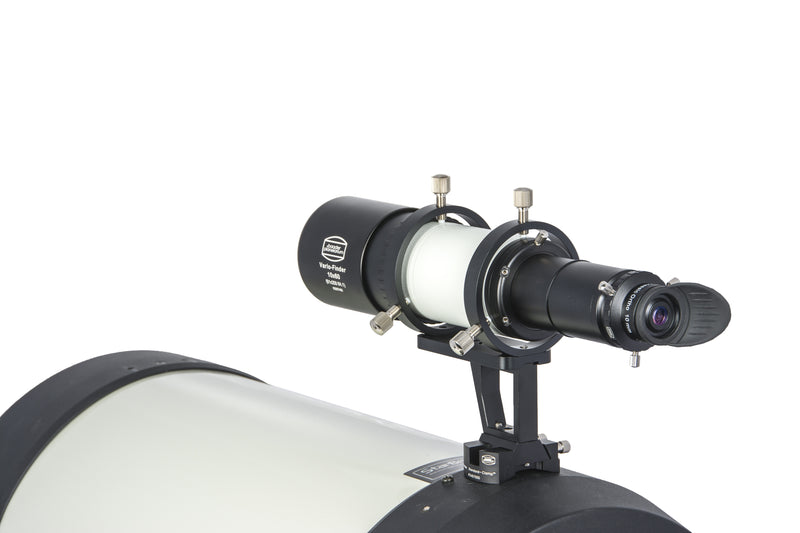

  • First introduced as part of the Vario Finder 10x60 – long awaited individual part within the Baader Astro T-2 family of adapters

Learn more about THE BAADER ASTRO T-2 SYSTEM™

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2458121
OPTICAL LENGTH (MM) 20
CLAMPING SYSTEM Screw clamps
T-2 PART # 8C
INNER DIAMETER / CLEAR APERTURE (MM) 1.25" (31,75mm)
OUTER DIAMETER 52
INNER CONNECTION (LENS SIDED) Thread, T-2 (M42 x 0,75)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼"
ADAPTABLE TO Guiding Cameras
TYPE OF ADAPTER Eyepiece Clamp
