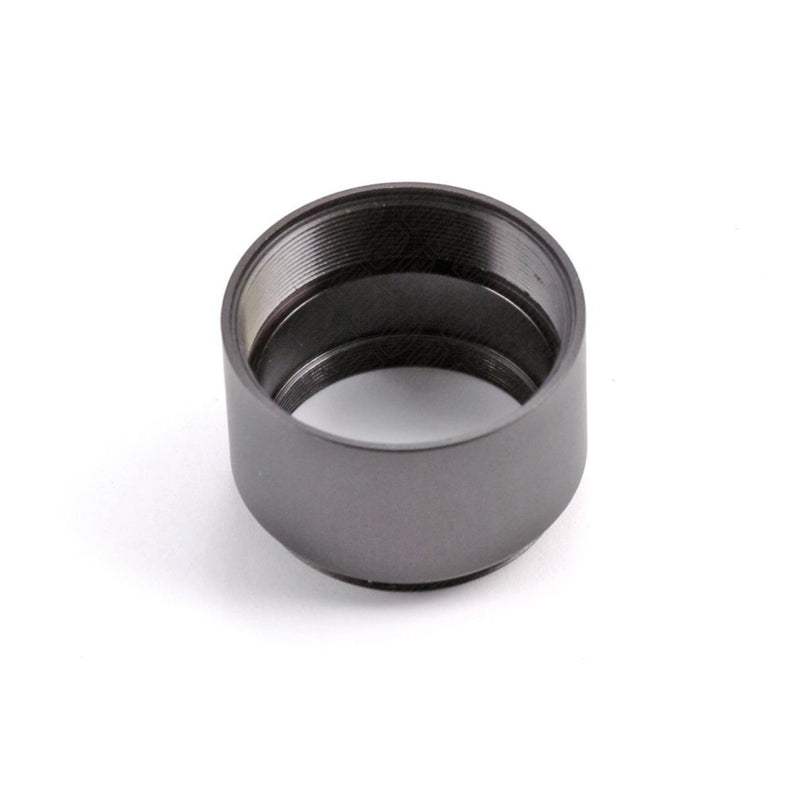

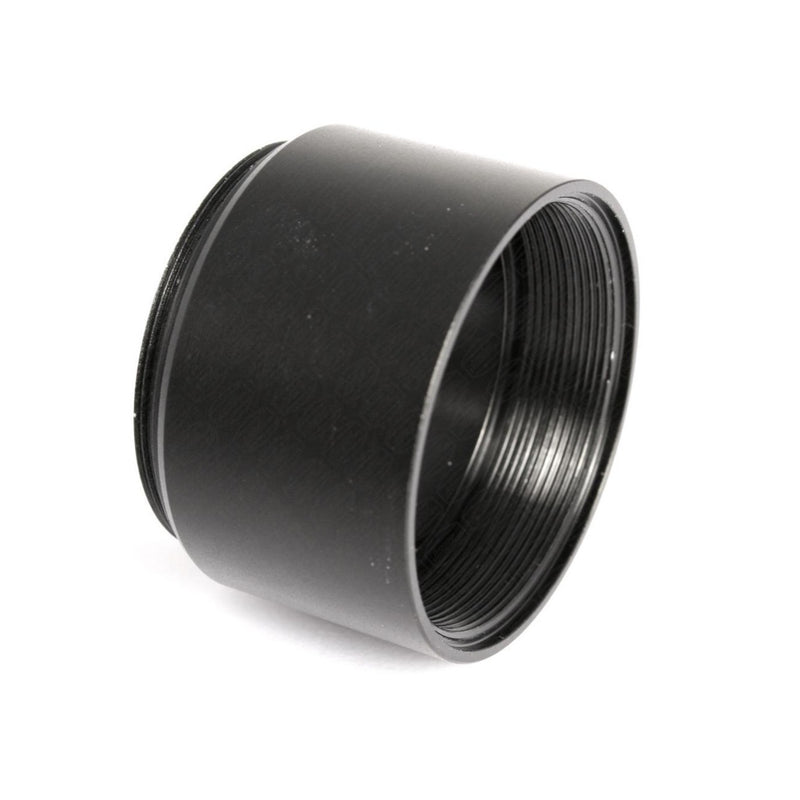

Baader 1¼" - 31.8mm nosepiece extension with 1¼" filter thread on both sides (T-2 part #05)

Baader 1¼" - 31.8mm nosepiece extension with 1¼" filter thread on both sides (T-2 part #05)

by Baader Planetarium
SKU T2-05 (Baader #1905130)
$23.00 - $23.00
$23.00
$23.00 - $23.00
$23.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • There is often a problem with off-axis systems or folding mirror attachments, where the receptacles of normal eyepieces is just 1-2cm too short to be able to adjust the sharpness level properly.
  • Optical path length 18.5mm
  • 1¼" filter thread on both sides and can be screwed into almost every 1¼" eyepiece.
  • The inner dimensions are prepared for holding the lenses of our glass path correctors 1:1.25 and 1:1.7

Learn more about THE BAADER ASTRO T-2 SYSTEM™

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 1905130
EAN CODE 4047825015136
WEIGHT (NETTO) 0.015
OPTICAL LENGTH (MM) 18,5
T-2 PART # 05
INNER DIAMETER / CLEAR APERTURE (MM) 25
OUTER DIAMETER 31,75 (1¼")
INNER CONNECTION (LENS SIDED) Thread, M28,5
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M28,5
COMPATIBLE BRANDS Baader Planetarium
TYPE OF ADAPTER Extension, Filter holder
Downloads

Astro T-2 System Connections Overview

Baader Astro T-2 System™ Parts list
