Baader T-2 adjustment/spacer-rings

Name: Baader T-2 adjustment/spacer-rings
Brand: Baader Planetarium
SKU: T2RING (Baader #2458102)
Price: 17.0 USD
Availability: InStock

by Baader Planetarium

SKU T2RING (Baader #2458102)

$17.00 - $17.00

$17.00

$17.00 - $17.00

$17.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

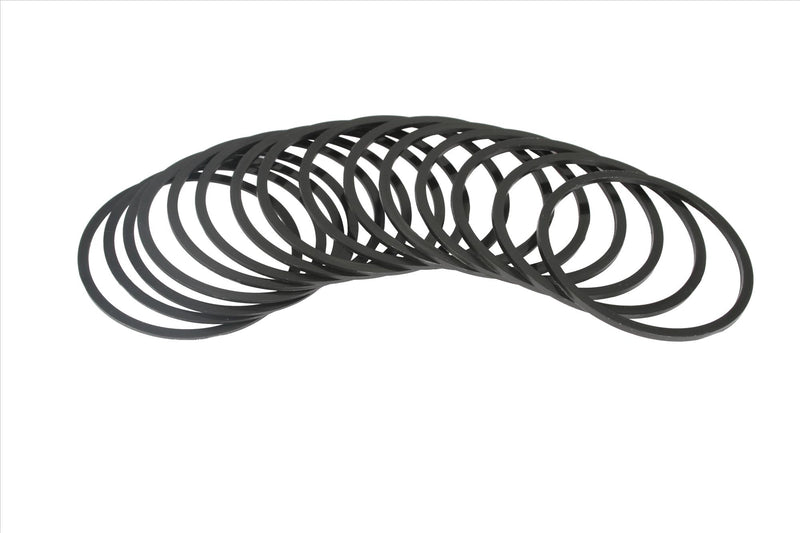

Altogether 15 pc - in 5 sizes, three rings per size (thickness 0.6/0.8/1.0/1.2/1.4mm)
Well suited to tune the rotary position of all kinds of T-2 accessories in approx 90° increments, to move locking screws of eyepiece holders into a comfortable position asf.
Also helps to prevent binding when used as spacer between two metal surfaces connected w. T-2 thread

Learn more about THE BAADER ASTRO T-2 SYSTEM™

Specifications

MANUFACTURER	Baader Planetarium
SKU (#)	2458102
EAN CODE	4047825010230
WEIGHT (NETTO)	0.009
OPTICAL LENGTH (MM)	0,6 / 0,8 / 1,0 / 1,2 / 1,4
USAGE	to adjust the end-rotating-position of all T-2 accessories in approx. 90° steps
INNER DIAMETER / CLEAR APERTURE (MM)	42 (T-2)
OUTER DIAMETER	46
INNER CONNECTION (LENS SIDED)	T-2 (M42 x 0,75)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED)	T-2 (M42 x 0,75)
COMPATIBLE BRANDS	Astro T-2, Baader Planetarium
TYPE OF ADAPTER	Extension

Downloads

Baader T-2 adjustment/spacer-rings
