Baader T-2 Conversion Ring (T-2 part #34)

Baader T-2 Conversion Ring (T-2 part #34)

by Baader Planetarium
SKU T2-34 (Baader #2958110)
$35.00 - $35.00
$35.00
$35.00 - $35.00
$35.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Converts a T-2 external thread in a T-2 internal thread
  • Effective in combination with T-2 component # 26 as T-2 extension tube with 10mm optical path length
  • Knurled circumferential to protect against seizing
  • Works together with T-2 part #35 as detectable rotary device

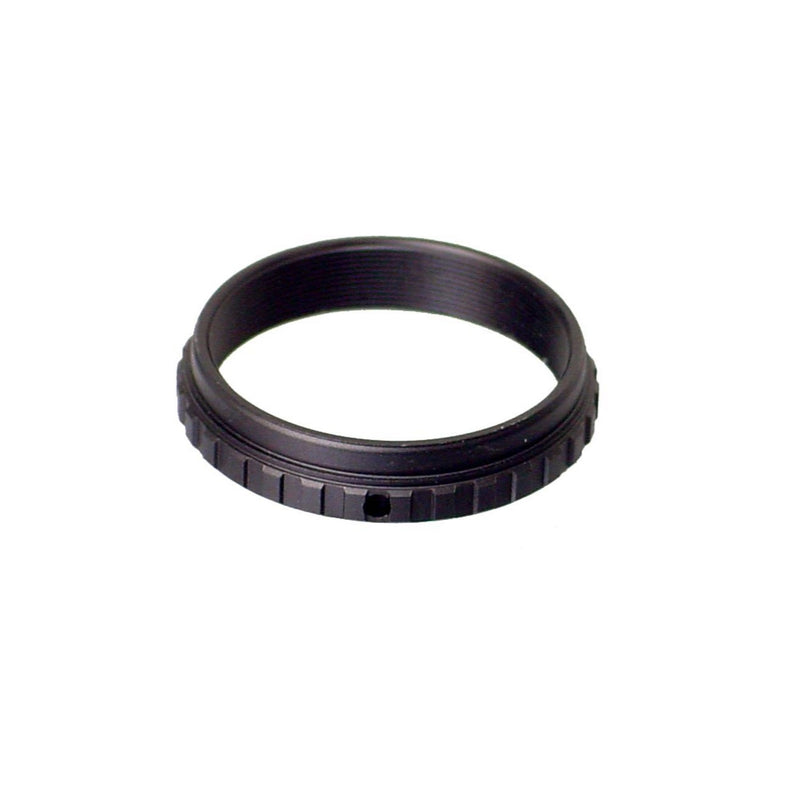

The #34 T-2 Conversion Ring is an internally threaded ring, which can be used to convert external T-2 threads into internal T-2 threads.  The #35 internal T-2 Locking Ring can be used with T-2 extension tubes to enable you to adjust and securely lock the rotation of the stack.  Simply thread the T2-35 onto the external T-2 threads of the component, adjust the rotation as desired, and lock the T2-35 against the component.

Learn more about THE BAADER ASTRO T-2 SYSTEM™

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2958110
EAN CODE 4047825007353
WEIGHT (NETTO) 0.012
OPTICAL LENGTH (MM) 10
T-2 PART # 34
USAGE changes a T-2 outer thread in T-2 inner thread
INNER DIAMETER / CLEAR APERTURE (MM) 41
OUTER DIAMETER 49
INNER CONNECTION (LENS SIDED) Thread, T-2 (M42 x 0,75)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, T-2 (M42 x 0,75)
COMPATIBLE BRANDS Astro T-2, Baader Planetarium
TYPE OF ADAPTER Switcher ring
Downloads

Astro T-2 System Connections Overview

Baader Astro T-2 System™ Parts list
