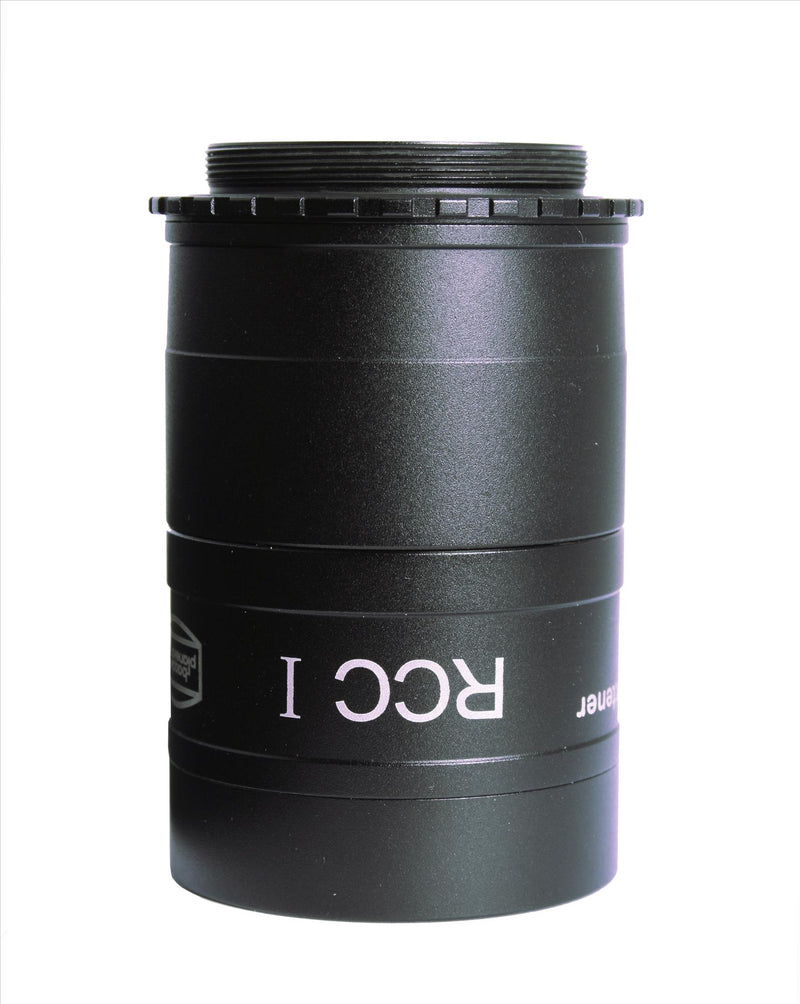

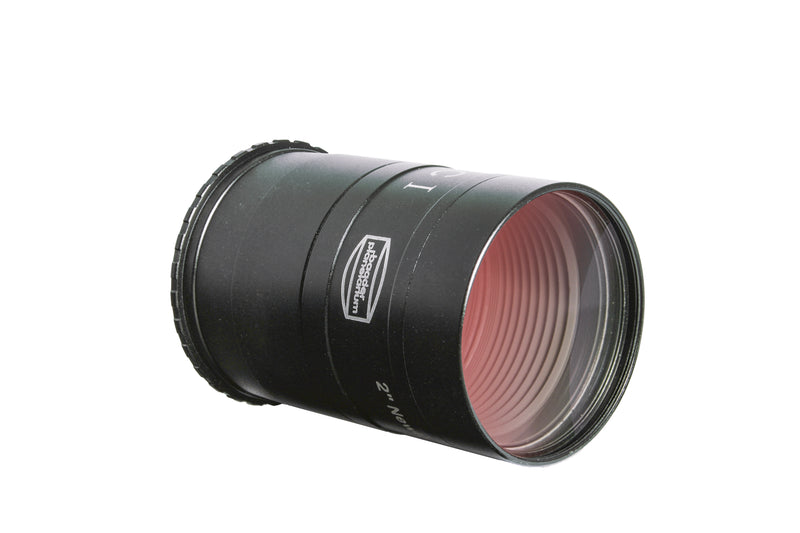

RCC I, Rowe Coma Corrector

SKU RCC-I (Baader #2956800)
Original price $219.00 - Original price $219.00
Original price
$219.00 - $219.00
Current price $219.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

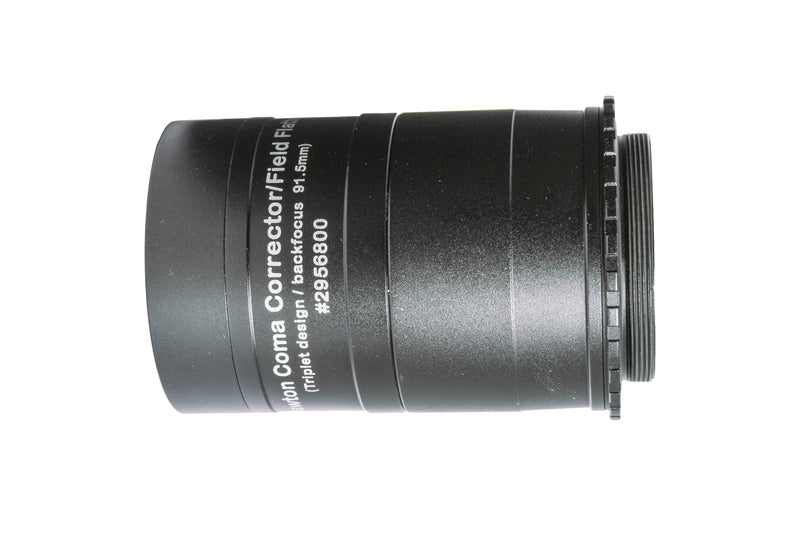

  • The RCC I (Rowe Coma Corrector) is a Coma Corrector from Dave Rowe with Triplet Lense design for f/4 Newtons
  • The RCC works from f/3.5 to f/6 - it is perfect on f/4
  • Coma Corrector with backfocus 91,5mm
  • reproduction scale is 1:1 - in contrast to many other coma correctors, the RCC is no Barlow lens which rely on a magnification to make the larger back-focus to the sensor possible
  • The RCC is the only coma corrector which gives you enough back-focus for filter wheels or other accessories without changing the focal ratio

The Baader Planetarium RCC-I (Rowe Coma Corrector) is designed specifically to correct Coma in fast Newtonian imaging systems. The RCC is the ideal match for today's Digital SLRs and CCD Cameras.

  • Long Back Focus: The RCC-I triplet optical design has been optimized to work at a large 91.5mm back-focus distance, enabling the use of Off-Axis Guiders, Adaptive Optics, and Filter Wheels. The RCC even allows users of DSLRs to incorporate off-axis guiding with the Baader RCC Off-Axis Guider.
  • No magnification increase: Unlike most other coma correctors, the RCC-I does not impart a barlow effect - it works at 1:1, with no loss in imaging speed or reduction in field size.
  • Fast Imaging Speeds: The RCC-I has been optimized for Newtonians with focal ratios from f/3.5 to f/6 (nominally designed for f/4).
  • Ease of Focus: Addition of the RCC-I into the optical train extends the focal point slightly (approximately 5mm, in an f/4 system). This important attribute ensures that your system will be able to reach focus without needing to shift the primary mirror or increase the size of the secondary mirror ( * IMPORTANT; this assumes your system will already reach focus without the RCC).

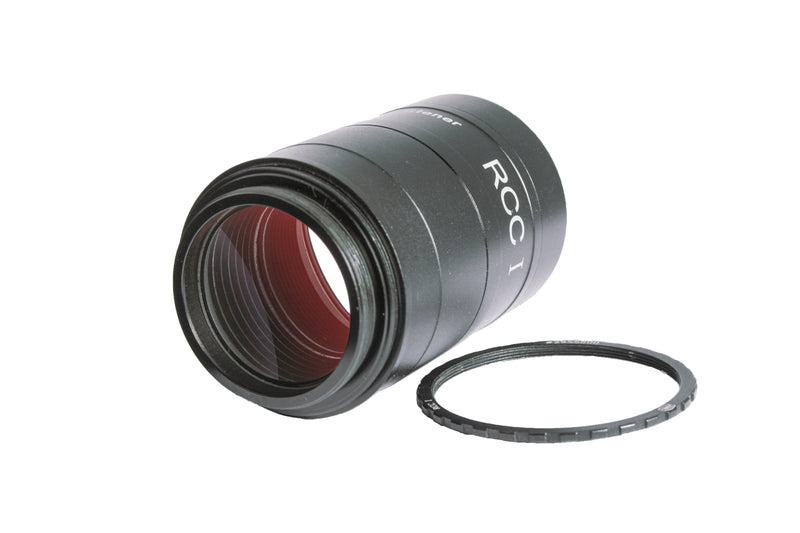

The RCC-I inserts into 2" focusers and has external T-threads on the camera side for attachment to any other T-threaded accessory. The RCC-I also includes a removable stop flange. Removal of this flange allows the RCC to be fully inserted into 2" focusers. The RCC is also threaded for standard 2"/48mm filters.

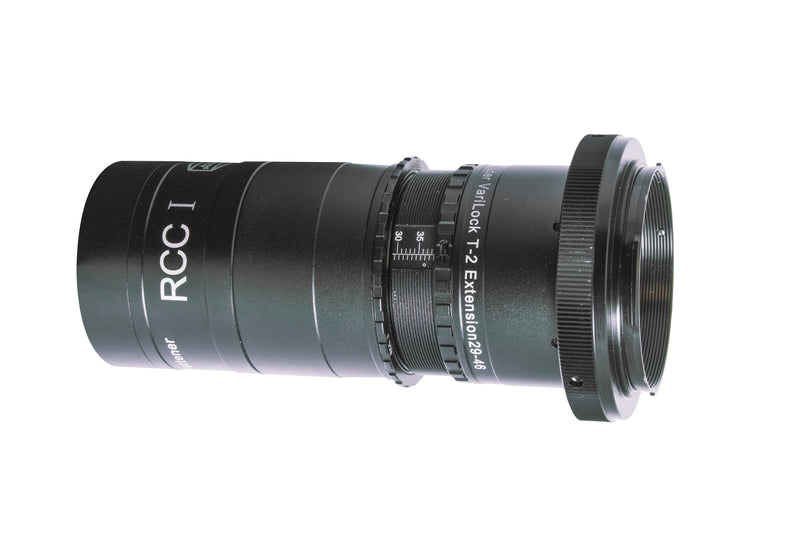

The RCC is designed for a nominal 91.5mm distance from the mounting flange to the image plane (55mm is the standard dimension for all SLRs, measured from the front of their T-adapter to their image plane). The 91.5mm distance needs to be held to within +/-3mm for best image quality. We sell a range of adapters and extension tubes that can be used to configure practically any imaging system to meet the 91.5mm requirement (see Astro T-2 System). In particular, we recommend the Baader VariLock Variable Extension Tubes.

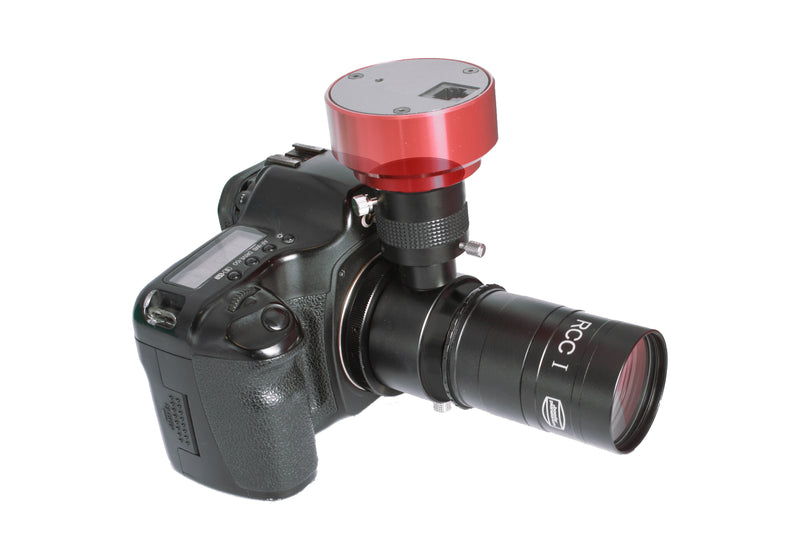

Users of DSLRs will find the Baader RCC Off-Axis Guider to be the perfect compliment to the RCC-I. It is designed to have the proper spacing needed to meet the 91.5mm requirement, and offers precise axial and radial adjustments for ease of locating guidestars.

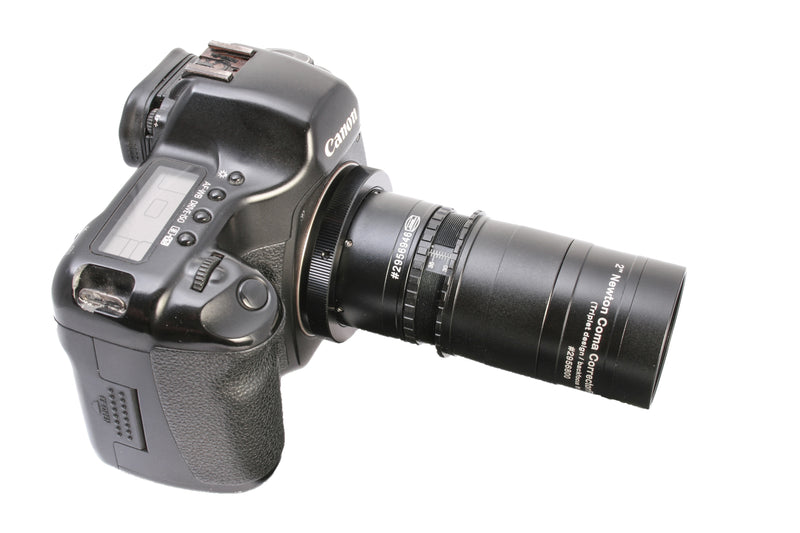

* Back Focus Example: assume that you have a DSLR and the matching Baader RCC off-axis guider. That combination of equipment has a combined path length of 91.5mm (which is intentionally the back-focus spec of the RCC). If you attach a plain 2” nosepiece to the front of the Off Axis Guider + DSLR and then insert them into the 2” focuser of a Newtonian, your scope would need at least 91.5mm of back focus in order to reach focus on the chip of the DSLR. Now, remove the 2” nosepiece and replace it with the RCC-I. Re-insert the assembly fully into the focuser until the off axis guider seats against the focuser (the RCC inserts fully into the focuser since it is 2” OD), focus the camera, and you should find that the focuser would be racked out about 5mm farther than it was with just that plain 2” nosepiece.

The weight of the RCC by itself is 142gm (5oz).

Technical Data - Overview

  • Reproduction scale: 1:1
  • Recommended focal ratios: f/3.5 - f/6 (optimised for f/4)
  • Focal position (perfect distance to the sensor): 91.5 mm measured from the T-2 thread / 94.5 mm from the M48 thread
  • Inner connection (lens side): 2" nosepiece with M48_i filter thread for 2" eyepiece filters
  • Outer connection (telescope side): T2 (M 42 x 0.75_a; without the stop ring M 48_a)
  • Longest overall depth: 73 mm / without the stop ring 75 mm / without the stop ring and RCC Off Axis Guider 84mm
  • Diameter of the housing: 50.8mm/2"
EAN CODE 4047825021496
MANUFACTURER Baader Planetarium
SKU (#) 2956800
AR-COATING Phantom Coating® Group
WORKING RANGE f/3.5 – f/6
