Description
- Allows mounting of Baader 2" filters
- Needs Hyperion DT-rings #2958028 - 2458062 and additional Stepper Rings M67 up to M82
- All Baader 2" filters in version M48 thread can be customised with specific extension tubes on almost all DSRL lenses.
Adaptation of 2 inch filters onto DSLR camera-lenses
Many astronomical filter-designs are perfectly suited for use with a DSLR-camera lens. Here we explain how to do this.
Our largest cell mounted filters measure 2" in mechanical diameter (having a metric thread of M48). The clear aperture is 46 mm.

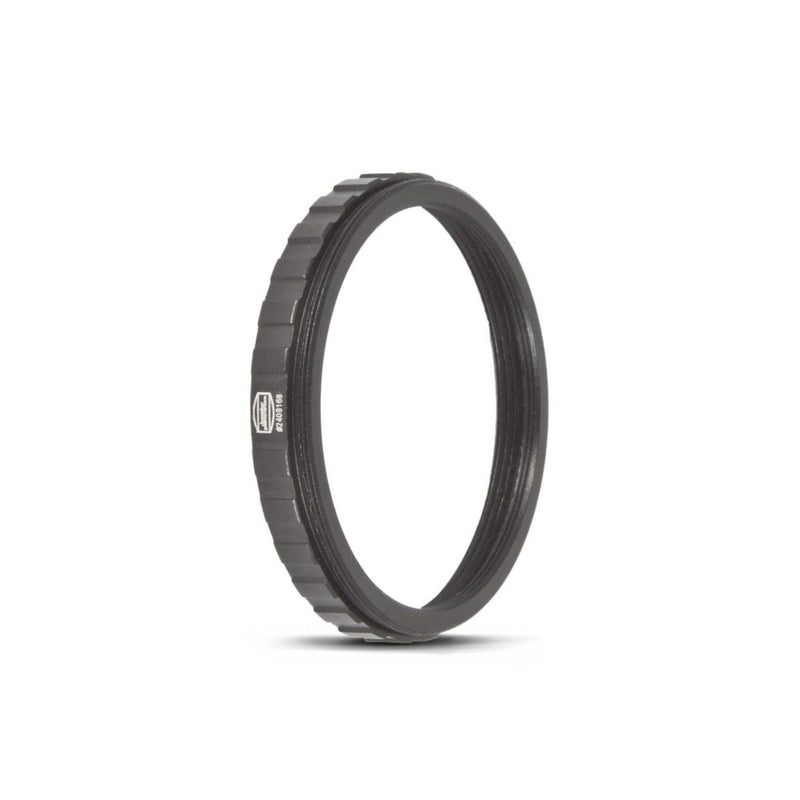

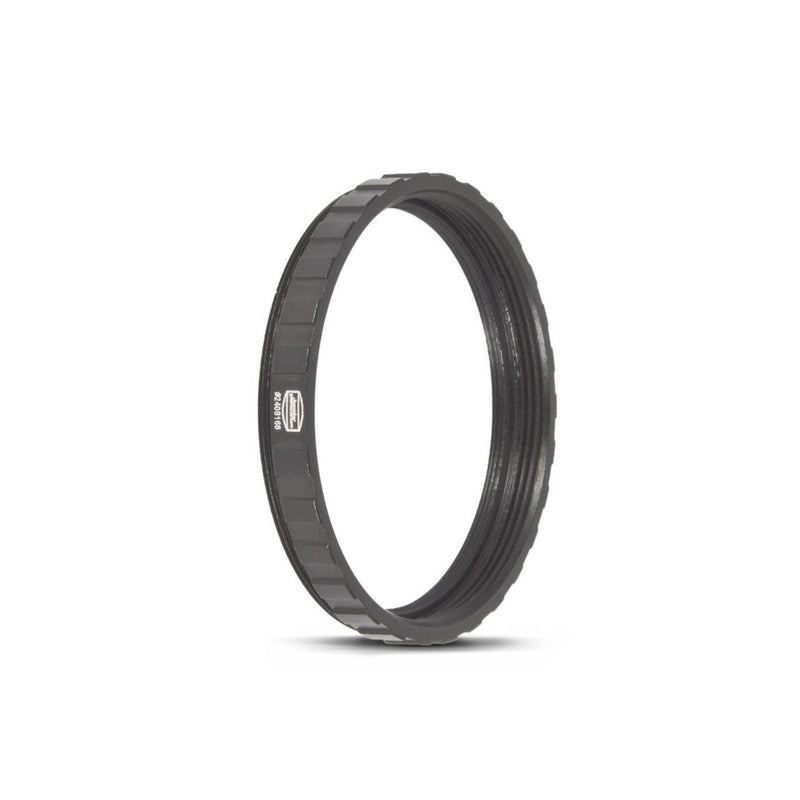

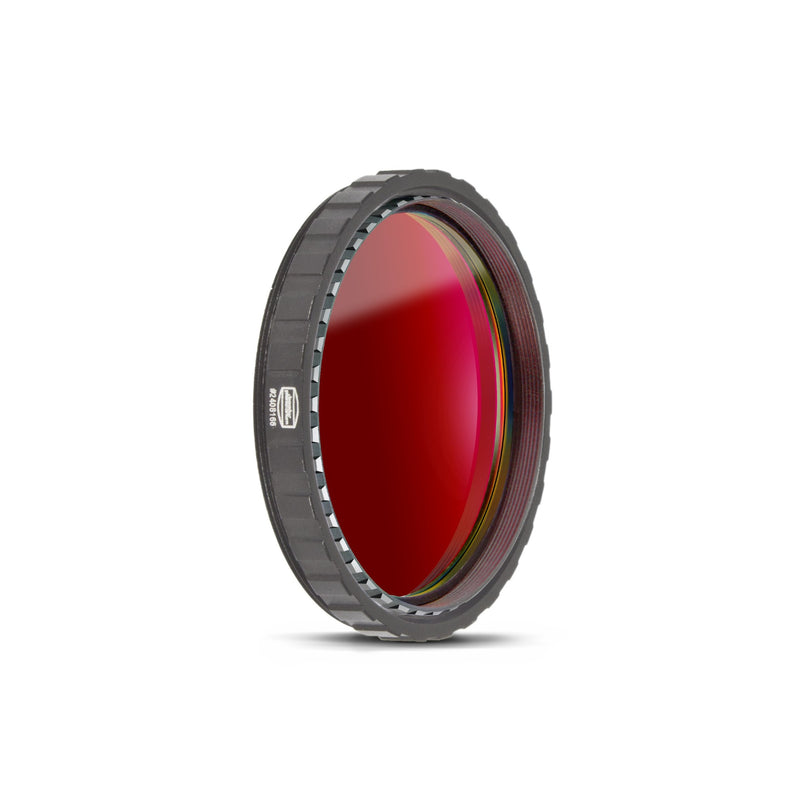

In order to ease the adaptation of our 2" filters onto most camera lenses, we produce a general-adapter, to convert from the ASTRO-2" Standard (M48) into a more common photo-standard of SP54 mm. This ring is named: DSLR 2" FilterHolder M48/SP54 (item #2408166).
Individual lens adapters for most camera-lens threads are available to fit onto this filter holder. Larger lens threads may be utilized by adding another 62 mm stepper-ring.
Lens Adapter Ring: SP 54/M46 (#2958046) / SP 54/M49 (#2958049) / SP 54/M52 (#2958052) / SP 54/M55 (#2958055) / SP 54/M58 (#2958058) / SP 54/M62 (#2958062).
Step-up Rings (for cameras lenses with thread larger than M62): M62/M67 (#2968067), M62/M72(#2968072), M62/M77(#2968077), M62/M82(#2968082).M62/M67 (# 296 8067), M62/M72 (# 296 8072), M62/M77 (# 296 8077), M62/M82 (# 296 8082)

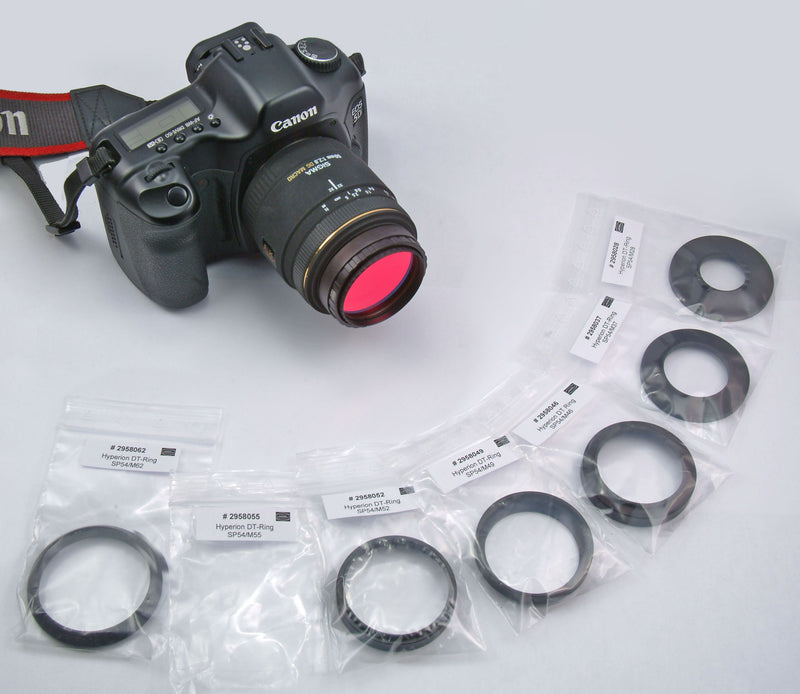

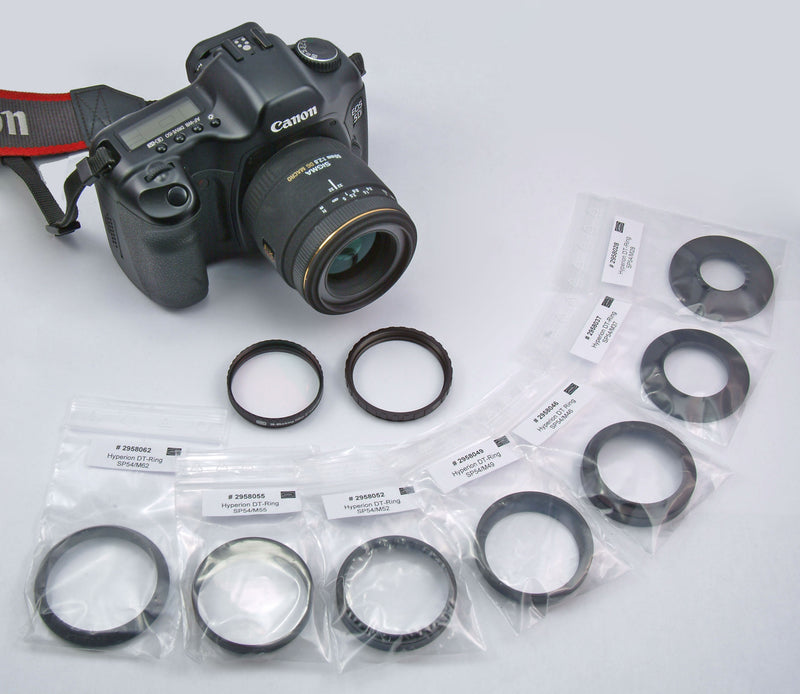

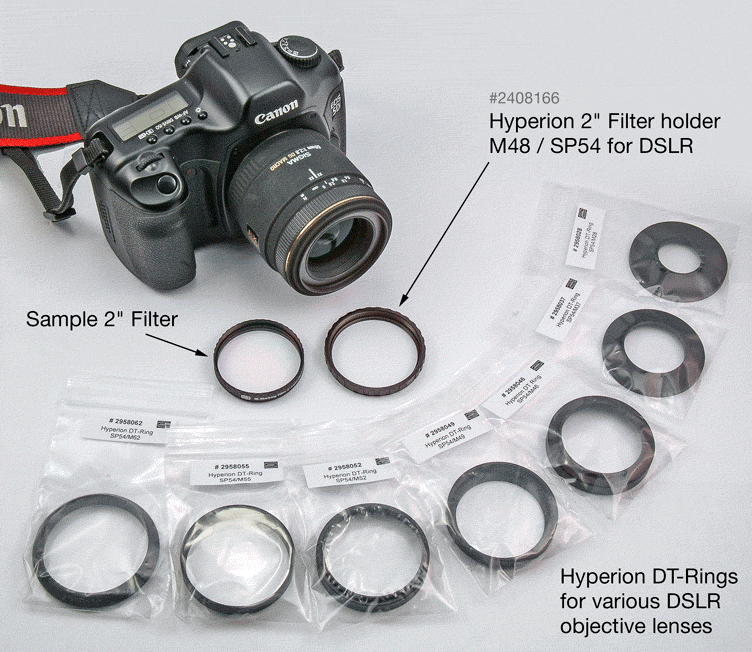

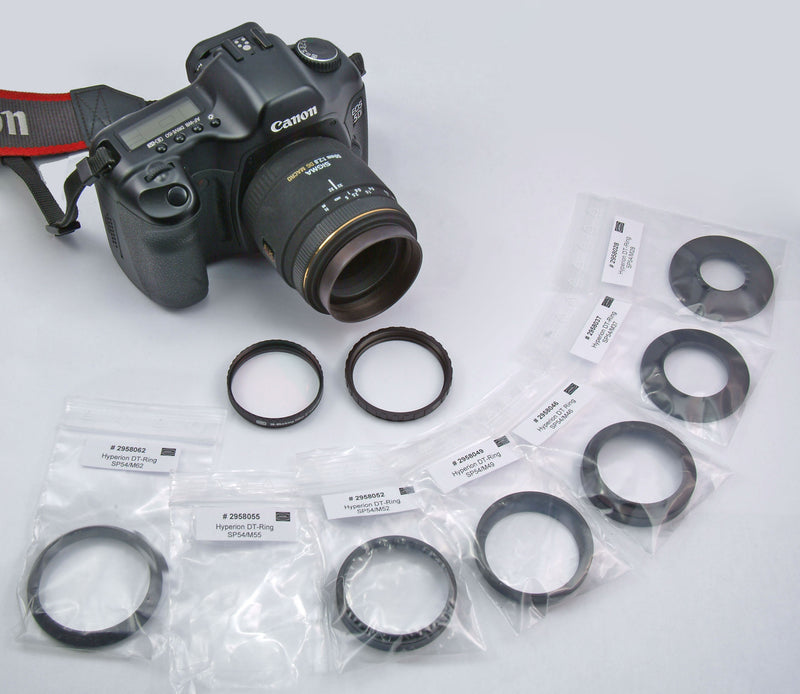

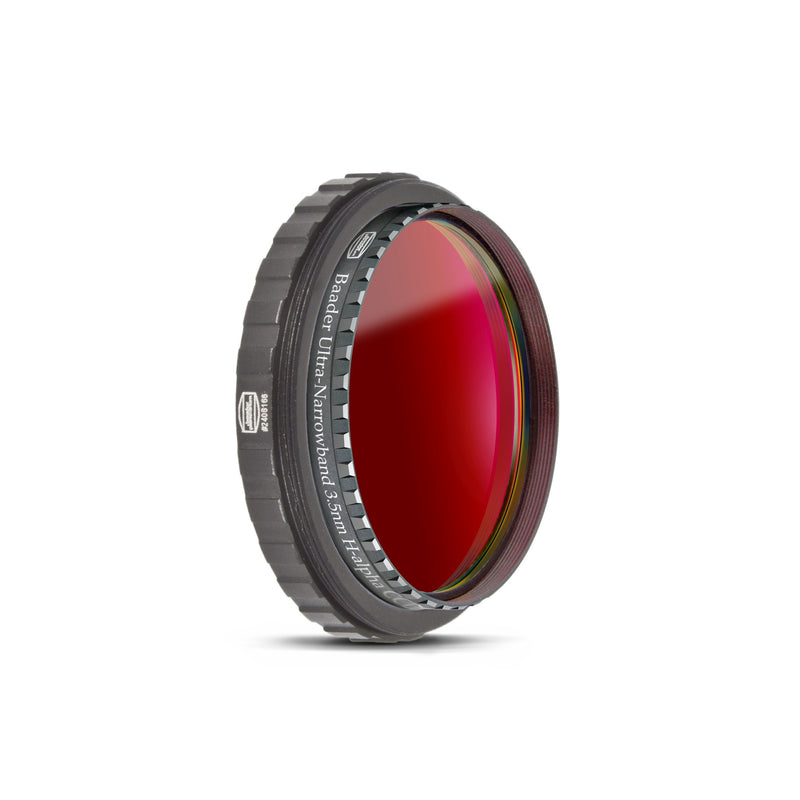

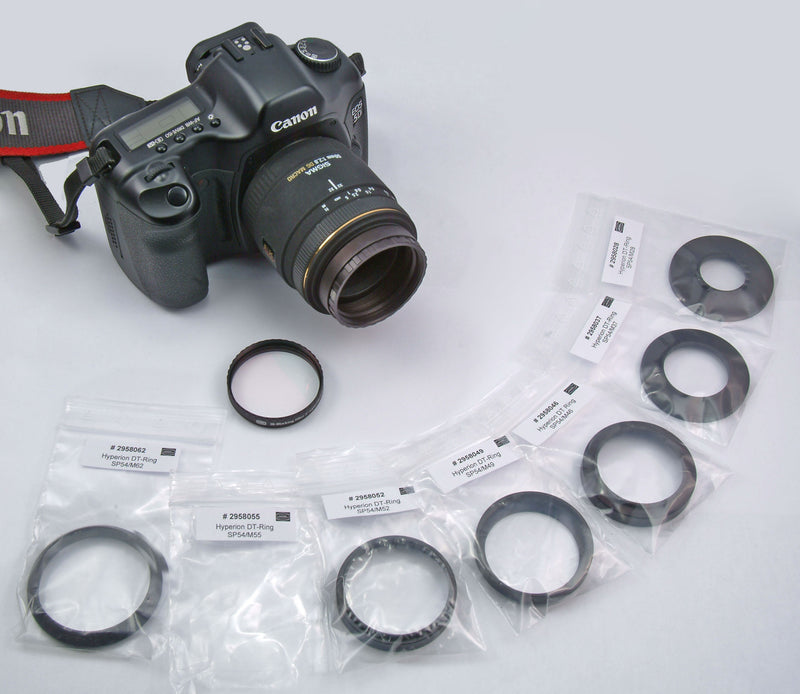

The animation show how it works: The lens thread adapter (in this case M62 or M55 or M49) fastens onto the camera lens, next comes the Filter-Holder DSLR-2 (# 2408166) and lastly any 2" (M48) Baader-filter will thread onto the assembly.
Specifications
| MANUFACTURER |
Baader Planetarium |
| SKU (#) |
2408166 |
| EAN CODE |
4047825012678 |
| WEIGHT (KG) |
0.01 |
| OPTICAL LENGTH (MM) |
5 |
| USAGE |
to mount our 2" filters on any DSLR camera lens |
| INNER DIAMETER / CLEAR APERTURE (MM) |
47 |
| OUTER DIAMETER |
56 |
| INNER CONNECTION (LENS SIDED) |
Thread, 2" (50,8mm) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) |
Thread, M48 |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) |
Thread, SP54 |
| ADAPTABLE TO |
DSLR camera-lenses |
| COMPATIBLE BRANDS |
Baader Planetarium |
| TYPE OF ADAPTER |
Expanding piece, Filter holder |
