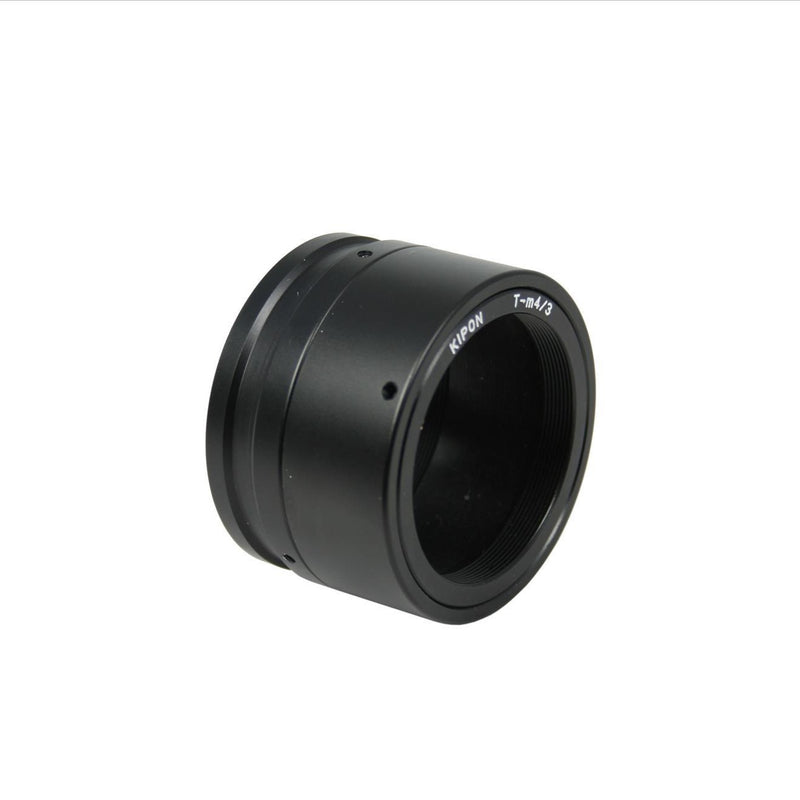

Baader T-Ring Micro Four Thirds (m/3) to T-2 + 19mm expansion

Baader T-Ring Micro Four Thirds (m/3) to T-2 + 19mm expansion

by Baader Planetarium
SKU TRING-M4/3 (Baader #2408330)
$32.00 - $32.00
$32.00
$32.00 - $32.00
$32.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Baader T-Ring for adapting compact cameras with Micro 4/3 onto the Astro T-2 system
  • Allows the connection of T-2 lenses with 55mm back focus

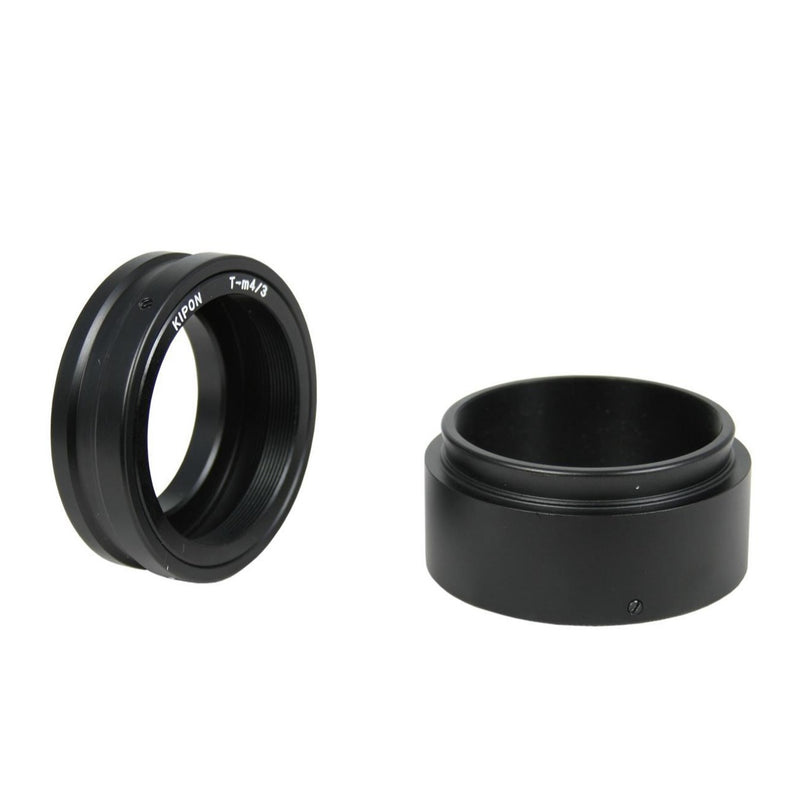

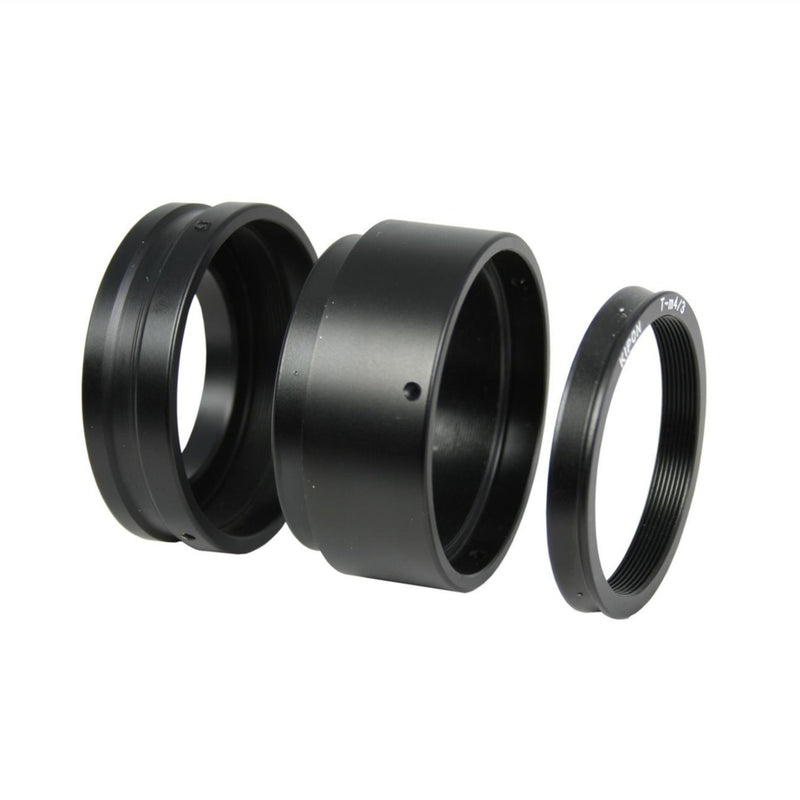

  • The built in 19mm extension can be removed in order to shorten the adapter
  • Without the extension compact cameras are only 36mm from the T-2 thread face
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2408330
EAN CODE 4047825026620
WEIGHT (NETTO) 0.031
OPTICAL LENGTH (MM) 35
USAGE to connect (D)SLR cameras to the Astro T-2 thread system
CAMERA ADAPTABLE Micro 4/3
INNER DIAMETER / CLEAR APERTURE (MM) 36
OUTER DIAMETER 54,5
INNER CONNECTION (LENS SIDED) Thread, T-2 (M42 x 0,75)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Bayonet
COMPATIBLE BRANDS Astro T-2, Baader Planetarium, Other
TYPE OF ADAPTER Camera Adapter, Extension
