Baader Hyperion SP54/SP54 Extension Ring

SKU HEXT54 (Baader #2958090)
Original price $21.00 - Original price $21.00
Original price
$21.00
$21.00 - $21.00
Current price $21.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

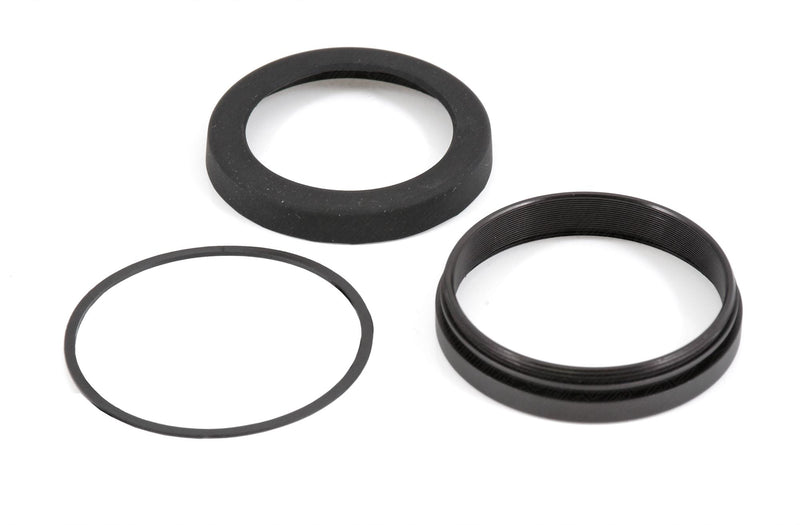

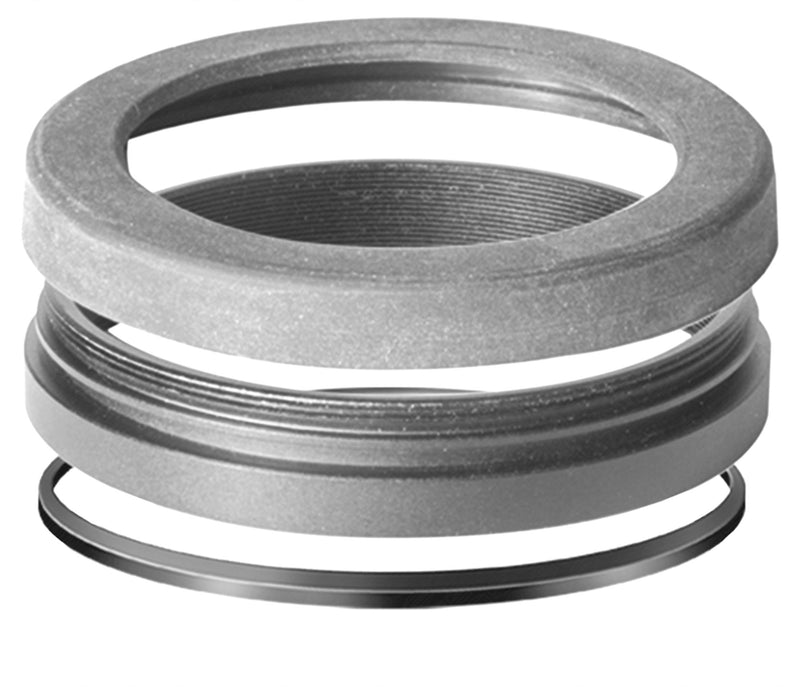

  • Extension Ring with 11mm optical path length, with threaded protective flap for the SP54 external thread
  • Required for the connection of the DT-rings SP54 / M28 and SP54 / M37
  • The Hyperion DT-rings are optimized for the shortest distance between eyepiece lens and digital camera lens. Only in this way is a vignetting image illumination possible
  • 2 adjusting rings for SP54 thread are free with the purchase at each Hyperion DT-ring.
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2958090
EAN CODE 4047825007360
WEIGHT (KG) 0.015
OPTICAL LENGTH (MM) 11
USAGE for the DSLR 2" filter holder and direct connection on all Hyperion 68° eyepieces
INNER DIAMETER / CLEAR APERTURE (MM) 50
OUTER DIAMETER 57
OUTER CONNECTION (LENS SIDED) Thread, SP54
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, SP54
ADAPTABLE TO DTAdapter II&III and Hyperion eyepieces. Fits also onto Morpheus® 76° eyepieces (in combination with #2408040 and #2958080)
COMPATIBLE BRANDS Baader Planetarium
TYPE OF ADAPTER Extension
Downloads

Hyperion eyepieces application examples

Digiscoping - camera adaptations for afocal photography and eyepiece projection
