Baader Hyperion Zoom M43 / SP54 Adapter

Baader Hyperion Zoom M43 / SP54 Adapter

by Baader Planetarium
SKU HTA43/54 (Baader #2958086)
$40.00 - $40.00
$40.00
$40.00 - $40.00
$40.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

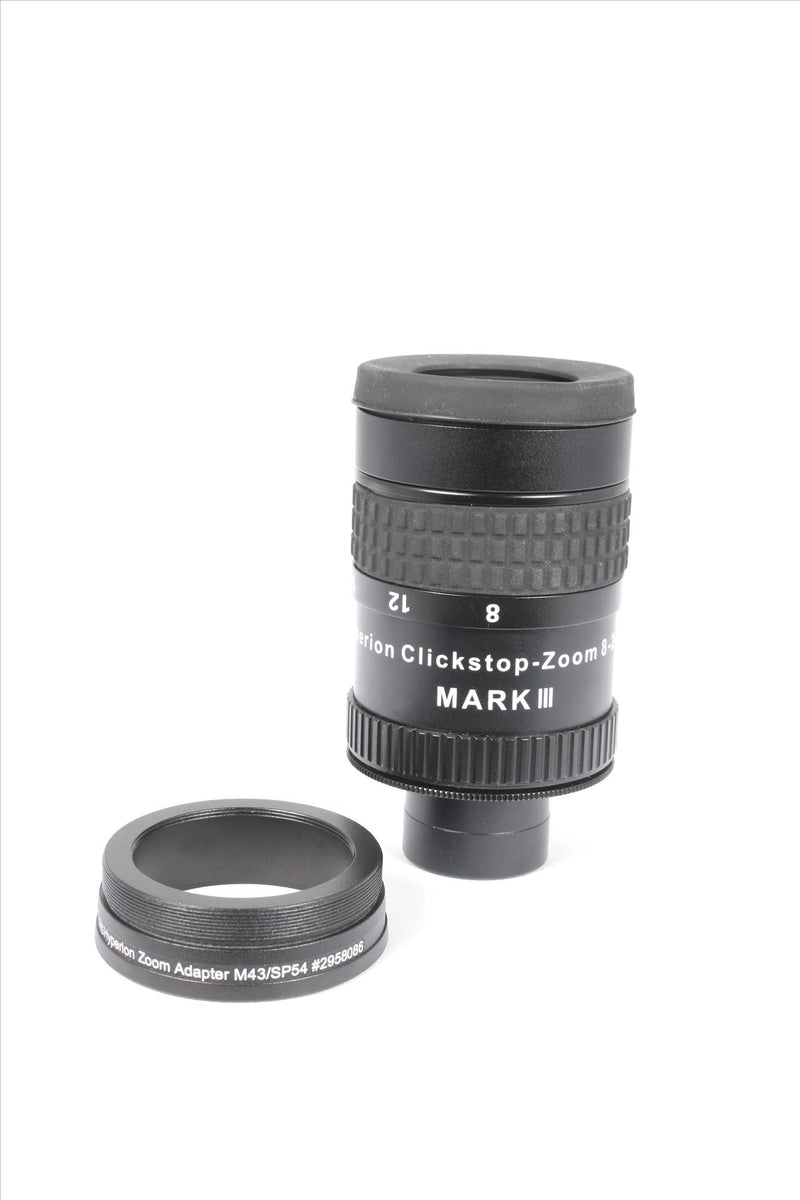

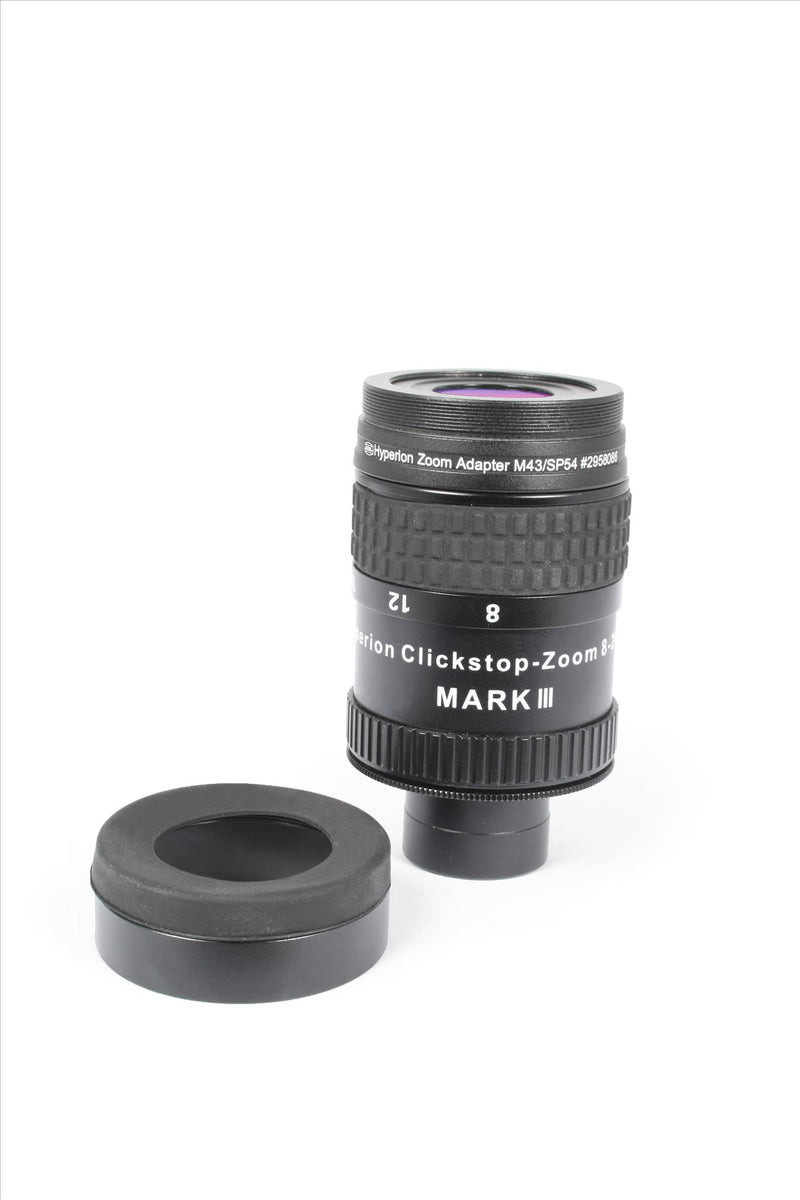

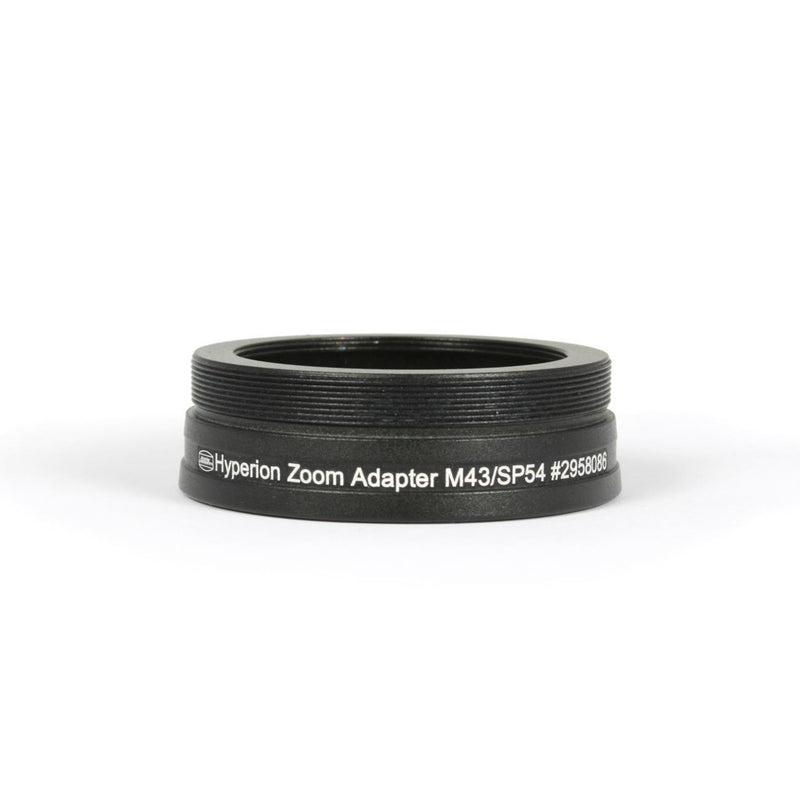

  • Hyperion Zoom Adapter for M43 internal thread to SP54 external thread

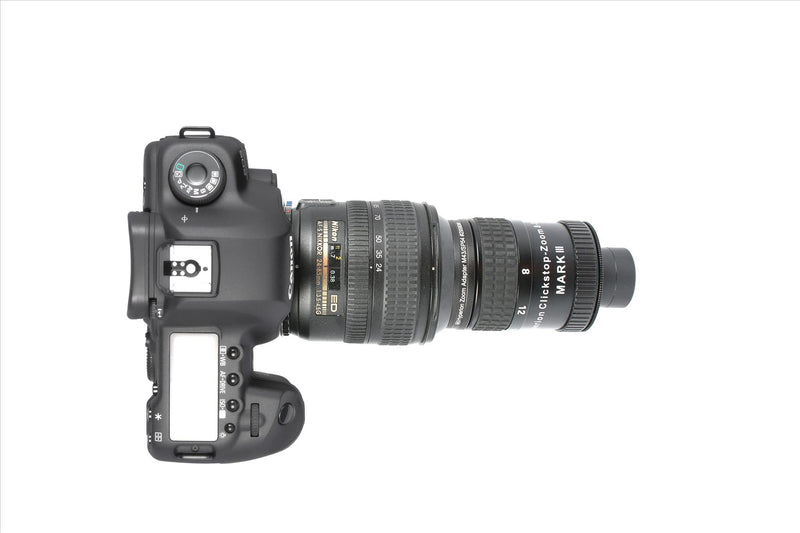

  • This adapter allows the connection of all standard camera lenses with filter thread to the Hyperion Zoom 8-24mm Mark III (discontinued) and the Baader Hyperion Universal Zoom Mark IV, 8-24mm eyepiece (1¼" / 2") (#2454826), in order to use the eyepiece in conjunction with the camera lens as a so-called "afocal projection system"
  • The connection rings from this system are referred to as "Hyperion DT rings". All you need is the matching SP54 adapter for your filter thread. Adapters are available for most filter thread sizes.
  • Not suitable for Morpheus® 76 ° eyepieces. Morpheus version now available: Baader Morpheus® M43 / SP54 Adapter (#2954251)
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2958086
EAN CODE 4047825026804
WEIGHT (NETTO) 0.04
INNER DIAMETER / CLEAR APERTURE (MM) 42
OUTER DIAMETER 57
OUTER CONNECTION (LENS SIDED) Thread, SP54
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M43
ADAPTABLE TO Hyperion Zoom Mark III. Not suitable for Morpheus® 76° eyepieces (Morpheus-Version under preparation)
COMPATIBLE BRANDS Baader Planetarium, Zeiss
TYPE OF ADAPTER Expanding piece
Downloads

Digiscoping - camera adaptations for afocal photography and eyepiece projection
