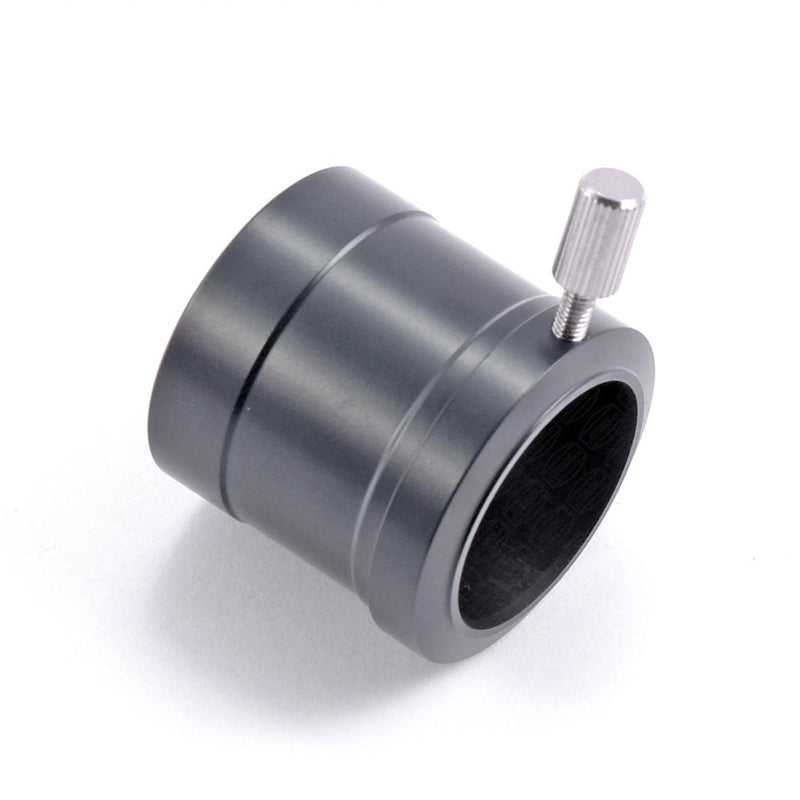

Baader Reducer 1¼" / 24,5mmwith filter holder (T-2 part #10)

Baader Reducer 1¼" / 24,5mmwith filter holder (T-2 part #10)

by Baader Planetarium
SKU T2-10 (Baader #2408191)
$48.00 - $48.00
$48.00
$48.00 - $48.00
$48.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Eyepiece barrel reducer, 1¼ "to 0.965" (24.5mm)
  • Threaded M28.5 for 1¼" filters
  • For using 0.965" (24.5mm) eyepieces in 1¼ "eyepiece holders and focusers
  • 6.5mm optical path length

Some of the world's finest planetary oculars are only available as .965" versions. This reducer will allow you to upsize your .965" eyepieces and accessories to the 1¼” standard., and to make use of 1¼” filters! Our reducer incorporates filter threads, and is the only .965 reducer we have ever seen that includes them! Now, you can finally make use of nebula and colored filters with your quality .965" eyepieces. Why it took this long to finally get this feature to market, we'll never know...

The accurate machining is especially useful for users of popular 1¼” Bino-Viewers. Now, you can make use of the numerous high quality .965" eyepieces (Takahashi/Pentax/Nikon/Zeiss), minimizing misalignments caused by decentering. A broad recessed retention groove adds a measure of safety, and the nickel plated brass lock screw has been machined with a radiussed point, in order to minimize marks on your fine eyepieces.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2408195
EAN CODE 4047825012623
WEIGHT (NETTO) 0.065
OPTICAL LENGTH (MM) 29 – 35,5
CLAMPING SYSTEM Screw clamps
T-2 PART # 11
USAGE holds 1¼" eyepieces on Vixen M36,4 threads
SCREW TYPE 3x M3 clamping screws and M3 Rotations-Feststellschraube
INNER DIAMETER / CLEAR APERTURE (MM) 31,75 (1¼")
OUTER DIAMETER 47
OUTER CONNECTION (LENS SIDED) Thread, 1 3/8"
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼"
COMPATIBLE BRANDS Astro T-2, Baader Planetarium, Takahashi, Vixen, Other
TYPE OF ADAPTER Eyepiece Clamp, Reducing piece
