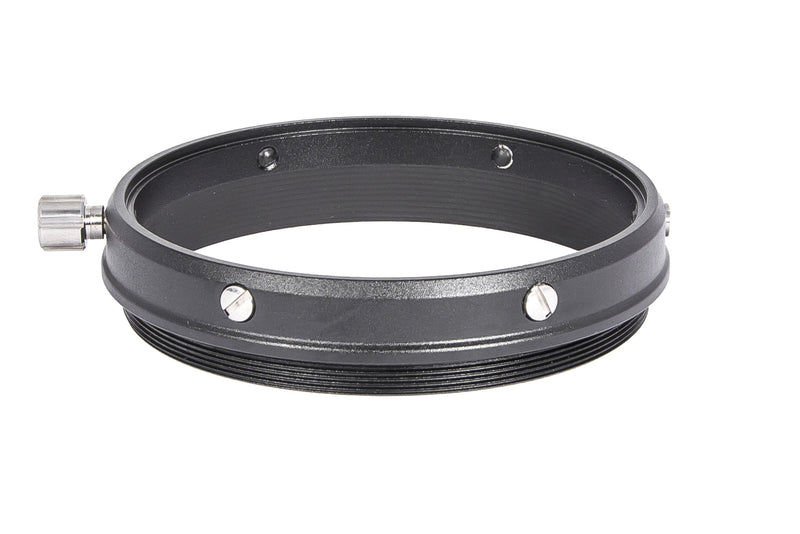

RT-Adapter M93 x 1 Diamond Steeltrack®

SKU BDS-AD93 (Baader #2957281)
Original price $147.00 - Original price $147.00
Original price
$147.00
$147.00 - $147.00
Current price $147.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • To connect Refractors with M93x1 inner threads
  • Only suitable for BDS-RT Diamond Steeltrack® for Refractors
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2957281
OPTICAL LENGTH (MM) 5
CLAMPING SYSTEM Dovetail clamp
SCREW TYPE Metal screws with Delrin pressure piece
INNER DIAMETER / CLEAR APERTURE (MM) 88
OUTER DIAMETER 100
OUTER CONNECTION (LENS SIDED) Thread, M93
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Dovetail ring clamp, S88
ADAPTABLE TO BDS-RT Diamond Steeltrack for Refractors
TYPE OF ADAPTER Extension
