Baader Heavy Duty M48 Quick Changing System

SKU M48-QCS (Baader #2958593)
Original price $129.00 - Original price $129.00
Original price
$129.00
$129.00 - $129.00
Current price $129.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Heavy Duty M48 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.
  • Optical path length 15mm
  • Consists of Baader M48 Heavy Duty Quick Changer (#2958590) and Baader M48 Quick Changing Ring (#2958595) with 50mm dovetail
  • Quick-change and rotating device with maximum load capacity

Baader Heavy Duty M48 Quick Changing System

A helpful addition to the M48 system is the Heavy Duty M48 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.

M48 Quick Changing Ring

The quick changing ring made of high-quality steel has an M48 external thread on one side and a 50mm dovetail on the other. The Baader M48 Quick Changing Ring (#2958595) is also available separately.

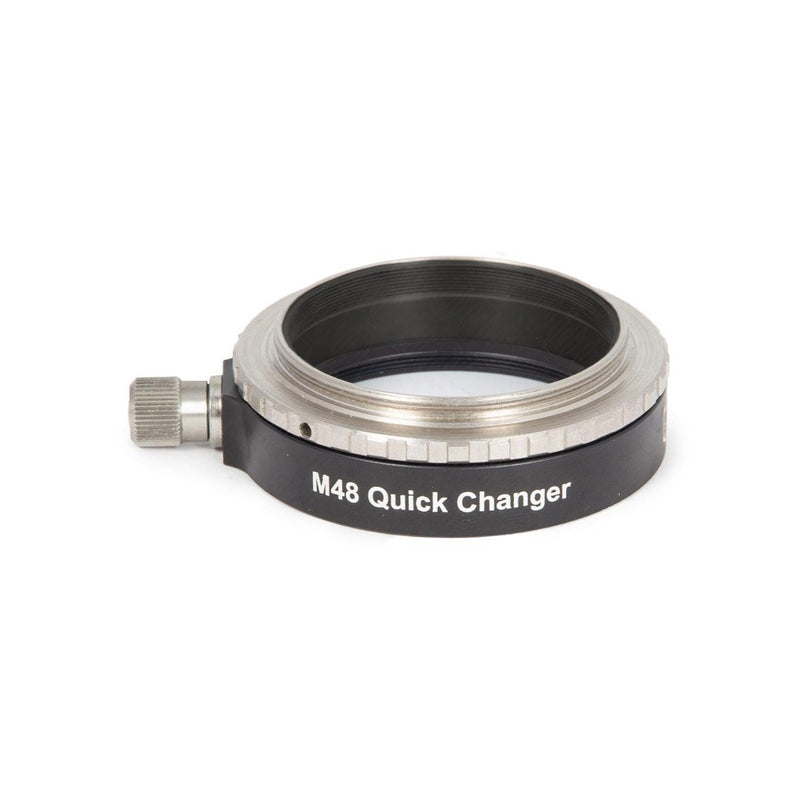

M48 Quick Changer

The Quick Changer has a built-in M48 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The Baader M48 Heavy Duty Quick Changer (#2958590) is also available separately.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2958593
EAN CODE 4047825048516
OPTICAL LENGTH (MM) 15
CLAMPING SYSTEM Dovetail clamp
SCREW TYPE Large clamping screw with brass thrust piece
INNER DIAMETER / CLEAR APERTURE (MM) 44 mm
OUTER DIAMETER 59 x 75mm
INNER CONNECTION (LENS SIDED) Thread, M48
OUTER CONNECTION (LENS SIDED) Dovetail ring, M48
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Dovetail ring clamp, M48
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, Dovetail ring, M48
COMPATIBLE BRANDS Astro T-2, Baader Planetarium
TYPE OF ADAPTER Quick Changer
