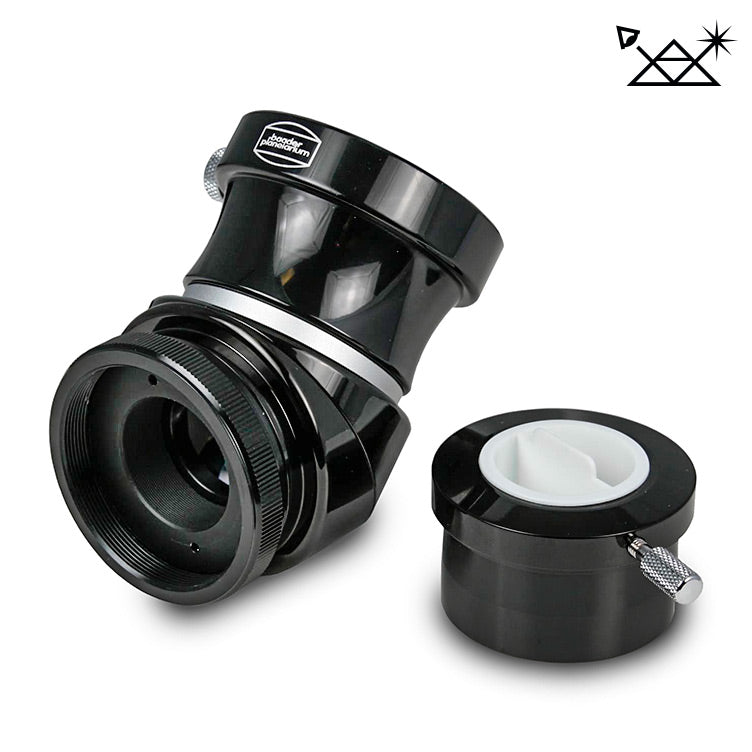

Baader 2" Amici-erecting-prism 45° with 2" SC-thread and 2"/1¼"-reducer

Baader 2" Amici-erecting-prism 45° with 2" SC-thread and 2"/1¼"-reducer

by Baader Planetarium
SKU AMICI-45-2 (Baader #2956151)
$239.00 - $239.00
$239.00
$239.00 - $239.00
$239.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • 2" SC-thread and 2"/1¼"-reducer
  • Direct attachment to Schmidt-Cassegrains
  • Correct image orientation
  • Excellent for terrestrial viewing
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2956151
WEIGHT (NETTO) 0.608
OPTICAL DESIGN Erecting Prism
INNER CONNECTION (LENS SIDED) Thread, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼", 2" (50,8mm)
REFLECTION SURFACE Total reflection
AR-COATING Multi-Coated (MC)
IMAGE ORIENTATION Erect image, Non-reversed
OPTICAL LENGTH (MM) 121mm with 2" barrel; with 1,25"-reducer additional 10mm
CLAMPING SYSTEM Dovetail clamp
DEFLECTION ANGLE 45°
INNER DIAMETER / CLEAR APERTURE (MM) 26
