Description

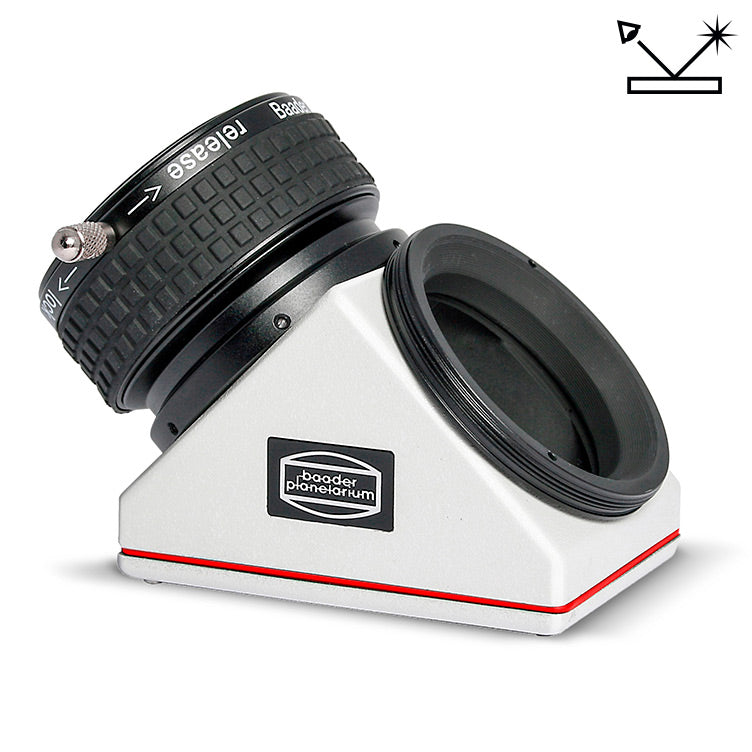

With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" Clicklock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" Clicklock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - After Coating!
Highlights
- Telescope side with Carl Zeiss M68 thread / optical length = 109 mm
- Scratch resistant hard coated mirror surface for safe cleaning, to remain scratch free even if subjected to harsh environment
- Mirror rejects deep UV and IR radiation, safe for solar viewing with all White-Light and H-alpha solar filters
- Baader 2" ClickLock clamp for ultrafast clamping action
- Clamps heavy accessories effortless, with fingertip action
- DC design as # 2956100: Instead of 2" Safety Kerf nosepiece it has a M68 thread, which makes it possible to mount the mirrors on our extensive range M68 with the largest possible passage on many telescopes
With their ground-breaking introduction several years ago of the all-dielectric 2" Maxbright star diagonal, Baader Planetarium brought mirror star diagonals into the 21st century. The new 2" Clicklock Star Diagonal takes this innovation another step further. Like its predecessor, the 2" Clicklock Star Diagonal uses proprietary Baader all-dielectric mirror coatings. The Baader coating process eliminates the Achilles Heel that has plagued other all-dielectric mirror coatings - normally the multi-layer coating results in high surface stresses that cause a star diagonal's mirror to warp as much as 1/2 wave, ruining the figure and distorting the optical wavefront. Baader's proprietary coating process maintains the 1/10 wave mirror surface accuracy - After Coating!
Baader's dielectric coatings deliver an amazingly high 99% photo-visual reflectivity along with an extremely hard durable surface. The ultra-hard mirror coatings will last lifetimes without losing reflectivity, and may be cleaned with normal care, without fear of scratches. The precision mirror is also oversized, and combines with the large ID nosepiece to pass the largest image cone possible in a 2" format.
The new 2" Clicklock non-marring eyepiece holder delivers the same acclaimed simplicity and security as its smaller 1.25" Clicklock cousin. With an effortless 20degree twist of the rubber knurled ring (which also includes a convenient fingertip lever) , the clicklock holder clamps 2" eyepieces so securely you can lift your scope with them. The unique action utilizes 3-point clamping which positively and accurately locks 2" eyepieces without any of the wobbling and misalignment that can occur with single point clamps.
The Baader 2" Clicklock Star Diagonal incorporates another unique feature. The 2" Clicklock Holder and 2" nosepiece can both be removed, to expose 2"x24tpi threads, permitting integration of the diagonal into additional configurations through the use of the Astro T-2 System components.
SCT Users: The diagonal body's input 2" threading is compatible with the standard Celestron/Meade 2" rear cell threads, enabling you to directly thread it onto your SCT. NexStar 8 or 8i users will find that this diagonal couples close enough to swing through zenith without hitting the RA base! Please note, an additional Baader SCT LockRing is required for direct attach to SCTs.
For a detailed review of the new 2" Clicklock Diagonal, including many nice pics and direct SCT mounting, please see Mike Swanson's NexStar Resource Site.
Specifications
| MANUFACTURER |
Baader Planetarium |
| SKU (#) |
2956100Z |
| WEIGHT (NETTO) |
0.455 |
| OPTICAL DESIGN |
Mirror Diagonal |
| INNER CONNECTION (LENS SIDED) |
Thread, M48 |
| OUTER CONNECTION (LENS SIDED) |
Thread, M68 x 1 |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) |
Clamp, 2" (50,8mm) |
| REFLECTION SURFACE |
Dielectrically coated |
| IMAGE ORIENTATION |
Erect image, Mirror inverted |
| OPTICAL LENGTH (MM) |
109 |
| CLAMPING SYSTEM |
ClickLock |
| DEFLECTION ANGLE |
90° |
| INNER DIAMETER / CLEAR APERTURE (MM) |
46,6 |
Downloads
Testreview - Mirror vs. dielectric vs. prism diagonal comparison - W. Paolini
Baader Star Diagonals (T-2 and 2")
Testreview - THE BAADER BBHS-SITALL SILVER DIAGONAL - W. Paolini
ClickLock clamps - Time to change the system
User Manual for Baader ClickLock Diagonal Mirror with 2"- and M68-Connection
