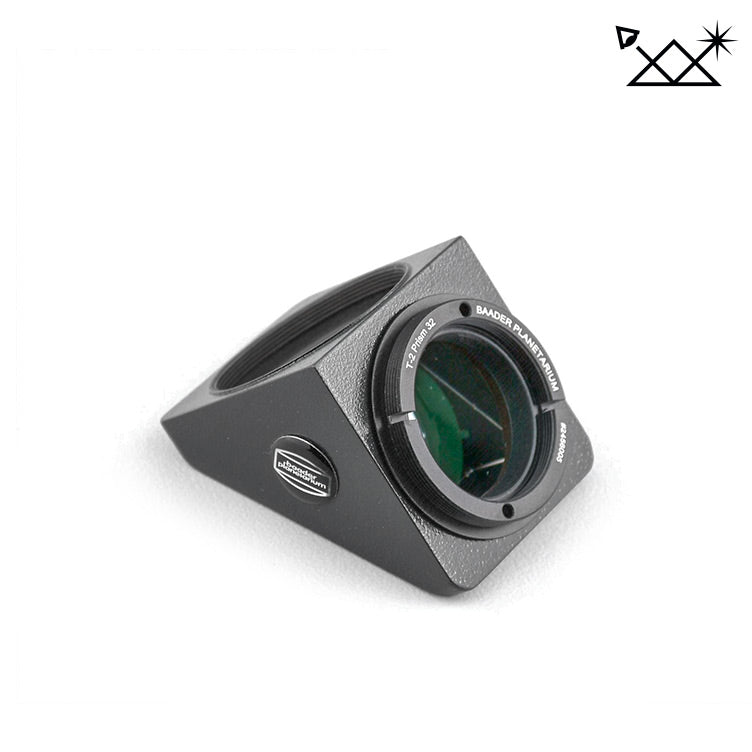

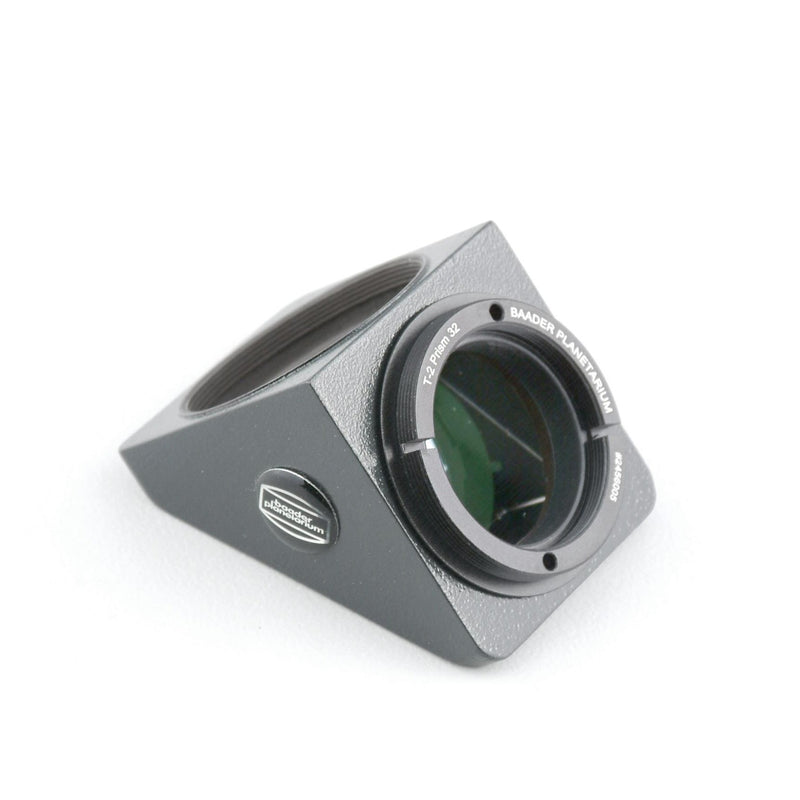

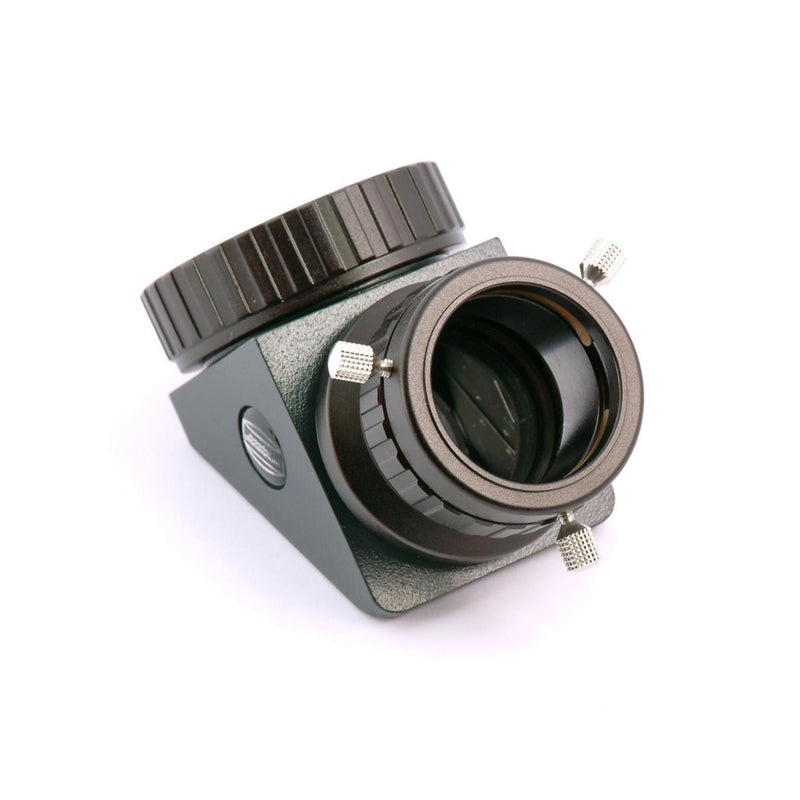

Baader Prism Diagonal T-2/90° 32mm

Baader Prism Diagonal T-2/90° 32mm

by Baader Planetarium
SKU T2-01C (Baader #2456005)
$141.00 - $141.00
$141.00
$141.00 - $141.00
$141.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • High-quality Zenith Prism T-2/90 ° with 32mm Prism
  • Rigid metal body
  • Connection objective side: T-2 internal thread
  • Connection eyepiece: T-2 external thread
  • Compact size for minimum path-length
  • Excellent for Baader Maxbright binoviewer
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2456005
WEIGHT (NETTO) 0.16
OPTICAL DESIGN Star Diagonal Prism
INNER CONNECTION (LENS SIDED) Thread, T-2 (M42 x 0,75)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, T-2 (M42 x 0,75)
REFLECTION SURFACE Total reflection
AR-COATING High transmission multi-coated (HT-MC)
IMAGE ORIENTATION Erect image, Mirror inverted
OPTICAL LENGTH (MM) 35
CLAMPING SYSTEM no clamp
DEFLECTION ANGLE 90°
INNER DIAMETER / CLEAR APERTURE (MM) 32
Downloads

Testreview - Mirror vs. dielectric vs. prism diagonal comparison - W. Paolini

Baader Star Diagonals (T-2 and 2")

Learn more about Astro T-2 System

Related Articles

OVERVIEW AND RECOMMENDED USE: BAADER STAR DIAGONALS
