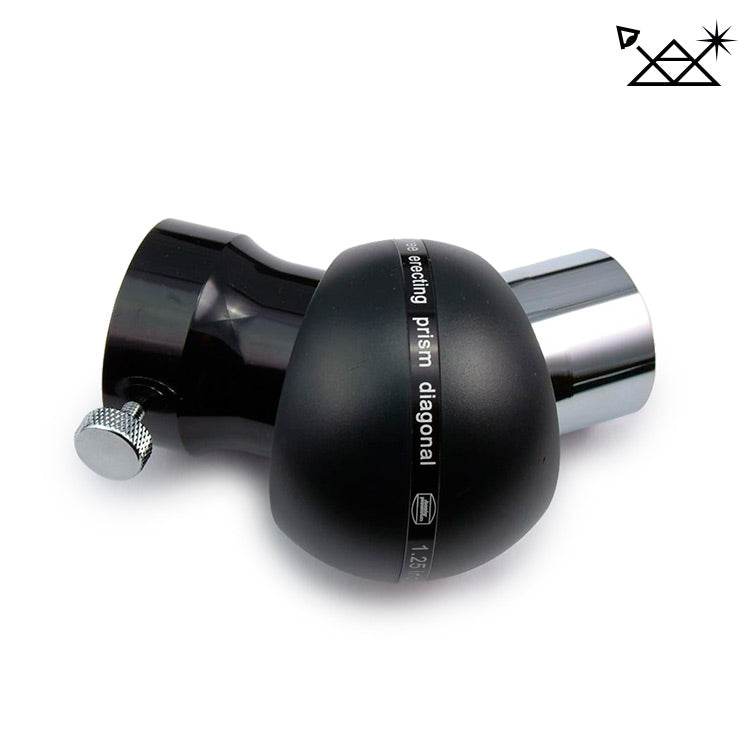

Baader1¼" Amici-erecting-prism 45° with 24mm free aperture

Baader1¼" Amici-erecting-prism 45° with 24mm free aperture

by Baader Planetarium
SKU AMICI-45 (Baader #2956150)
$92.00 - $92.00
$92.00
$92.00 - $92.00
$92.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • Much larger prism than other so-called "Erecting prisms"
  • Many Erect image prisms have only 19 mm free passage opening and therefore are not suitable for terrestrial observations at low magnifications, because the field of the eyepiece is shaded by the too small prism.
  • Correct image orientation
  • Excellent for terrestrial viewing (for high-power astronomical viewing, choose one of our deluxe Amici star diagonals).
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2956150
WEIGHT (NETTO) 0.234
OPTICAL DESIGN Erecting Prism
INNER CONNECTION (LENS SIDED) Thread, 1,4"(35mm)
OUTER CONNECTION (LENS SIDED) Barrel, 1¼"
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼"
REFLECTION SURFACE Total reflection
AR-COATING Multi-Coated (MC)
IMAGE ORIENTATION Erect image, Non-reversed
OPTICAL LENGTH (MM) 99
CLAMPING SYSTEM Screw clamps
DEFLECTION ANGLE 45°
INNER DIAMETER / CLEAR APERTURE (MM) 24
