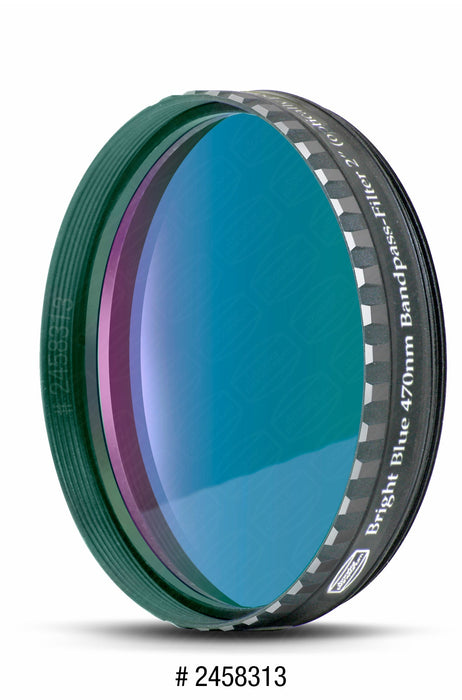

Baader Color Filters (blue, bright blue, green, yellow, red, orange)

$53.00
SKU FCFG-1 (Baader #2458304)
Colour
Filter size

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

"Less is more!" Better a few filters with high optical performance produced for astronomical observations than whole mountains of filters with mediocre quality.

  • Color Filter Set with 6 colors for contrast enhancement of lunar and planetary observations.
  • Included Filters: Dark Blue Filter, Light Blue Filter, Green Filter, Yellow Filter, Orange Filter and Red Filter
  • Largest free opening of all color filters on the market to eliminate any vignetting.
  • CNC machined "grip crown" provides excellent handling and comfort.
  • Both sides 7-layer AR coating with only 0.25% residual reflection per surface. This is the most anti-reflective coating that has ever been undertaken with color filters.
  • Non-aging sealed coating
  • The most important criterion for any kind of light filtering is brightness. Certain spectral ranges at high magnification will only work at the highest light transmittance.
  • The long-pass filter in this filter set offers 98% transmission and produces no flare. Unmatched by other brands. This can easily be seen in comparison with standard color filters - the filter colors are far more radiant
  • The combination of our infrared (IR) cut filter 1¼" and the RG 610 red filter results as an extremely narrow-band H-α pass filter for the CCD photography of red emission nebulae - at a ridiculously low price!
  • A wide range of adaptors allow the uses of T-2 photo threads (See: Baader Astro T-2 System™).

Not just another colored filter. Finally, a set of serious tools for the planetary observer. Baader Planetarium's Premium Colored Filters bring a new level of quality and performance to planetary contrast enhancement. Available singly, or as a full set of 6 filters in both 1¼” and 2" Sizes.


Freedom from Ghost images, even when stacked. Striae-free substrates are polished parallel to 30 seconds of to avoid wedge errors. Finest 7-layer hard multicoatings on both faces feature 0.25% residual reflections (Baader filters are unique, no other colored filter incorporates anti-reflection multicoatings). The coatings are also different for each of the filters, in order to match the coating performance to the filter curve of each color. This maximizes the transmission and minimizes reflections.

Extremely High Transmissions result in maximum contrast and isolation of planetary details, even with smaller telescopes. Efficiencies of the three longpass filters (Red, Orange, and Yellow) peaks at 98%, and efficiencies of the three bandpass filters (Green, Blue, Dark Blue) achieve 70%.

Carefully designed spectral characteristics. Filters may be stacked without image degradation or ghosting, in order to provide even narrower passbands. Or, combine with any of the other Baader filters for interesting possibilities. For actual spectral traces, see Color Filter Transmission Curves.

No reduction in sharpness, even at high magnifications or when using the filter far ahead of the focal plane (ie, digital imaging, or in front of a diagonal or binoviewer).

By using the 2" size, only one filter is needed for binoviewing. Only Baader colored filters have the optical quality necessary for use this far ahead of the focal plane.

Baader Phantom Group Coating™

Developed by Baader Planetarium the coating is a 7-layer broadband coating with extremely low residual reflection. The term "Group" indicates that the respective most effective anti-reflection layer system was calculated for each type of glass of the filter.

This means that the anti-reflection layers of different colour filters are different. They are calculated to provide the maximum for the respective filtered colour transmission values.

Both sides of the filter are coated with 7-layer AR coating with only 0.25% residual reflection per surface. This is the most that has ever been provided for colour filters. The filter discs are screwed into the blackened aluminium frames and are delivered within a filter. Each filter is designed for multiple applications.

Why Baader Planetarium Filters?

Specifications

Dark Blue

MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458302 | 2"=2458312
EAN CODE 4047825025111 | 4047825009708
WEIGHT (KG) 0.059 | 0.066
COLOUR Dark Blue
TRANSMISSION RANGE > 435 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Bandpass
SINGLE OR SET? Single Filter
FILTER SHAPE round

Green

MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458304 | 2"=2458314
EAN CODE 4047825009777 | 4047825009685
WEIGHT (KG) 0.059 | 0.066
COLOUR Green
TRANSMISSION RANGE > 500 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Bandpass
SINGLE OR SET? Single Filter
FILTER SHAPE round

Light Blue

MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458303 | 2"=2458313
EAN CODE 4047825009791 | 4047825009692
WEIGHT (KG) 0.059 | 0.066
COLOUR Light Blue
TRANSMISSION RANGE > 495 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Bandpass
SINGLE OR SET? Single Filter
FILTER SHAPE round

Orange



MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458306 | 2"=2458316
EAN CODE 4047825009746 | 4047825009678
WEIGHT (KG) 0.059 | 0.066
COLOUR Orange
TRANSMISSION RANGE > 570 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Longpass
SINGLE OR SET? Single Filter
FILTER SHAPE round

Red



MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458307 | 2"=2458317
EAN CODE 4047825009739 | 4047825009661
WEIGHT (KG) 0.059 | 0.066
COLOUR Red
TRANSMISSION RANGE > 610 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Longpass
SINGLE OR SET? Single Filter
FILTER SHAPE round

Yellow



MANUFACTURER Baader Planetarium
SKU (#) 1.25"=2458301 | 2"=2458311
EAN CODE 4047825009814 | 4047825009715
WEIGHT (KG) 0.059 | 0.066
COLOUR Yellow
TRANSMISSION RANGE > 495 nm
FILTER THICKNESS (WITHOUT CELL) 2 mm
AR-COATING Phantom Coating® Group, planeoptically polished
FILTER SIZE 1 25 inch | 2 inch
FILTER USAGE Color, Planetary
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Longpass
SINGLE OR SET? Single Filter
FILTER SHAPE round
Downloads

Baader Color Filters Data Sheet

FAQ - Problems with filters can have the strangest causes

Using Filters for Planetary and Lunar observations
