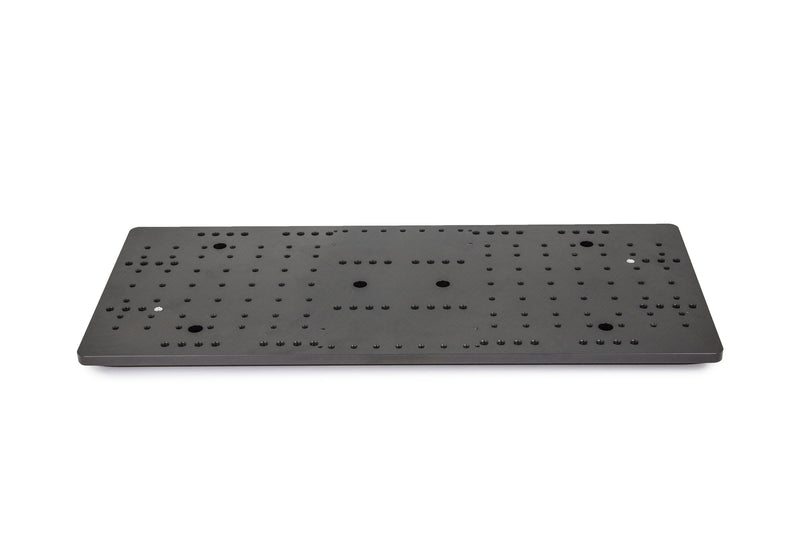

Baader Heavy-Duty 8" Double Mounting Plate

Baader Heavy-Duty 8" Double Mounting Plate

by Baader Planetarium
SKU PW-DBL8 (Baader #2451559)
$953.00 - $953.00
$953.00
$953.00 - $953.00
$953.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

Baader Double Mounting Plate.  8" width (203mm) heavy-duty dovetail bar 570mm in total length, for up to 100kg (220lbs).  Mounts onto heavy mounts such as 10Micron GM3000 or GM 4000.

  • Requires one 8" Planewave Clamp (# CDK-CLMP) for attaching the Double-Mounting plate onto the mount to move left and right.
  • Allows dual mounting of two optical tubes side by side – with total instrument payload up to 100kg (~220 pound)
  • Pre-drilled for most Baader Dovetail Bars and Clamps, eg.: Baader Pan EQ clamps 190mm, 230mm, 370mm or an additional 8" Planewave clamp

(Baader 2451559)  Weight: 6.9kg

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2451559
WEIGHT (NETTO) 6.9
BAR LENGTH 570 mm
DUAL MOUNTING Yes
TOP PLATE MOUNTING OPTIONS Pre-drilled for many bars and clamps, eg.: Baader Pan EQ clamps 190mm, 230mm, 370mm or 8" Planewave Clamp
BAR OR CLAMP? Bar
DESIGN other
