Baader M54 Heavy Duty QuickChanger with Optical length 11mm

Baader M54 Heavy Duty QuickChanger with Optical length 11mm

by Baader Planetarium
SKU M54-QC (Baader #2958760)
$117.00 - $117.00
$117.00
$117.00 - $117.00
$117.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

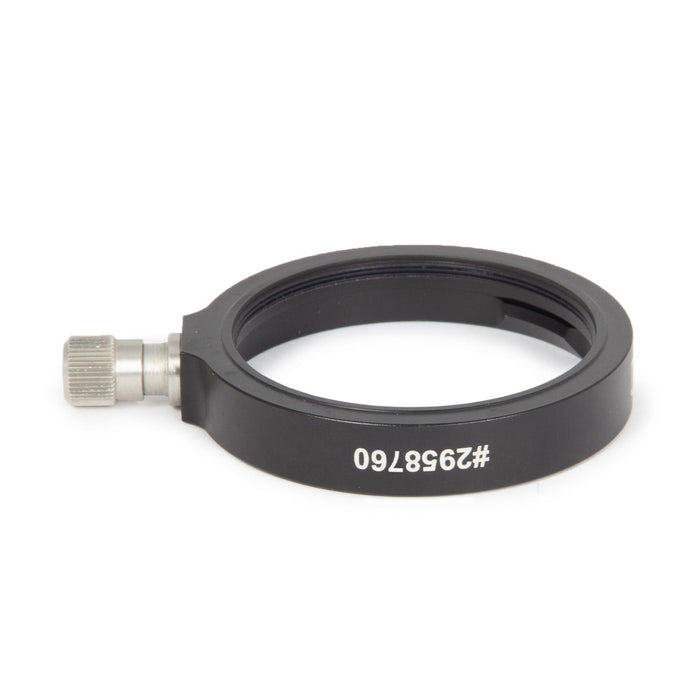

  • M54 female thread Heavy Duty Quick Changer
  • Creates with the M54a Change Ring with S54a ring dovetail (#2958765) a quick-change and rotating device with the highest load capacity (also available as set: M54 Heavy-Duty Quick Change System- Changer and change ring (#2958766))
  • Optical path length: 11 mm
  • Quick release clamping for heavy accessories- with brass-clamping
  • The changing system fits between any M48 connection
  • 1x M54 Metal Dustcap with S54a ring dovetail (#2958702) included

Heavy Duty M54 Quick Changer
The Baader Heavy Duty M54 Quick Changing System enables the rotation-proof mounting of heavy accessories as well as the easy rotation of cameras, bino-viewers and other accessories.

The quick changer has a built-in M54 internal thread and a high-quality thrust piece, so that even heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. Together with the M54a Change Ring with S54a ring dovetail (#2958765) it fits between any M54 thread and allows accessories to be exchanged or easily aligned. Quick Changer and Quick Changing Ring are also available together as M54 Heavy-Duty Quick Change System- Changer and change ring (#2958766).

Specifications
SKU 2958760
EAN Code 4047825052292
Manufacturer Baader Planetarium
Adapters Family M54 System
Optical length (mm) 11
Type of Adapter Same-Thread Adapter
Usage for heavy-duty accessories
Camera Adaptable M54 thread
Clamping System Screw clamps
Inner Connection (eyepiece/-camera-sided) S54
Inner Connection (lens sided) M54 x 0.75
Screw Type Large clamping screw with brass pressure plate
Inner Diameter / Clear Aperture (mm) 54 mm
Net weight (kg) 0.00
Outer Diameter 64 mm
×





×

×
