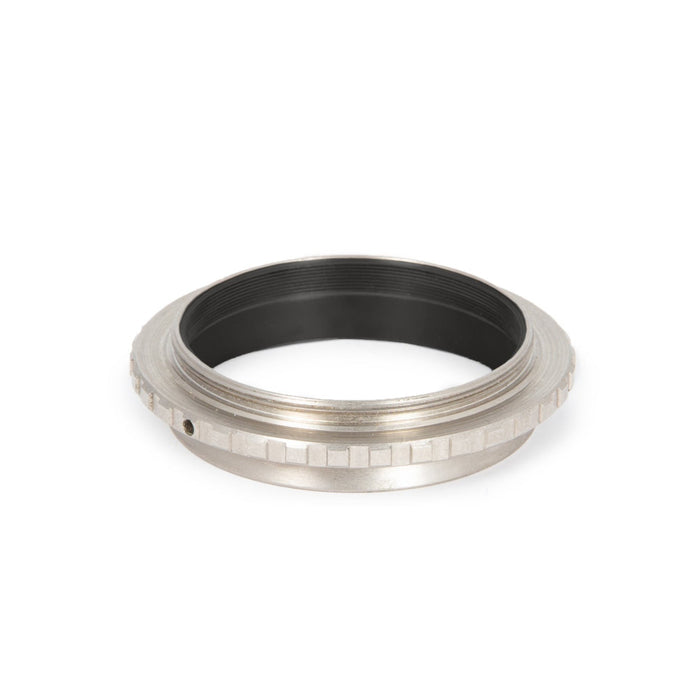

Baader M54 Quick Change Ring with optical length 4mm

Baader M54 Quick Change Ring with optical length 4mm

by Baader Planetarium
SKU M54-QCR (Baader #2958765)
$73.00 - $73.00
$73.00
$73.00 - $73.00
$73.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description
  • M54 male threaded quick coupler with S54 mm dovetail
  • Creates a quick change and rotating device with heavy load capacity when coupled with M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (#2958760)- fits between any M54 thread and allows for the exchange or easy alignment of accessories. Quick Changer and Quick Changing Ring are also available together as M54 Heavy-Duty Quick Change System- Changer and change ring (#2958766)
  • Quick Changing ring made from high performance steel
  • Optical length: 4 mm
  • The changing system fits between any M54 connection

M54a Change Ring with S54a ring dovetail

The quick changing ring made of high-quality steel has an M54 external thread on one side and a 50 mm dovetail on the other. The optical length is 4mm. Together with the M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (#2958760), it fits between any M54 thread and allows for the exchange or easy alignment of accessories. Quick Changer and Quick Changing Ring are also available together as M54 Heavy-Duty Quick Change System- Changer and change ring (#2958766).

Specifications
SKU 2958765
EAN Code 4047825052308
Manufacturer Baader Planetarium
Adapters Family M54 System
Optical length (mm) 4
Type of Adapter Same-Thread Adapter
Inner Diameter / Clear Aperture (mm) 50 mm
Net weight (kg) 0.05
Outer Diameter 65 mm
Outer Connection (lens sided) M54 x 0.75
×





×

×
