Baader Modal Steel Pillar for big mounts

Contact for Price

SKU PILLAR-xxL

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

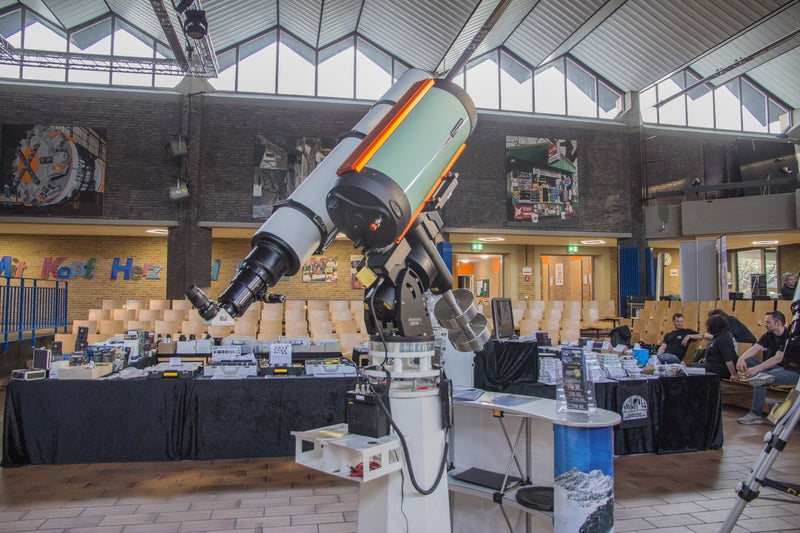

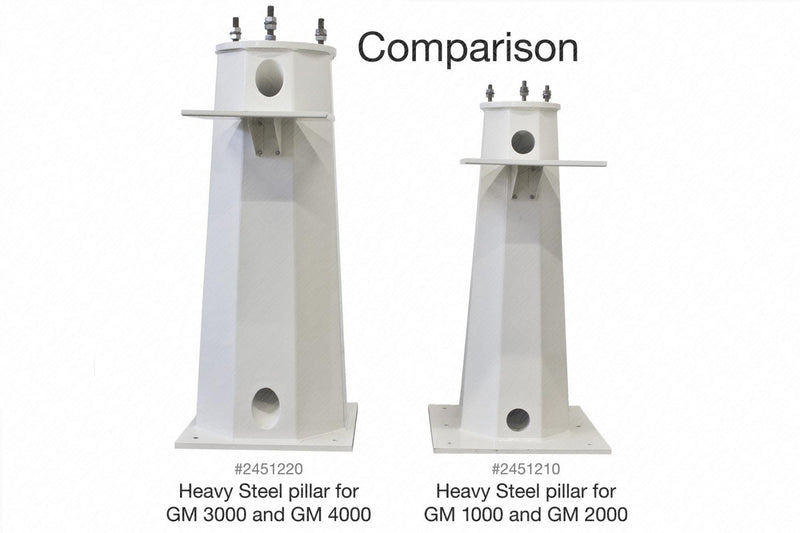

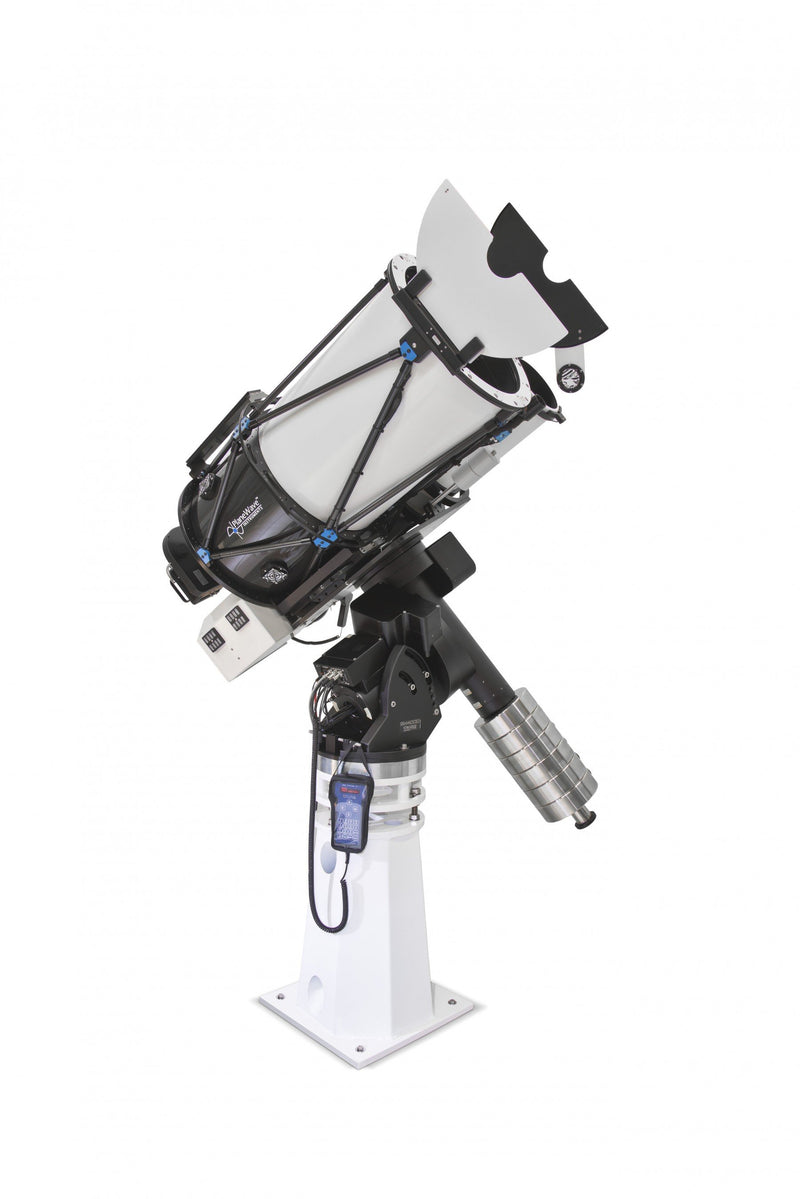

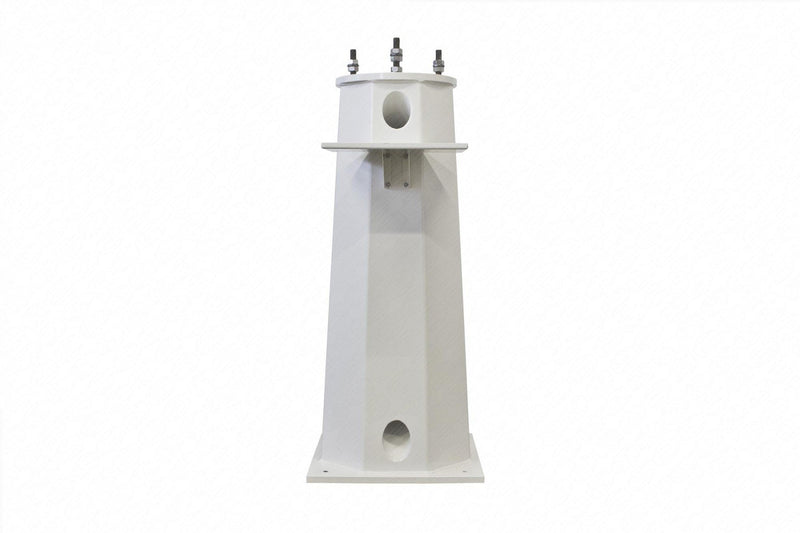

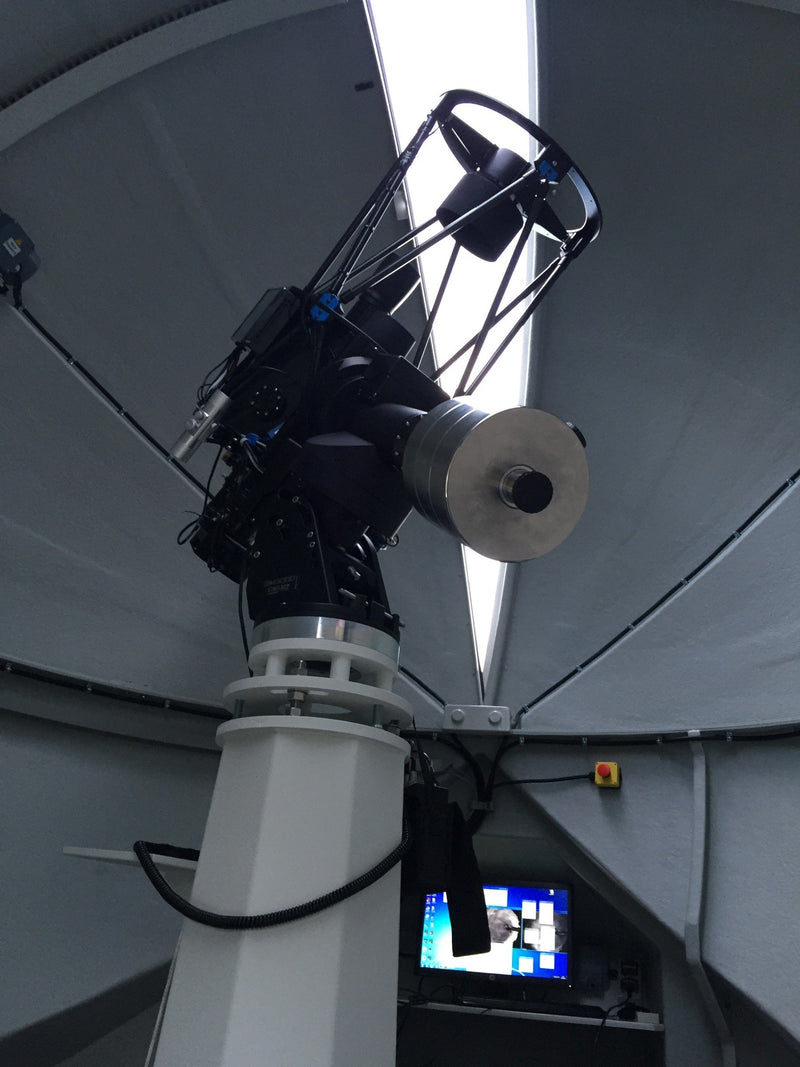

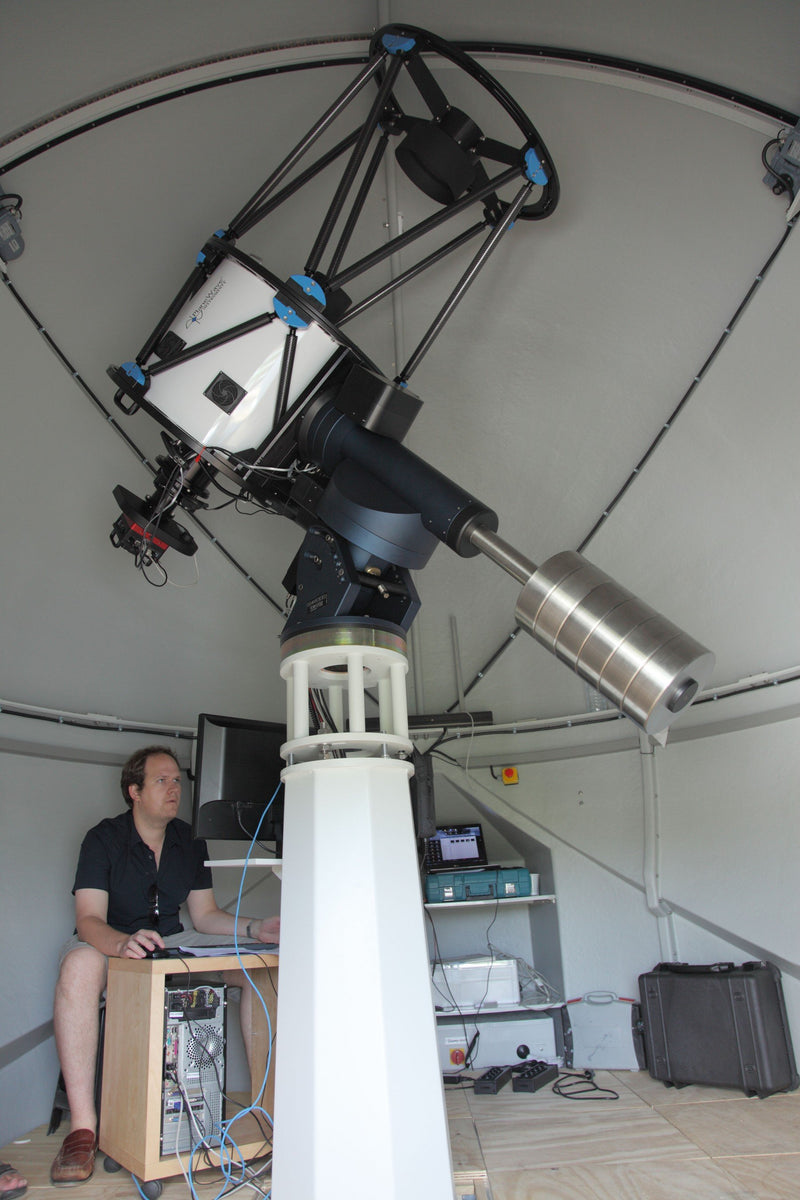

The Baader Modal Steel Pillar is a fully engineered permanent observatory solution for the large 10Micron mounts (GM3000, GM4000).  Its conical octagonal design has been engineered through modal analysis to avoid prominent resonances.  The sand-filled cavity rapidly dampens vibration.  The end result is a pillar that significantly exceeds the performance of simple round or square tube.

  • Payload capacity up to 600 kg
  • Welded Steel, actively dampens vibrations.
  • Bottom plate 500x500 mm
  • Top plate diam. 360mm Dia and 25mm thick
  • with 3 threaded Bolts M14 and center hole to fill the entire pillar with Quartz-sand at the erection site
  • Internal tube of 3" inner width for internal routing of cables
  • Accessory tray 360x270 mm, durable 2K paint RAL 1013
  • Standard heights: 60/80/100/115/125/135/145/155/165 cm.

Please Note:  This is a special order by Quote, and is only available to purchasers of a 10Micron mount.

(Baader #2451220) Weight: approx 200kg (440lb), depending on height.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2451220
WEIGHT (NETTO) 200 kg
TRIPOD, PILLAR OR FLANGE? Pillar
PAYLOAD CAPACITY (KG) 600 kg
TRIPOD WEIGHT 200 kg
TRIPOD HEIGHT (MIN) 80 cm
TRIPOD HEIGHT (MAX) 165 cm
ACCESSORY TRAY 360 x 270mm
MATERIAL Steel
