Baader Modal Steel Pillar for small to medium mounts

Contact for Price

SKU PILLAR-xxM

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

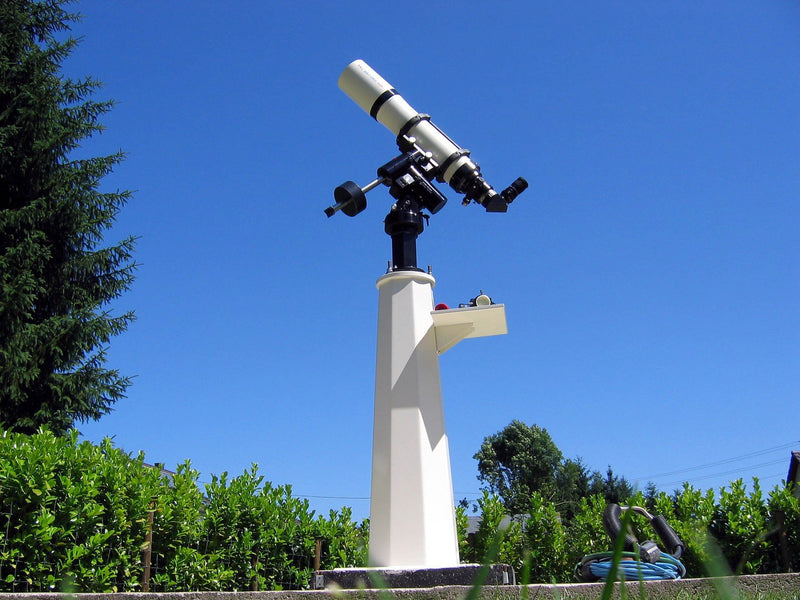

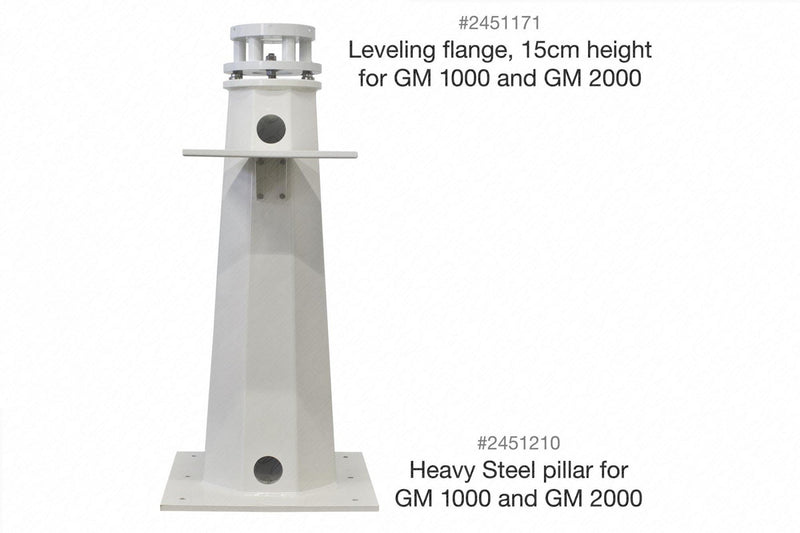

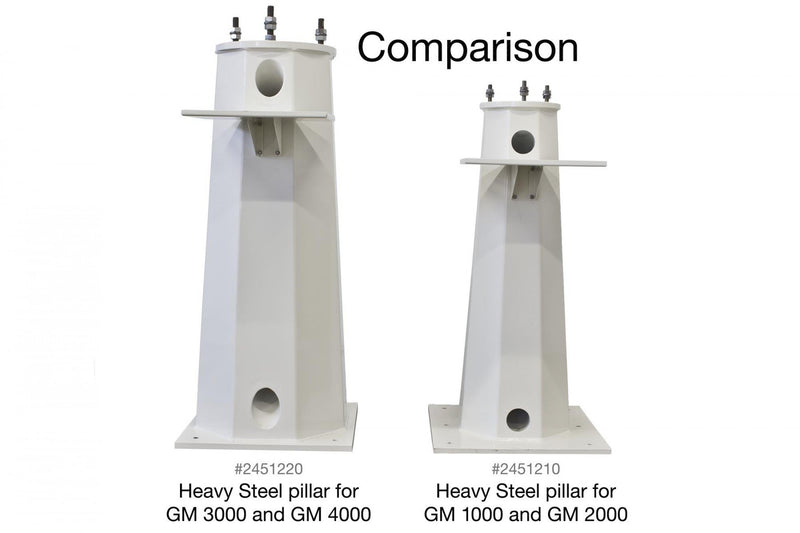

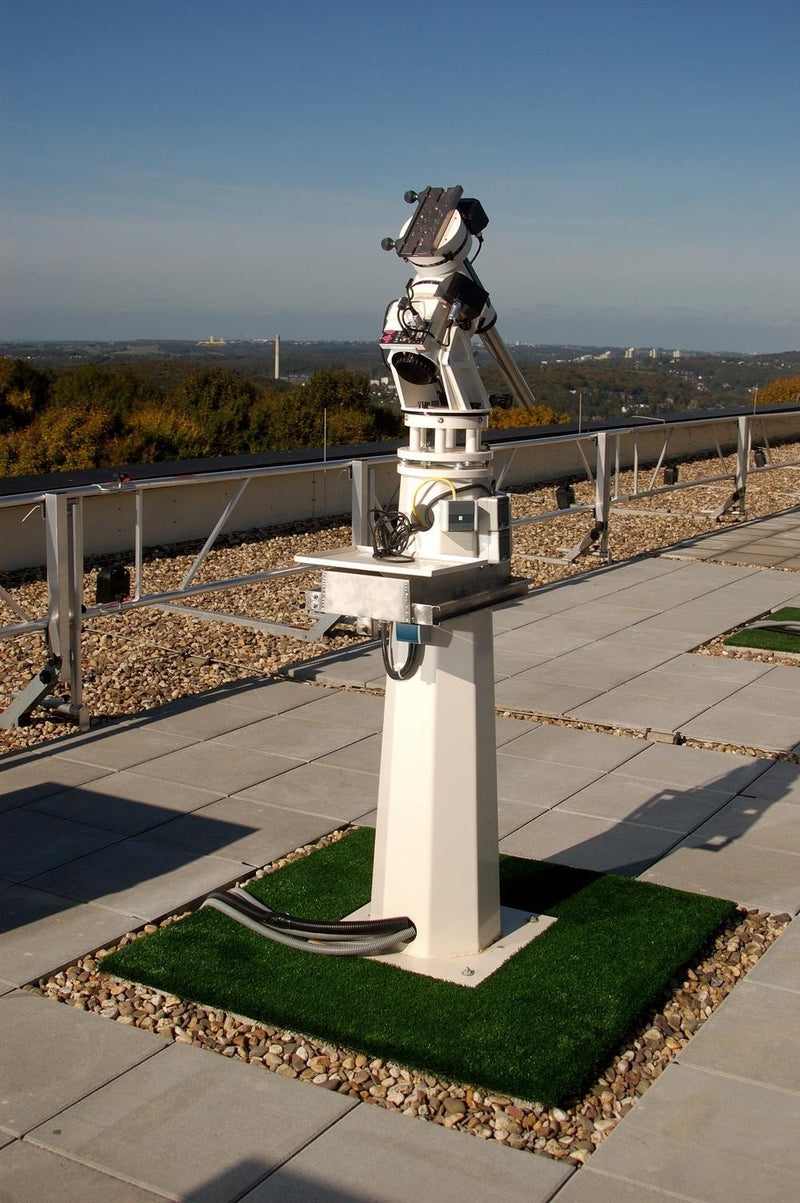

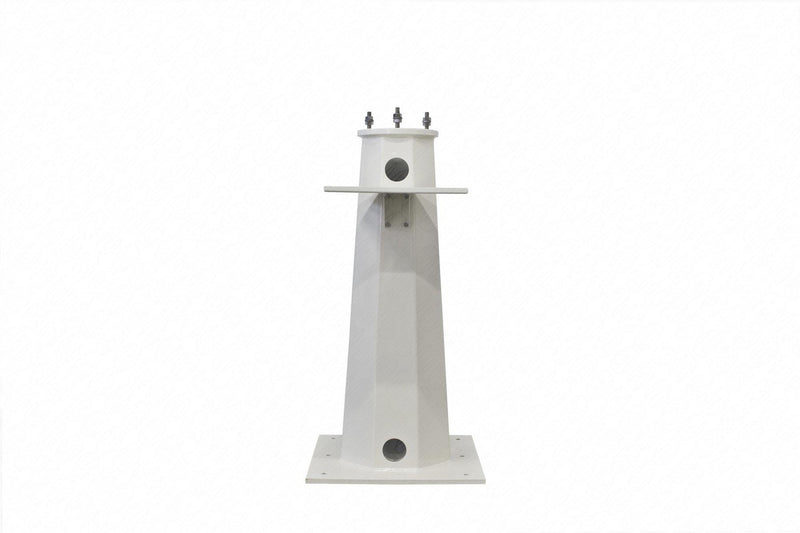

The Baader Modal Steel Pillar is a fully engineered permanent observatory solution for the small to medium 10Micron mounts (GM1000, GM2000).  Its conical octagonal design has been engineered through modal analysis to avoid prominent resonances.  The sand-filled cavity rapidly dampens vibration.  The end result is a pillar that significantly exceeds the performance of simple round or square tube.

  • Payload capacity up to 250kg (550lb)
  • Welded Steel, actively dampens vibrations.
  • Bottom plate 500x500 mm
  • Top plate diam. 240mm Dia and 25mm thick
  • with 3 threaded Bolts M14 and center hole to fill the entire pillar with Quartz-sand at the erection site
  • Internal tube of 3" inner width for internal routing of cables
  • Accessory tray 360x270 mm, durable 2K paint RAL 1013
  • Standard heights: 60/80/100/115/125/135/145/155/165 cm.

Please Note:  This is a special order by Quote, and is only available to purchasers of a 10Micron mount.

(Baader #2451210) Weight: approx 100kg (220lb), depending on height.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2451210
WEIGHT (NETTO) 100
TRIPOD, PILLAR OR FLANGE? Pillar
PAYLOAD CAPACITY (KG) 250 kg
TRIPOD WEIGHT 100 kg
TRIPOD HEIGHT (MIN) 80 cm
TRIPOD HEIGHT (MAX) 165 cm
ACCESSORY TRAY 360 x 270mm
MATERIAL Steel
