Baader OTP Outdoor Telescope Power Supply 27V/22.2A

Baader OTP Outdoor Telescope Power Supply 27V/22.2A

by Baader Planetarium
SKU OTP-22A
$397.00 - $397.00
$397.00
$397.00 - $397.00
$397.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

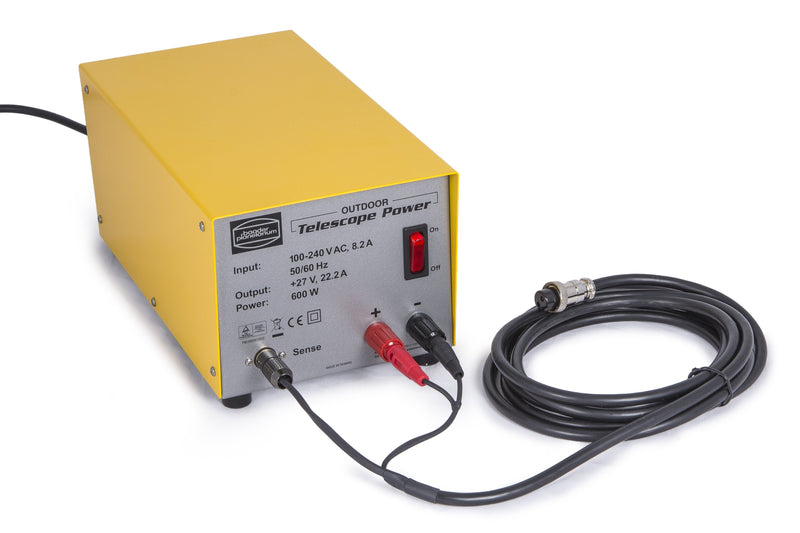

The Baader OTP Outdoor Telescope Power Supply was developed specifically for 10Micron telescope mountings.  It is the only power supply able to be located up to 50 meters away from the mount and can sense the actual voltage at the mount, while automatically regulating for any voltage drop.

Especially well suited for the GM3000 and GM4000 mounts.  Longer sense cables are also available.

  • Input: 100-240 V AC, 8.2 A, 50/60 Hz
  • Output: 27V, 22.2 A
  • Power: 600 W
  • Optimized output and power for max. slew rate
  • inkl. power cable with Euro-norm
  • incl. mount power cable
  • Measurements LxWxH: 270 x 14,3 x 120mm
  • weight without cables: 3,1 kg

(Baader # 2457645)  Available as a special order item.

Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2457645
EAN CODE 4047825031709
WEIGHT (NETTO) 0.325
TYPE Charger
ADAPTABLE TO GM 4000
POWER INPUT (V) 110 – 240V
POWER OUTPUT (V) 27V
POWER OUTPUT (A) 22,2 A
POWER OUTPUT (W) 600 W
Downloads

Notes on the Baader OTP Outdoor Telescope Power Supply 27V / 22,2A

    ×





    ×

    ×
