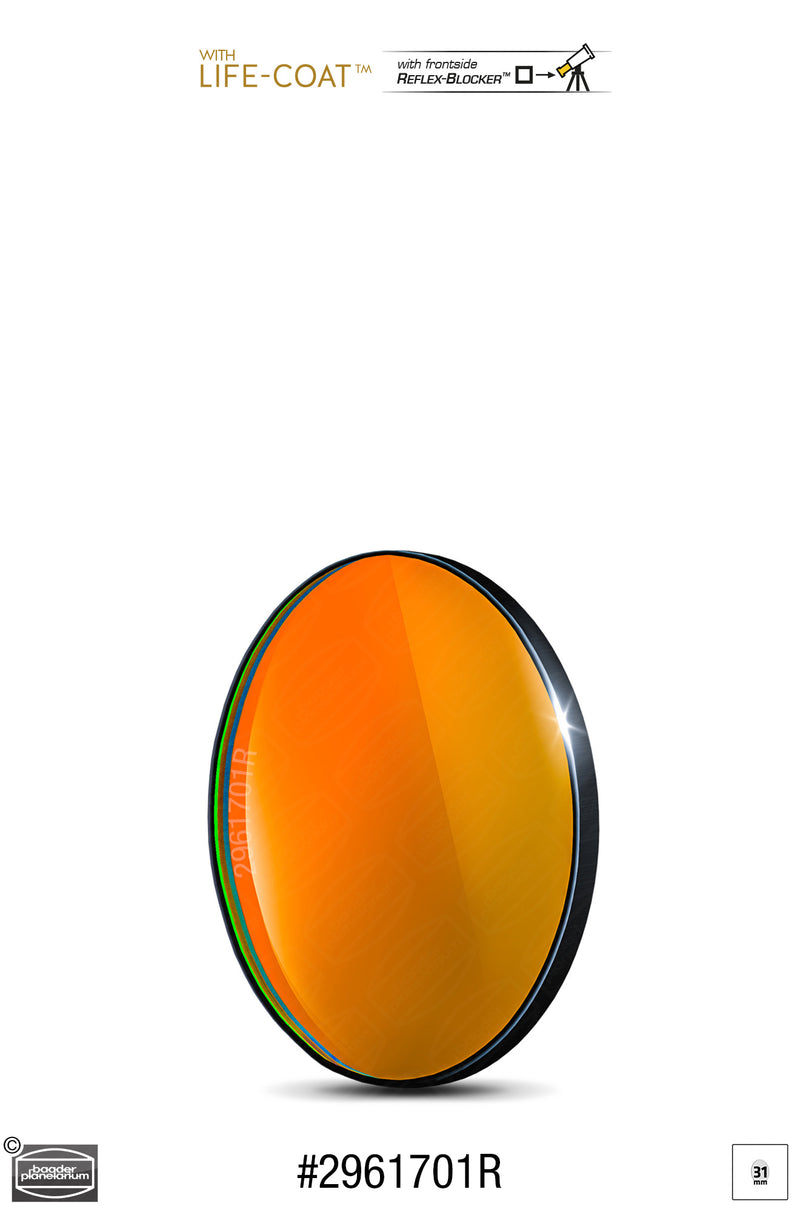

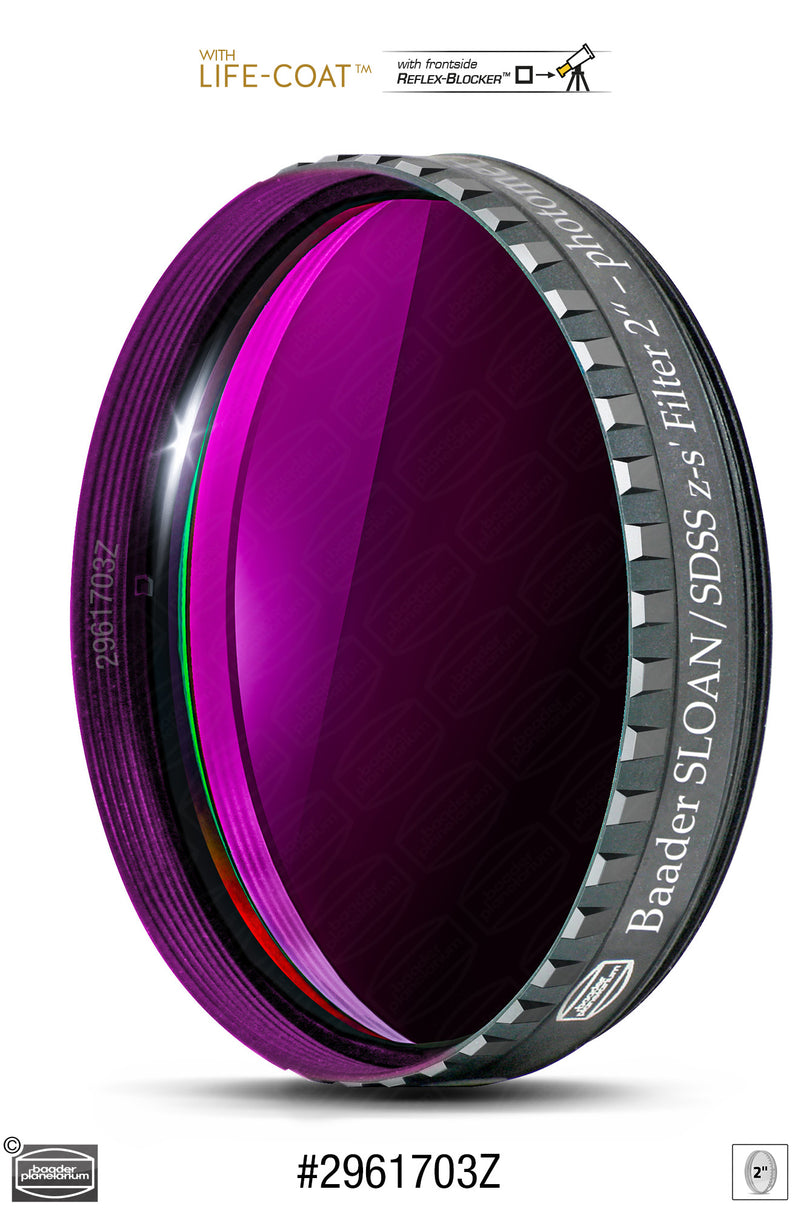

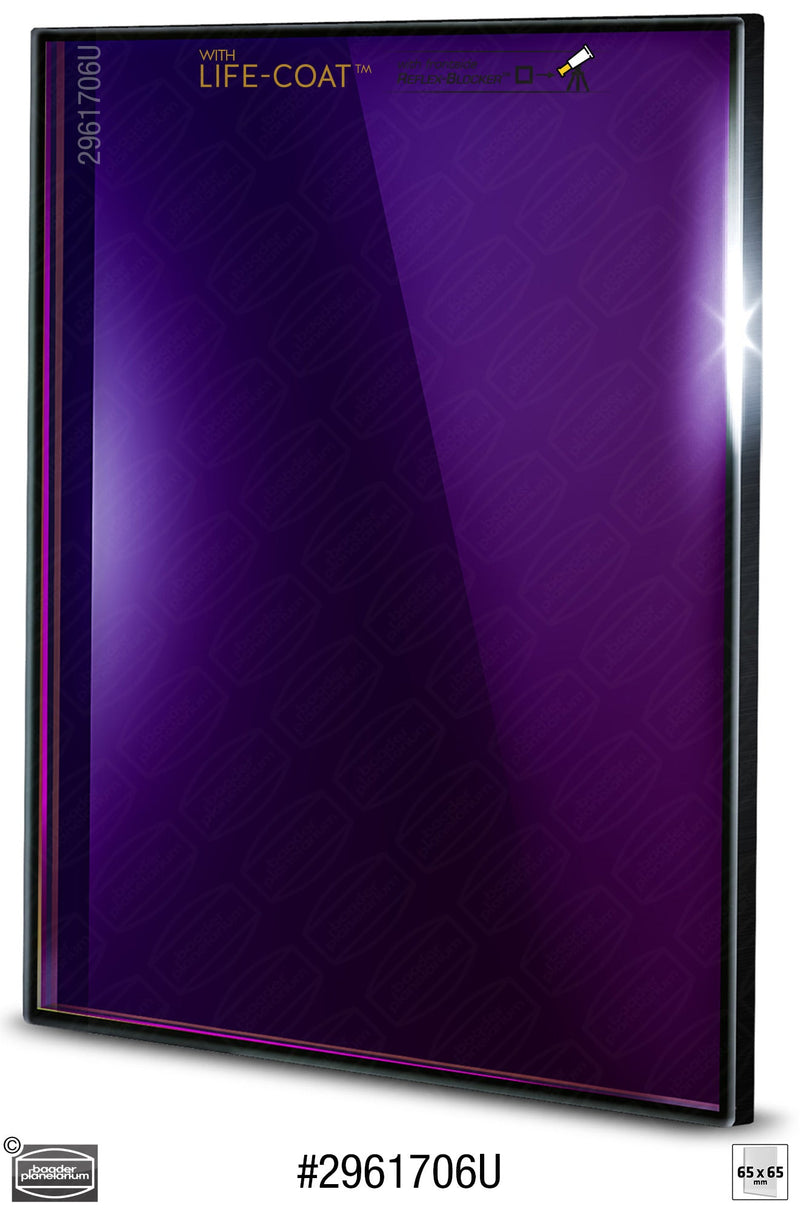

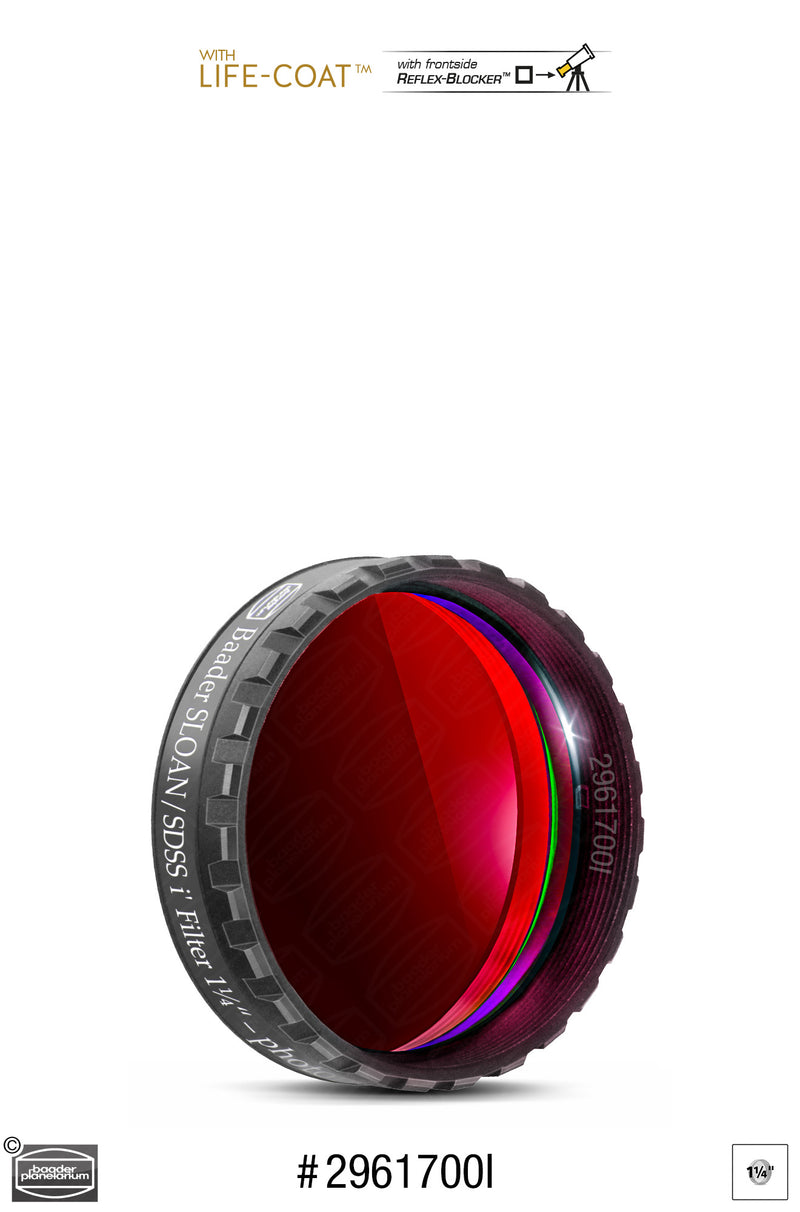

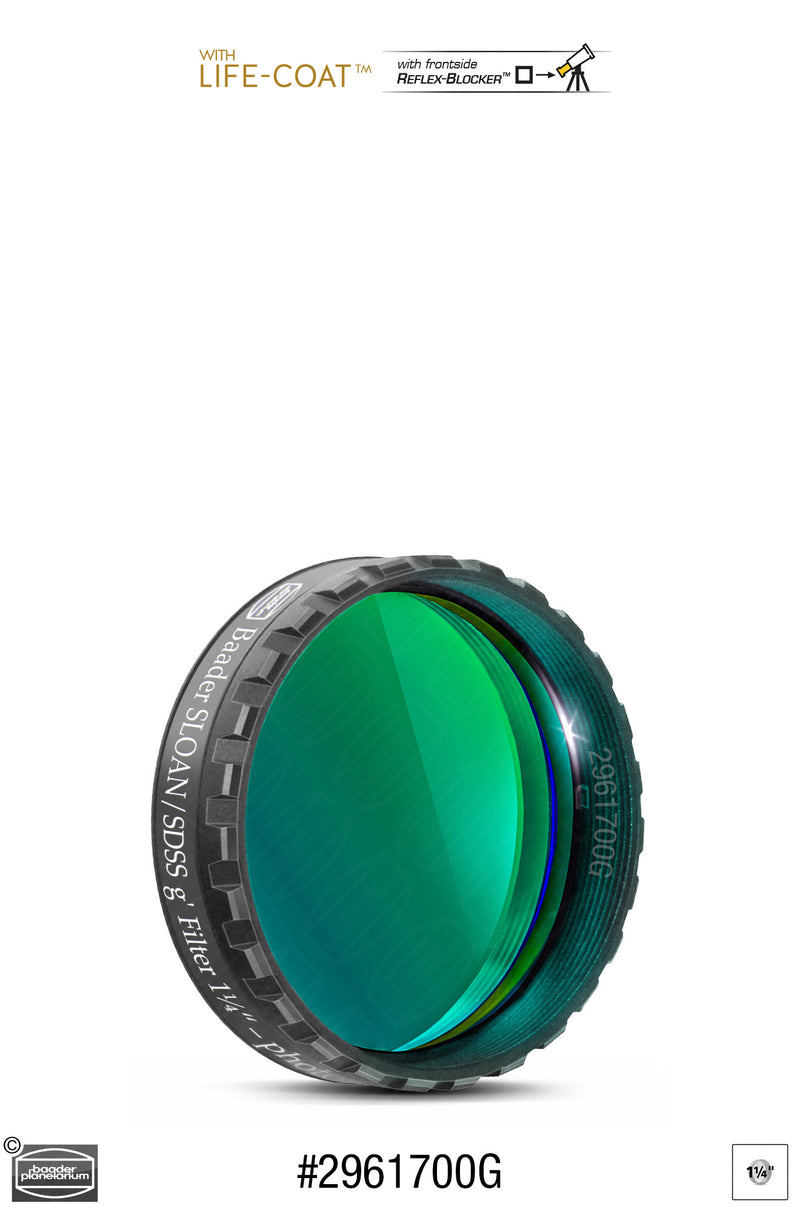

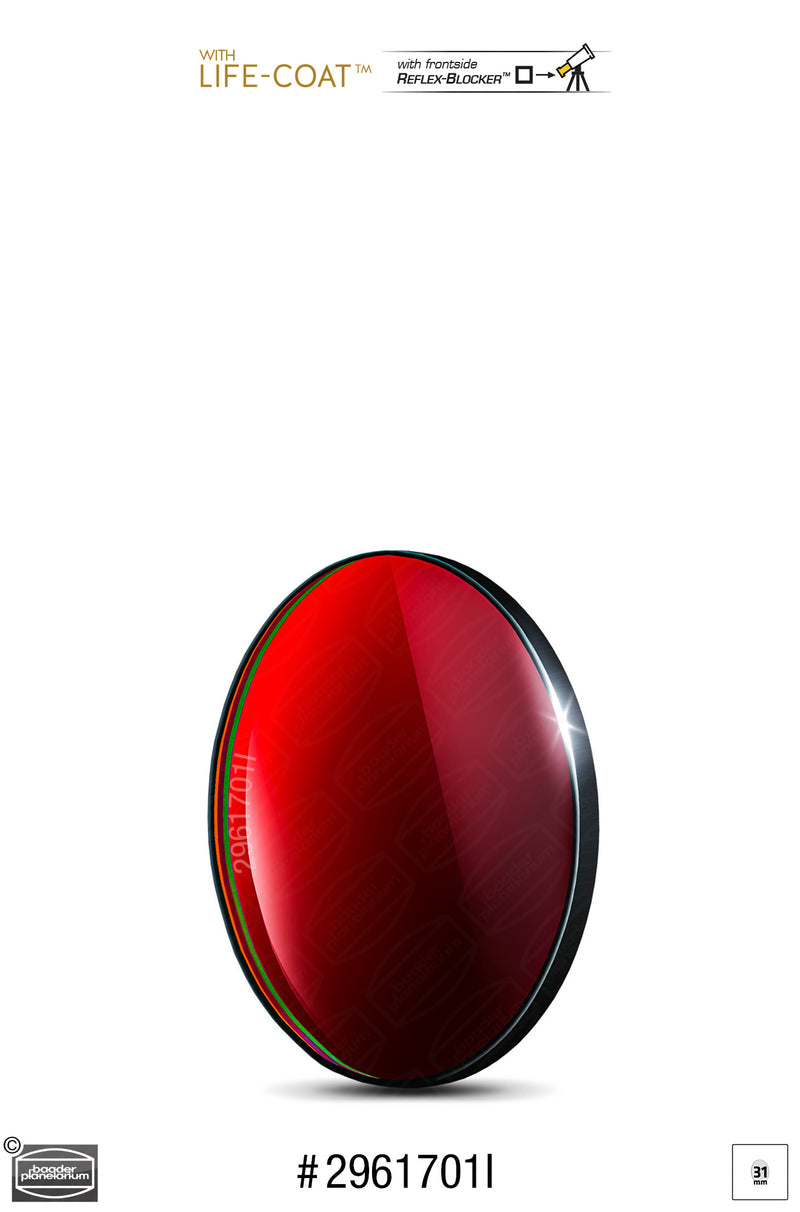

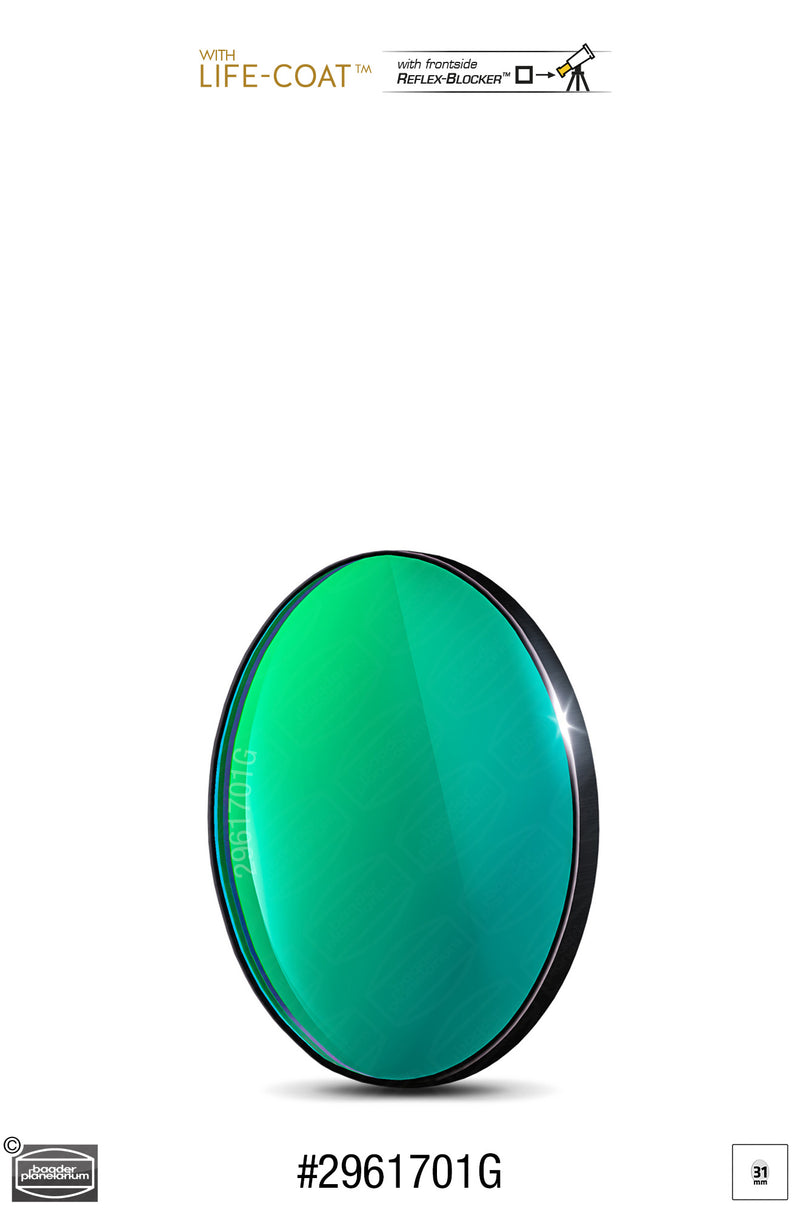

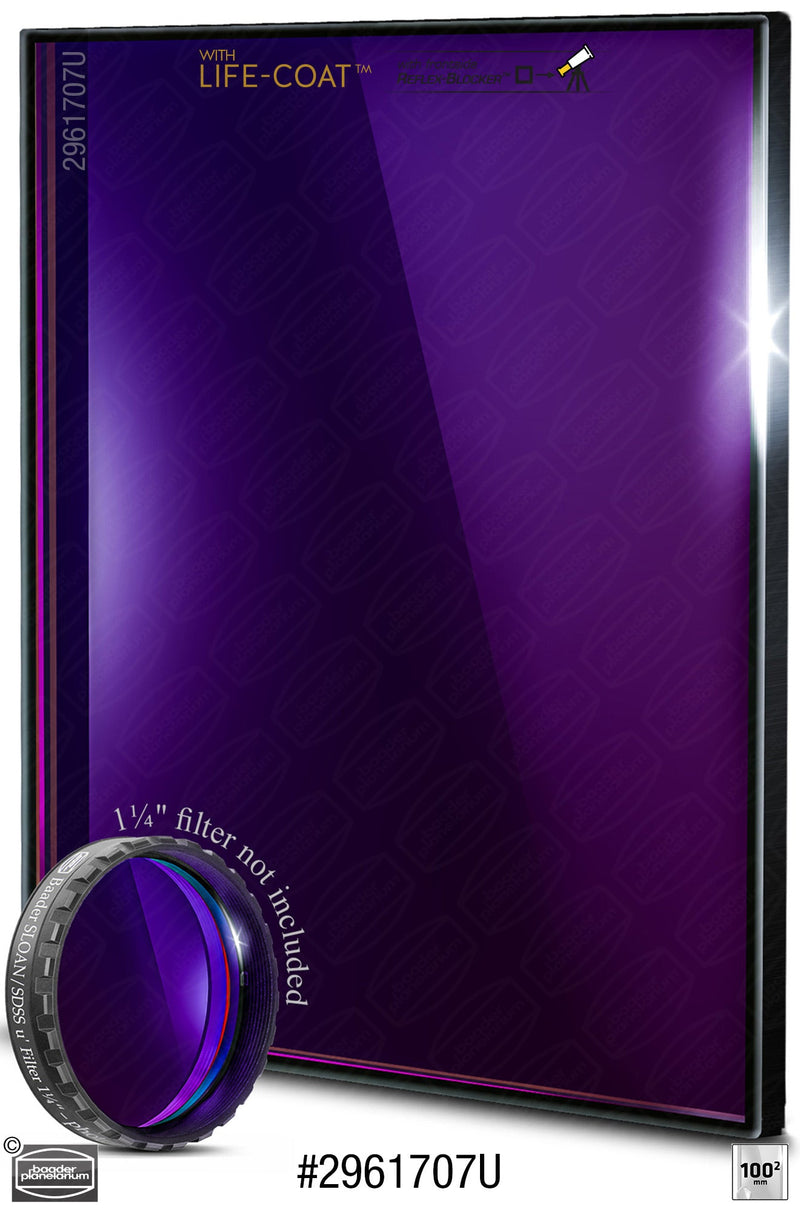

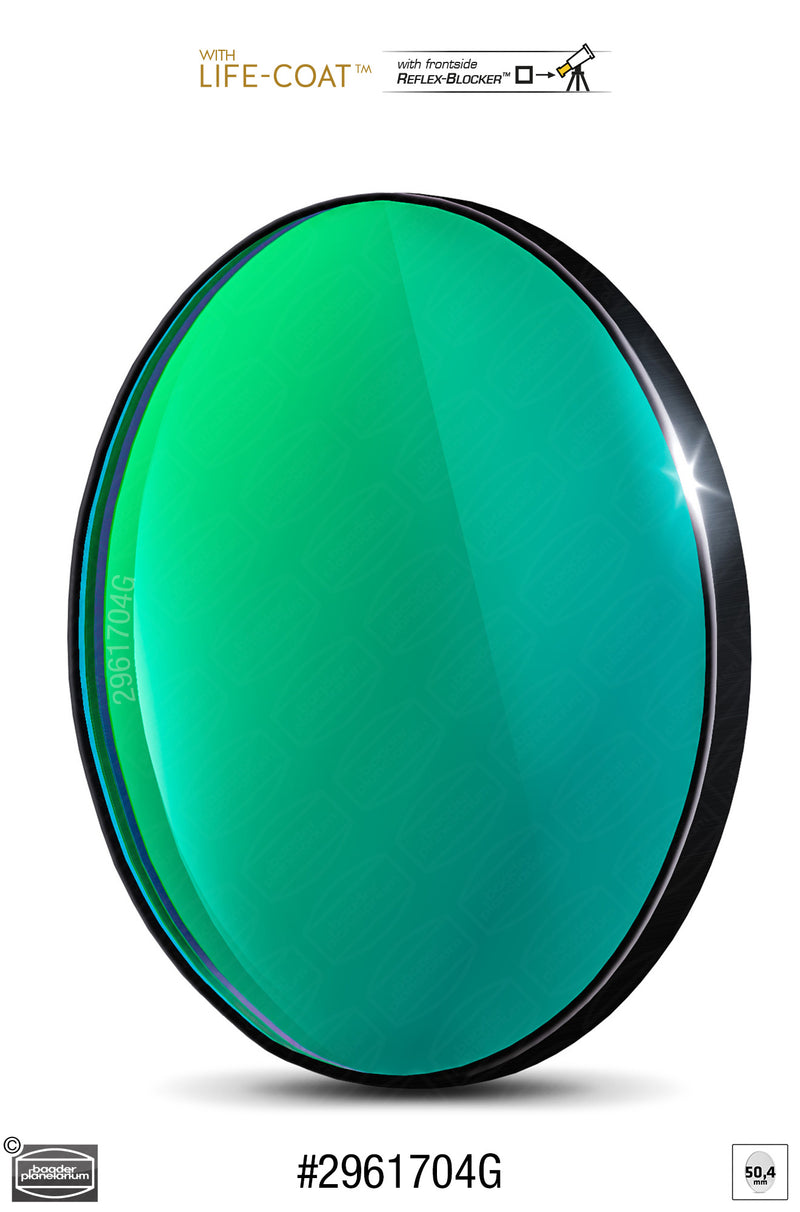

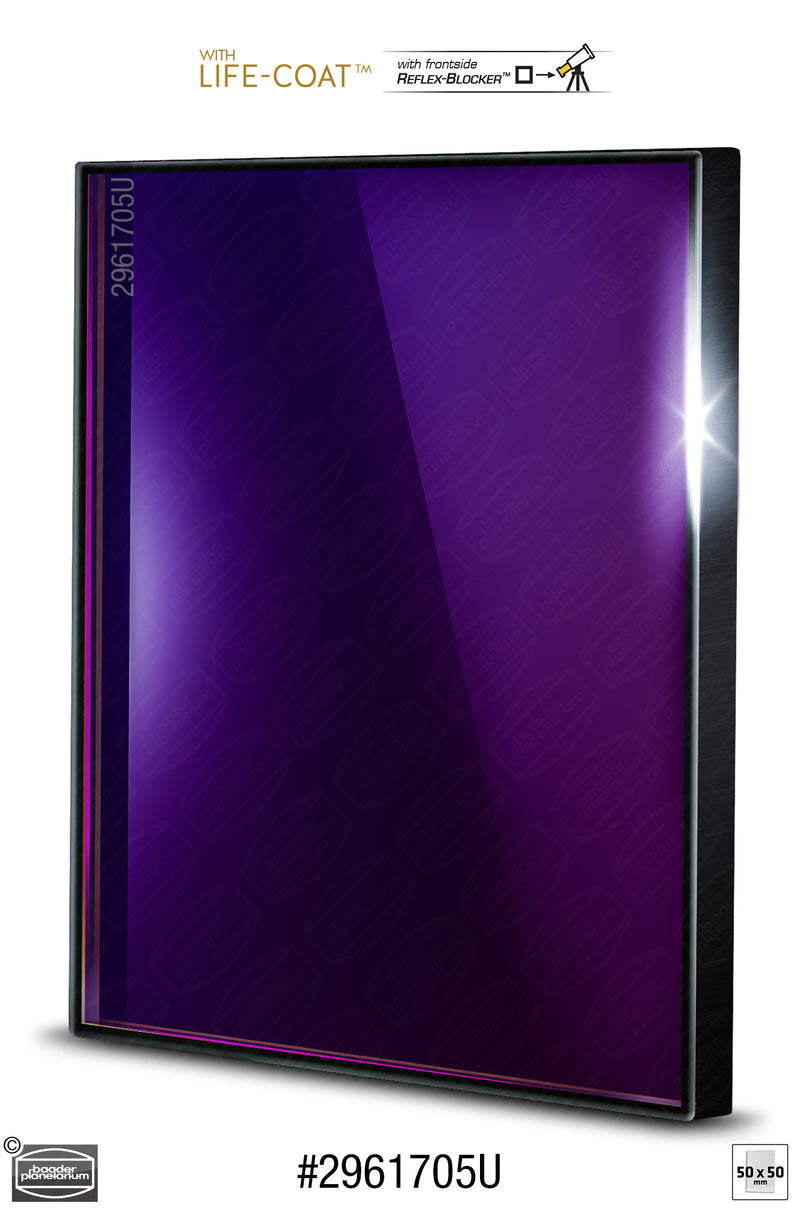

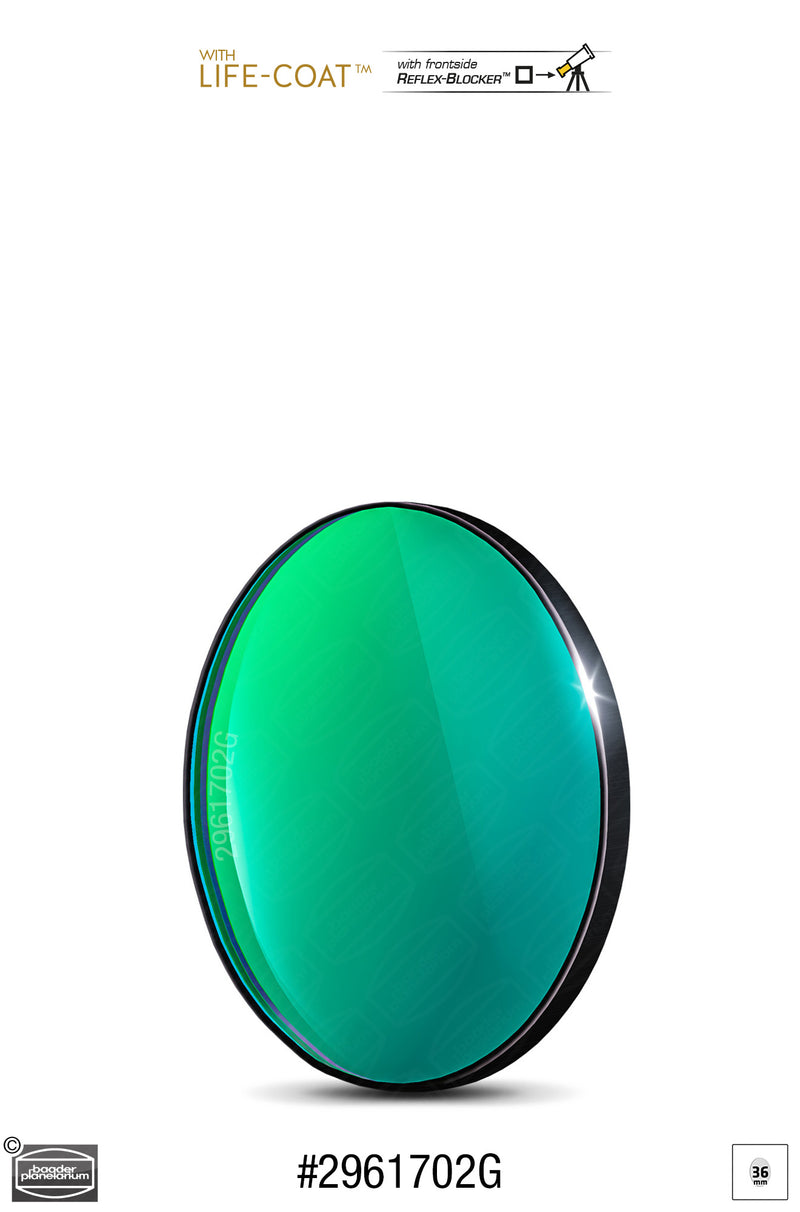

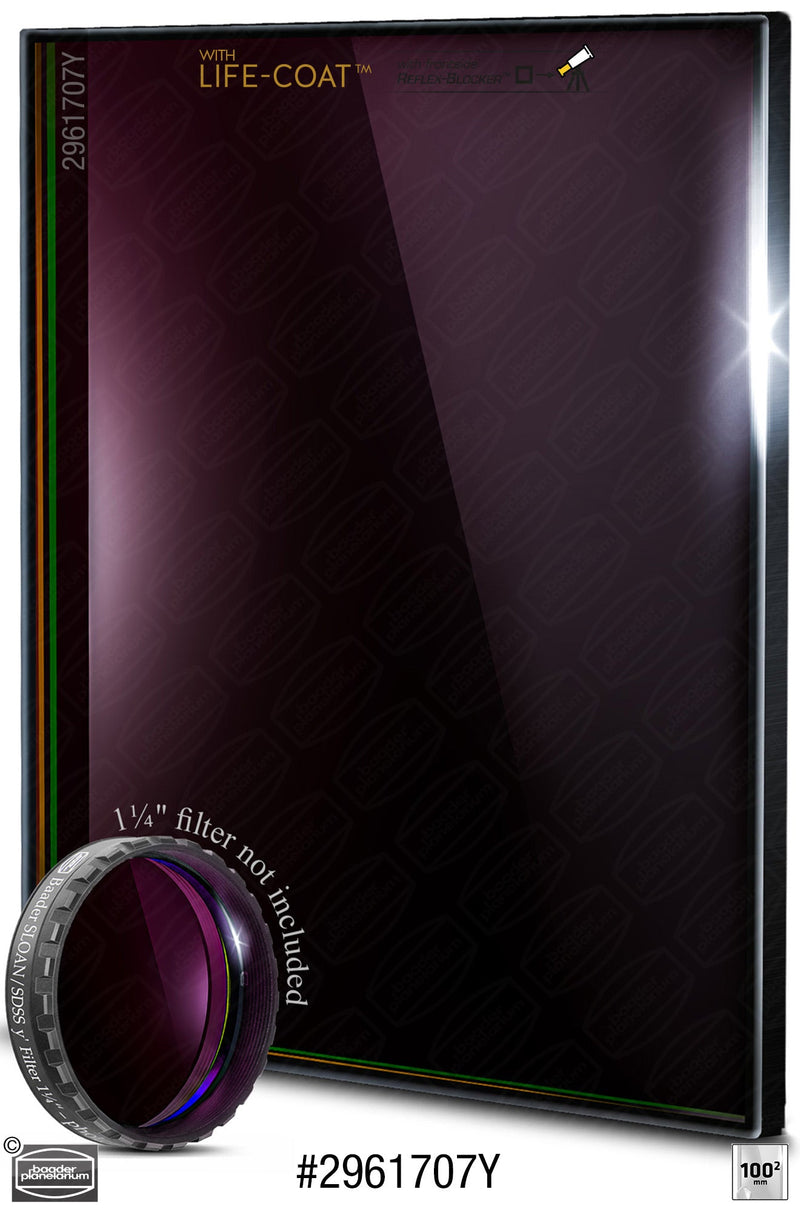

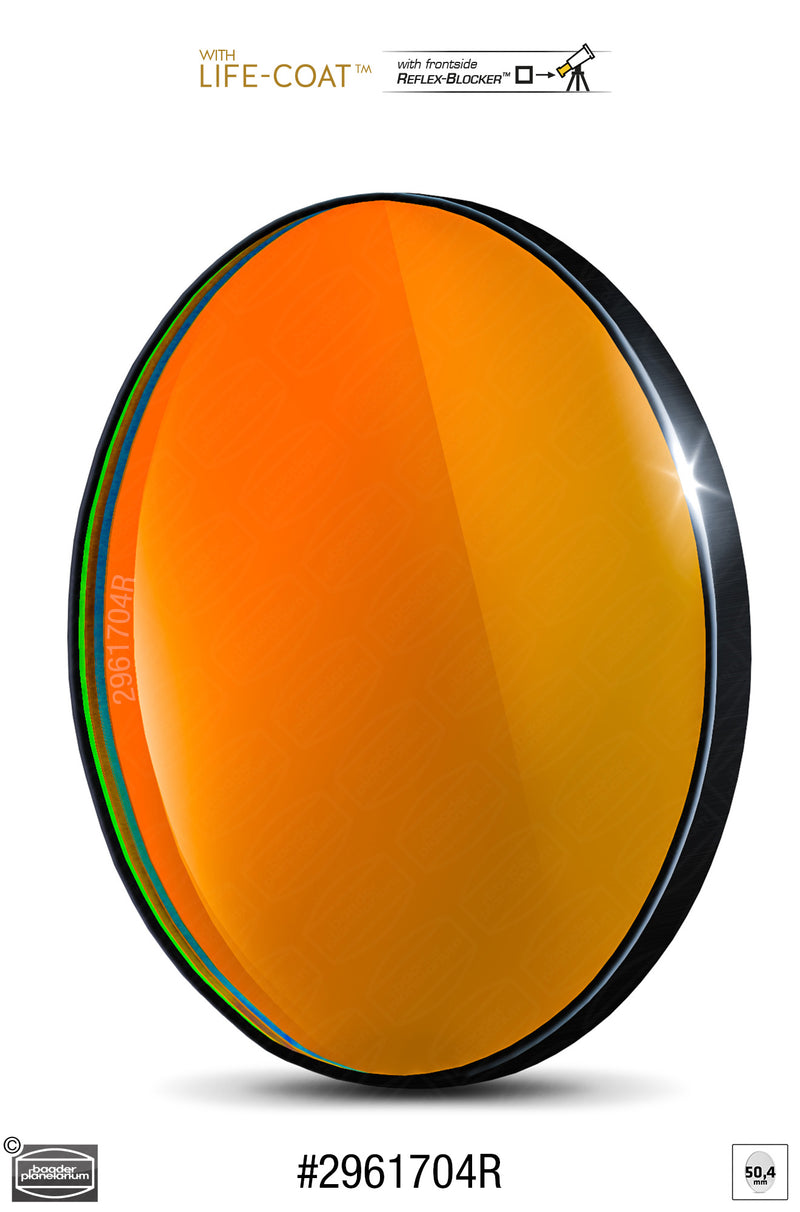

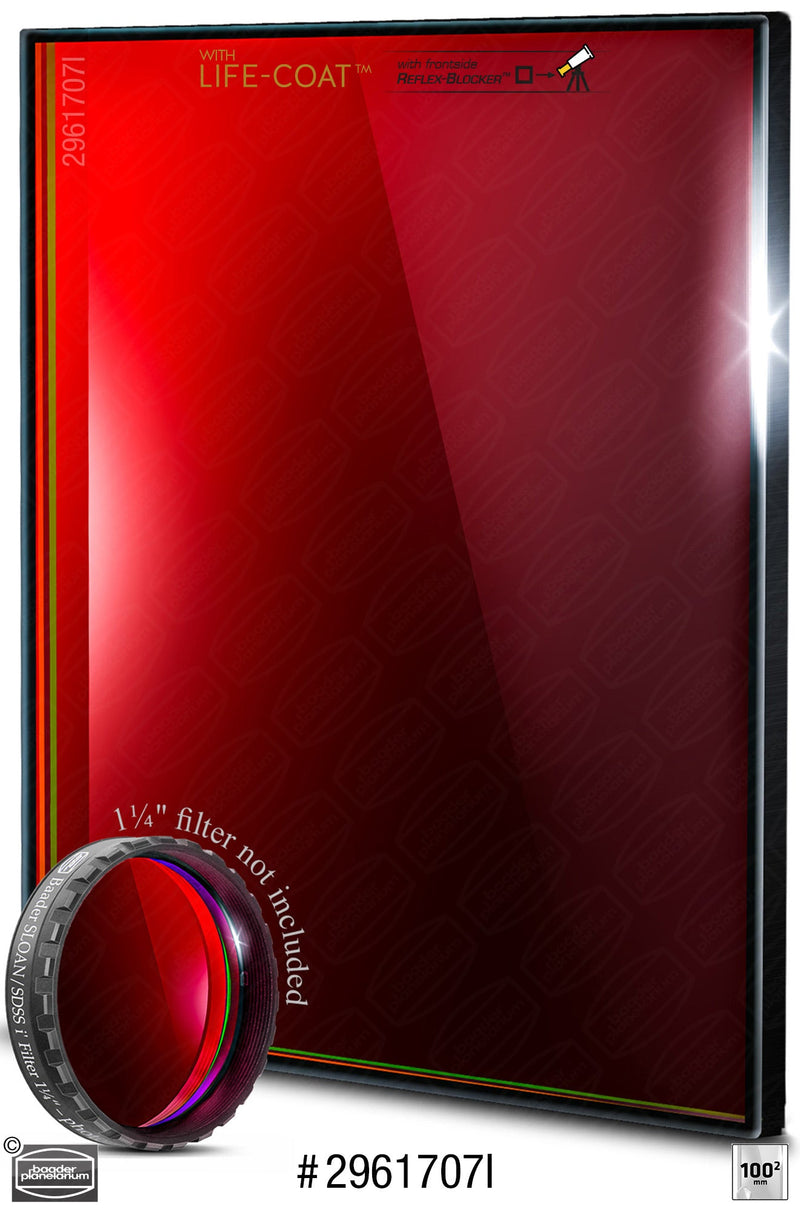

Baader SLOAN/SDSS Filters – Photometric

Original price $162.00 - Original price $4,137.00
Original price
$178.00
$162.00 - $4,137.00
Current price $178.00

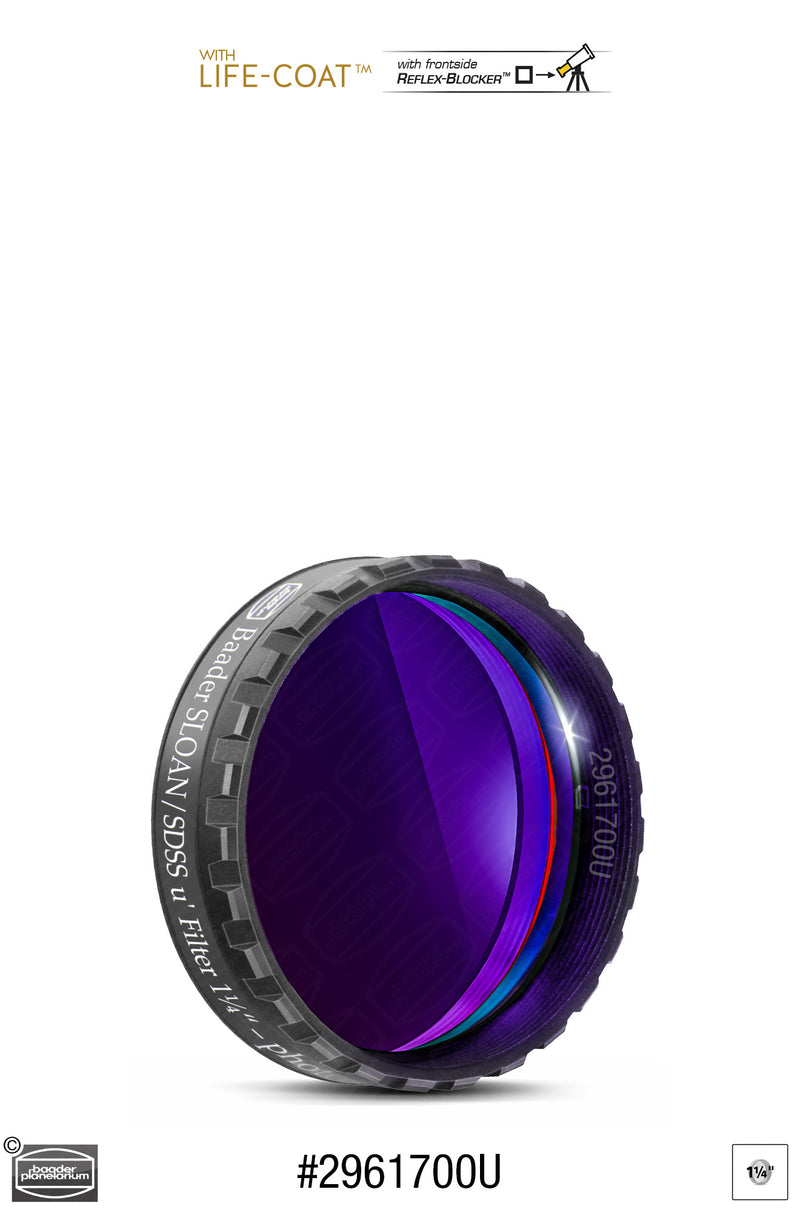

SKU FSLN-1U (Baader #2961700U)
Usage: u'
Filter size: 1 25 inch

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

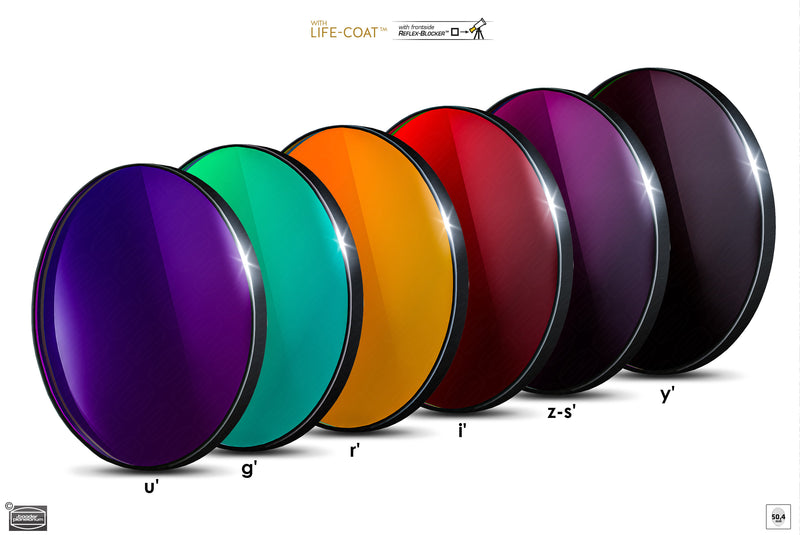

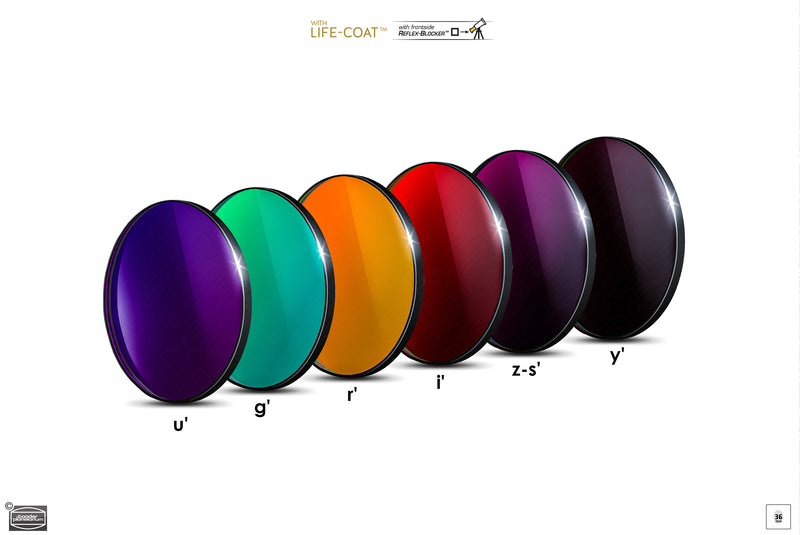

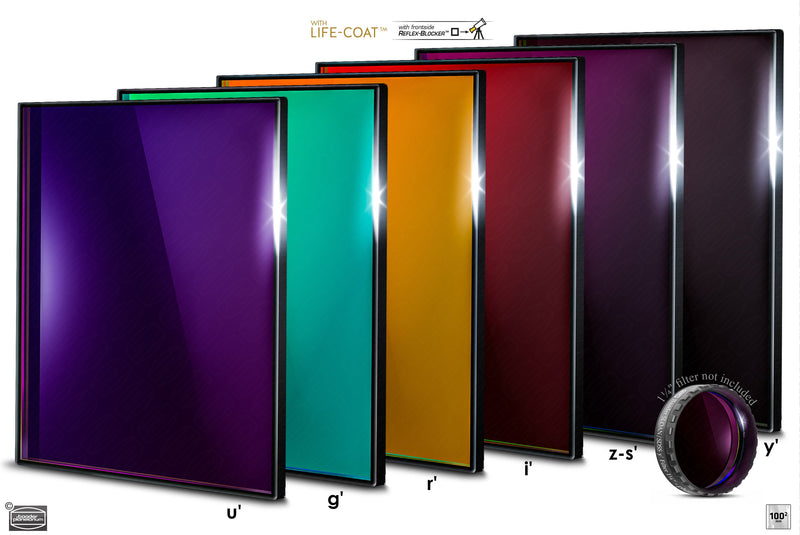

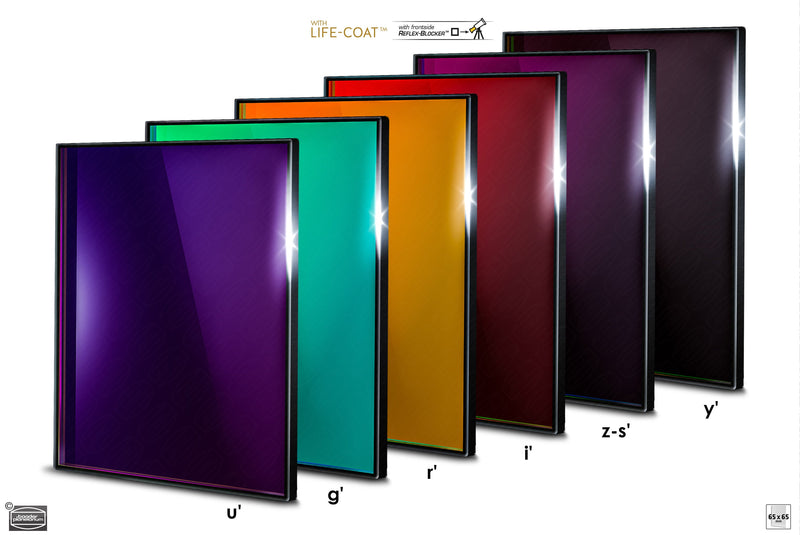

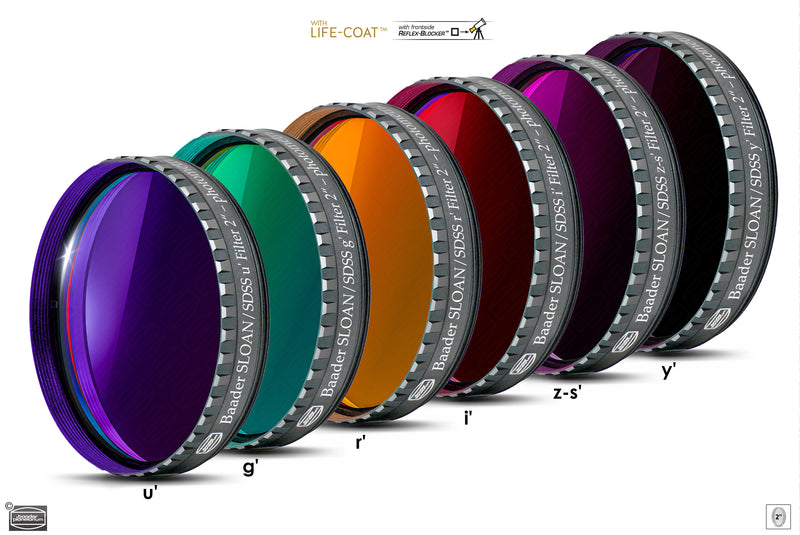

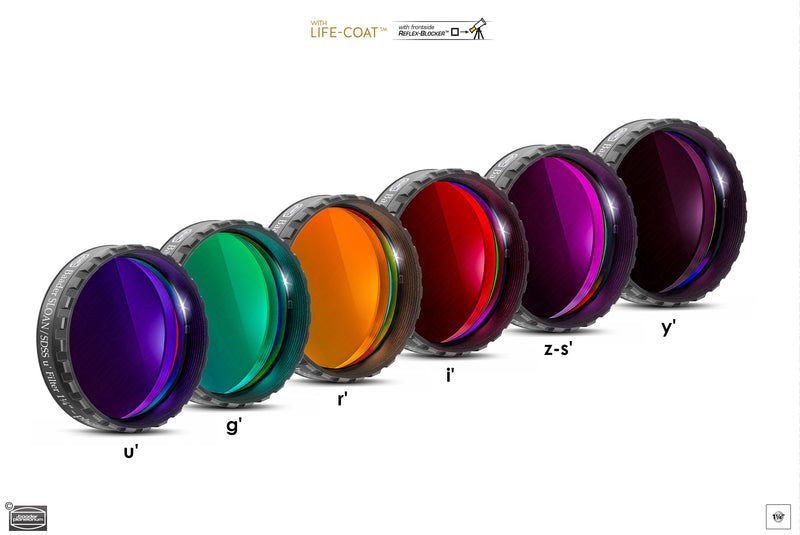

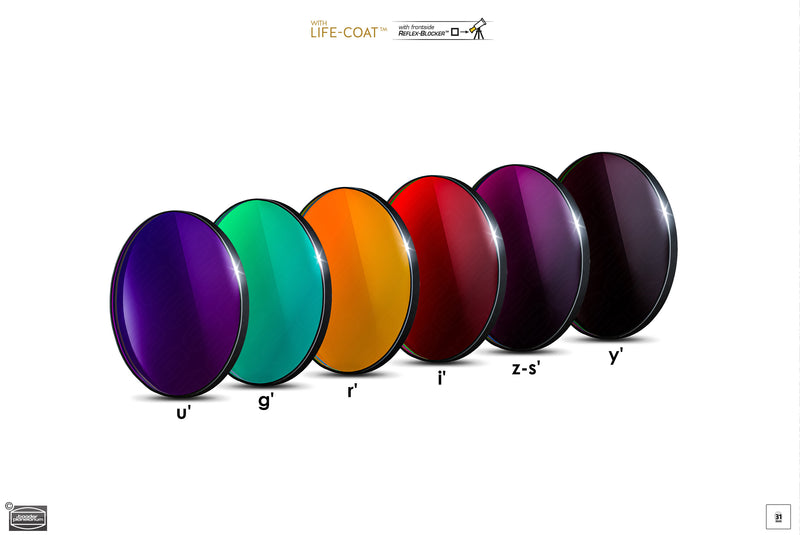

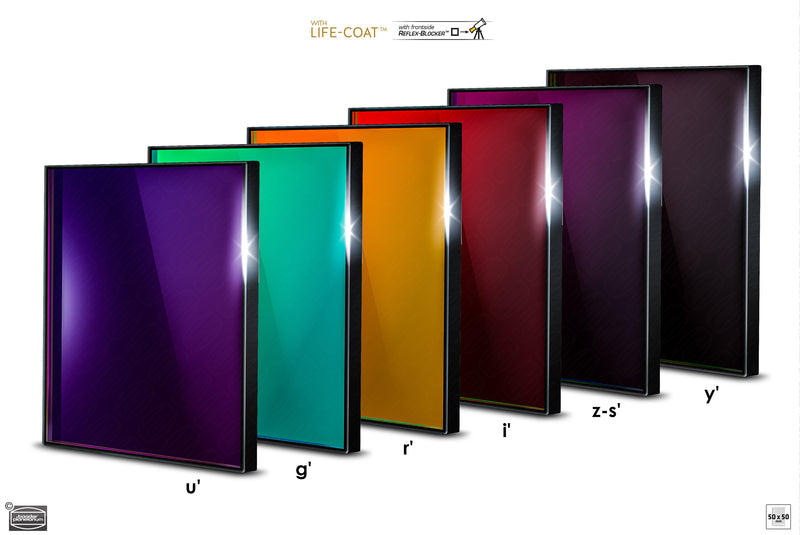

  • Baader SLOAN-ugriz' Bandpass Filter Set, suitable from f/15 to f/1.8

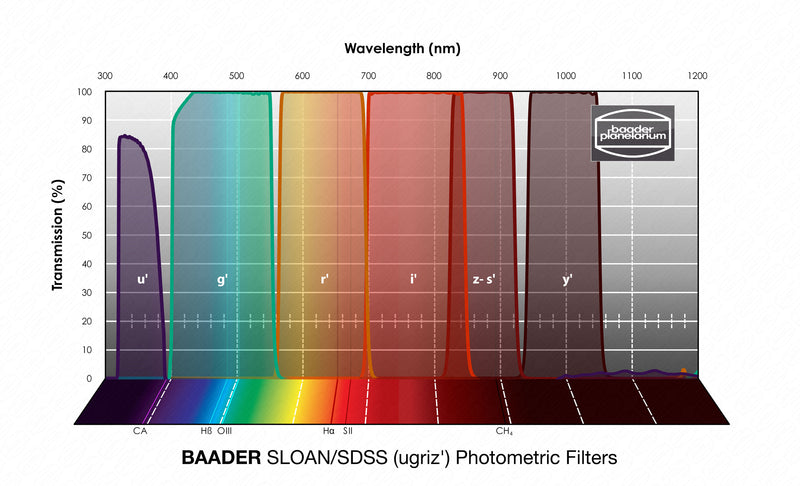

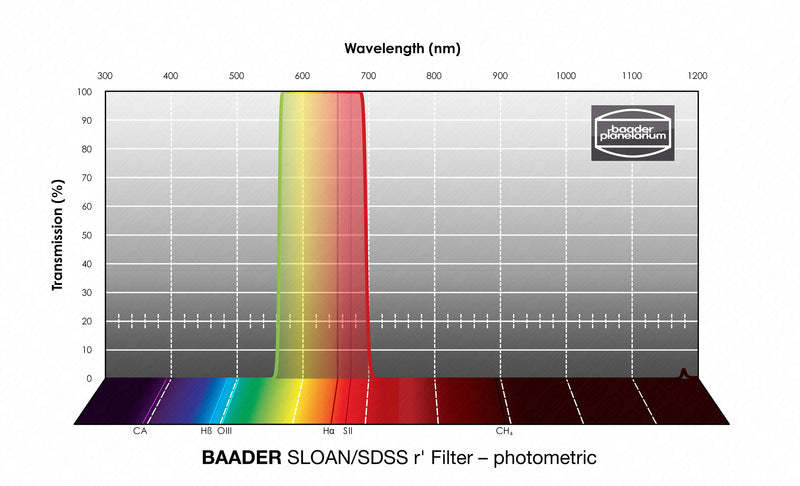

  • SLOAN/SDSS (ugriz’) photometric filters with transmission according to SLOAN-specification
  • Manufactured with most advanced ion beam coating technology / Daylight-Proof
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Equally suitable for modern CMOS cameras as well as for older CCD camera technologies

The new generation of Baader CMOS-optimized filters features:

  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Life-Coat

Limited-Lifetime-Warranty for CMOS-optimized Baader filters

A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.

Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.

Specifications
MANUFACTURER Baader Planetarium
COLOUR Black

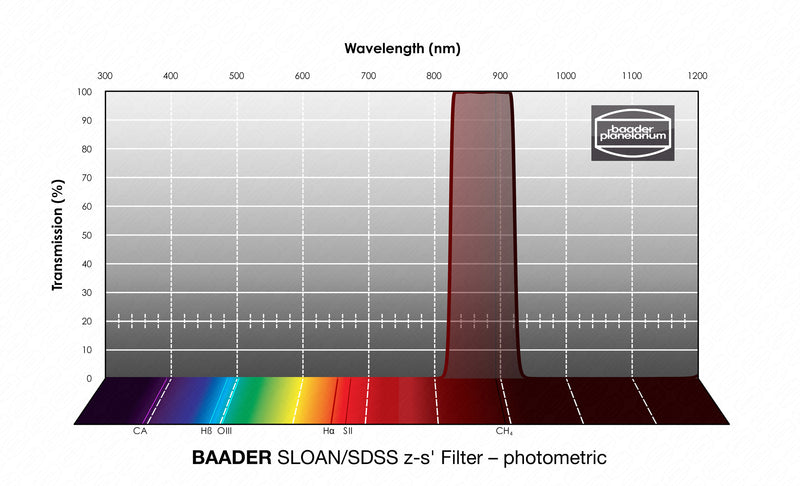

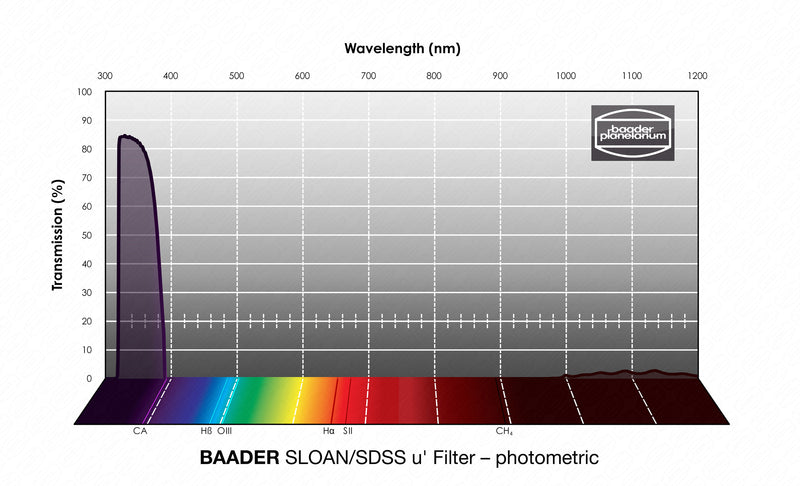

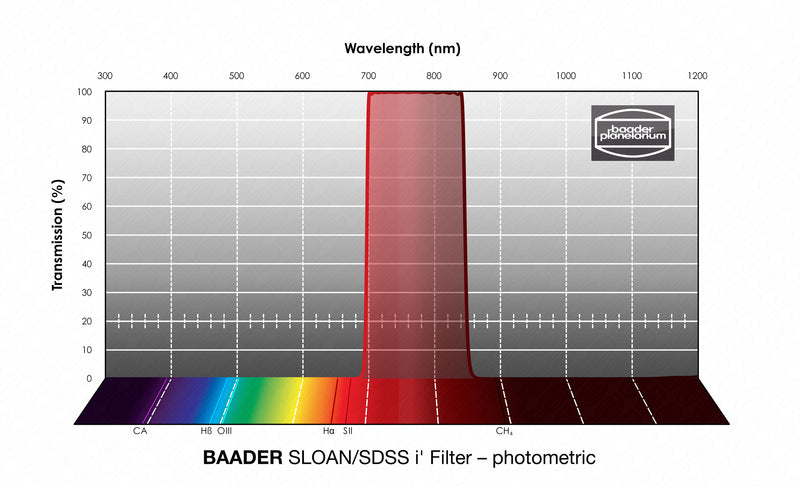

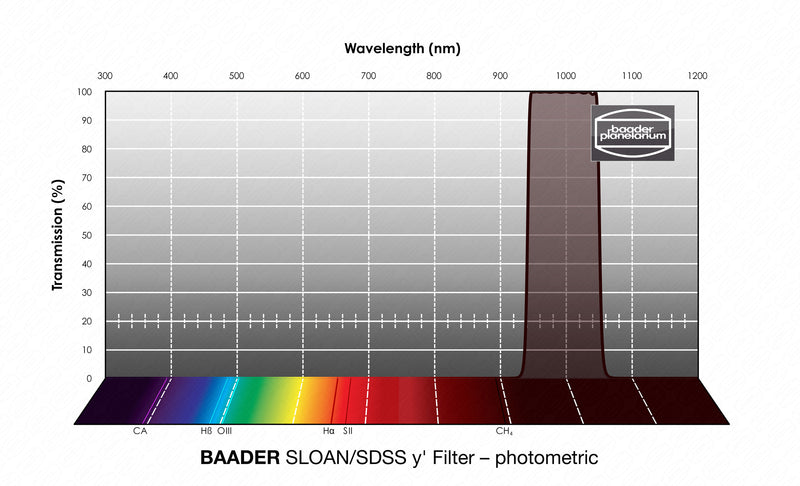

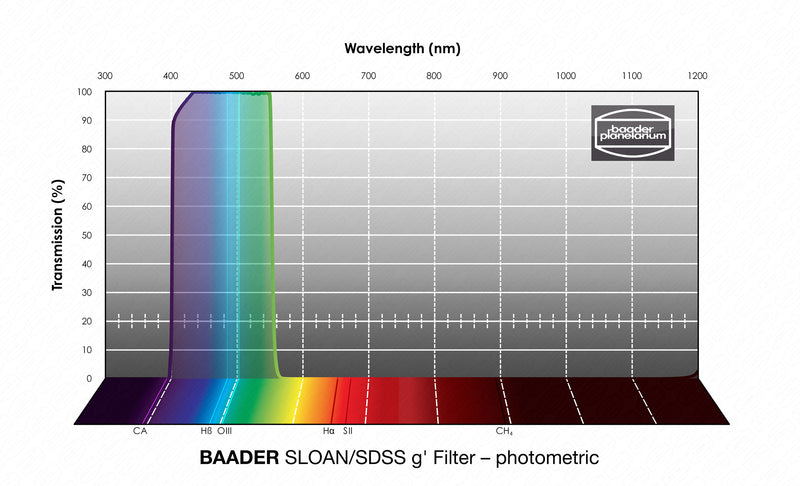

TRANSMISSION RANGE Transmission according to SLOAN-Specification
FILTER THICKNESS (WITHOUT CELL) 2 mm
CWL (CENTRAL WAVELENGTH) SLOAN
AR-COATING Reflex-Blocker™ hard coated, planeoptically polished
SPECIAL FEATURES Life-Coat™ Warranty

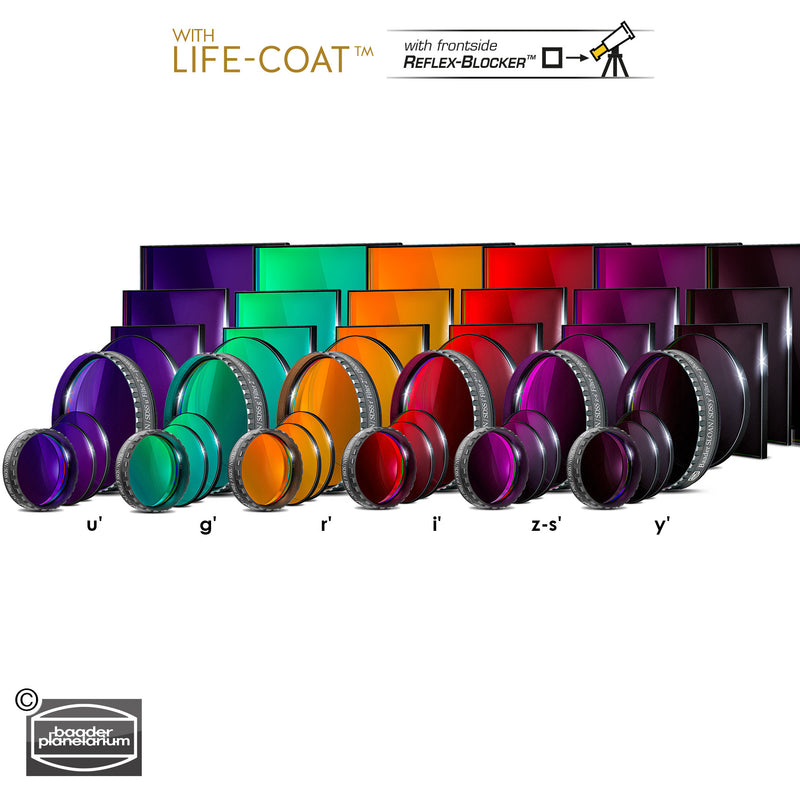

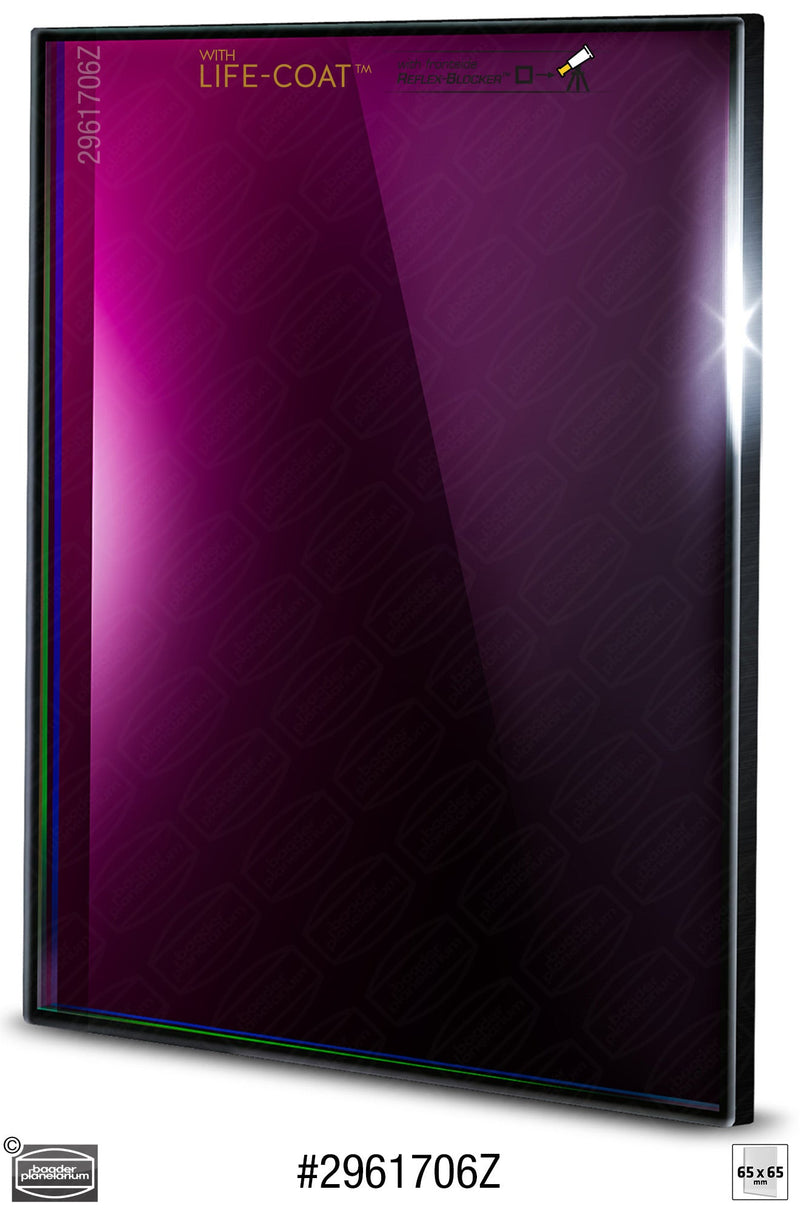

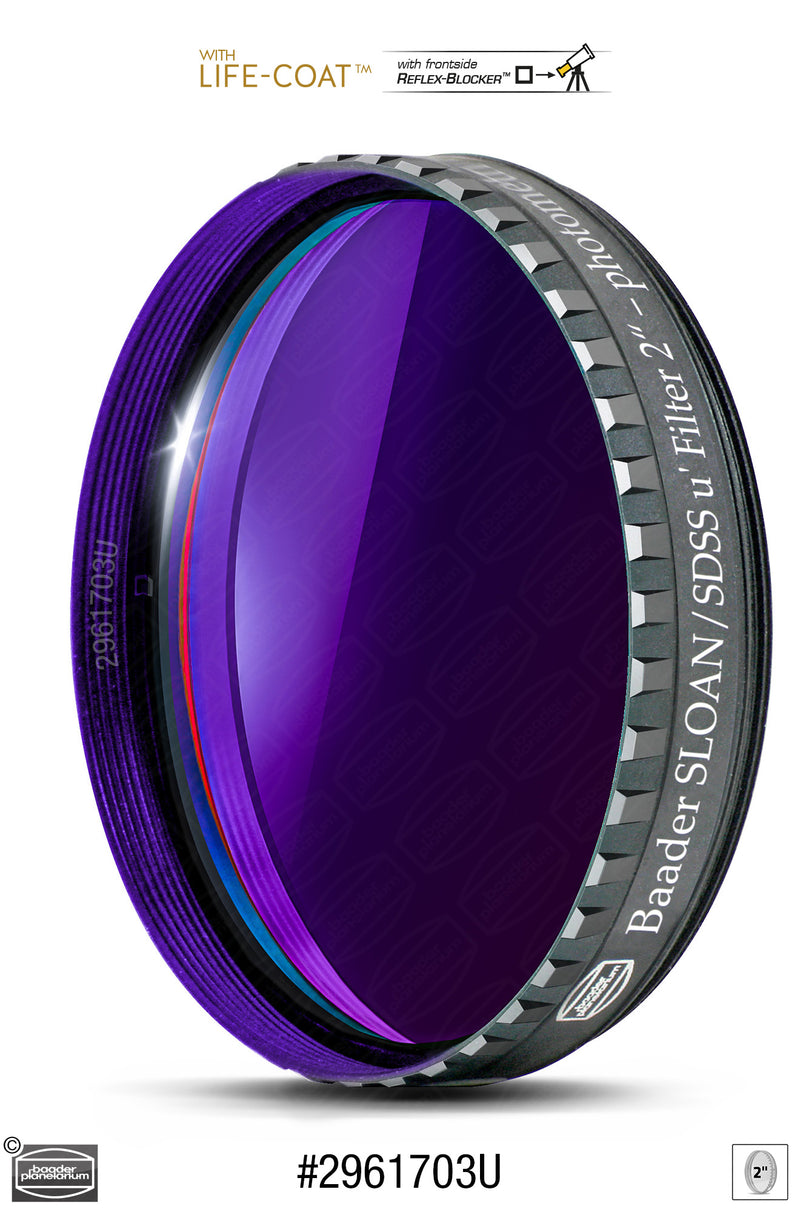

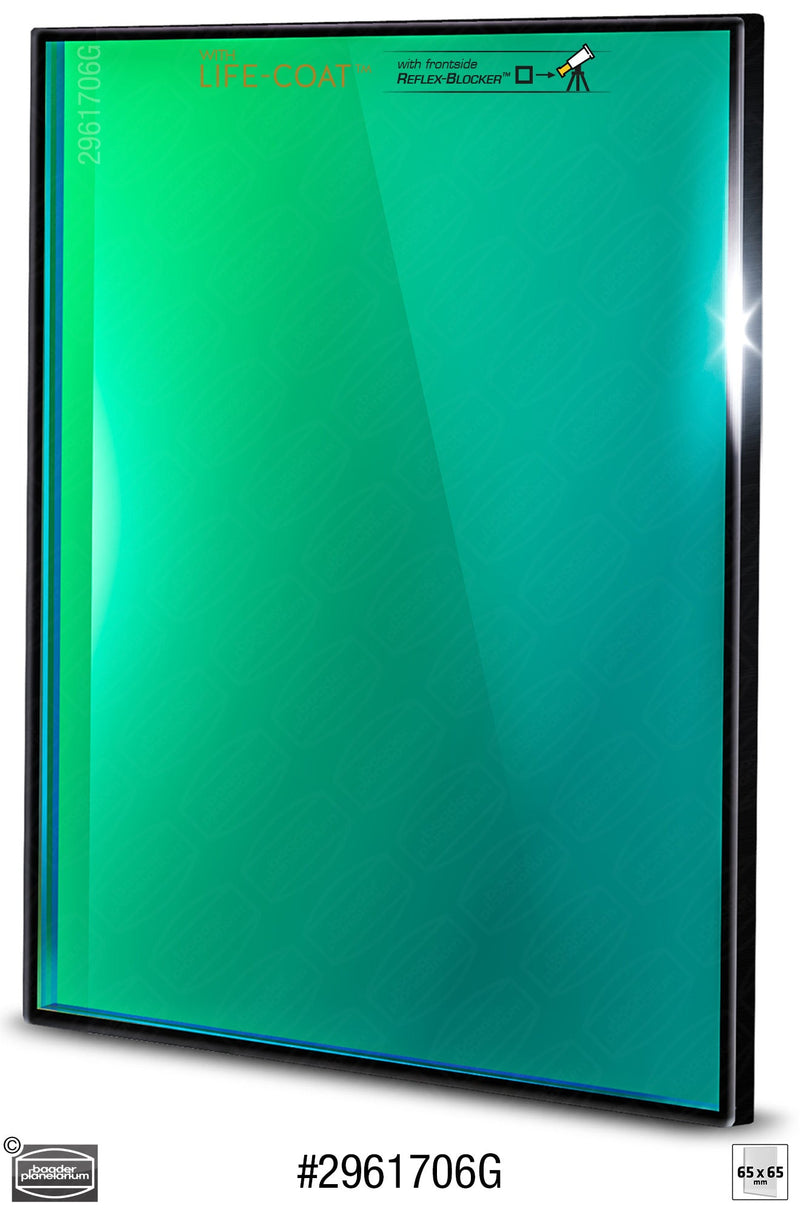

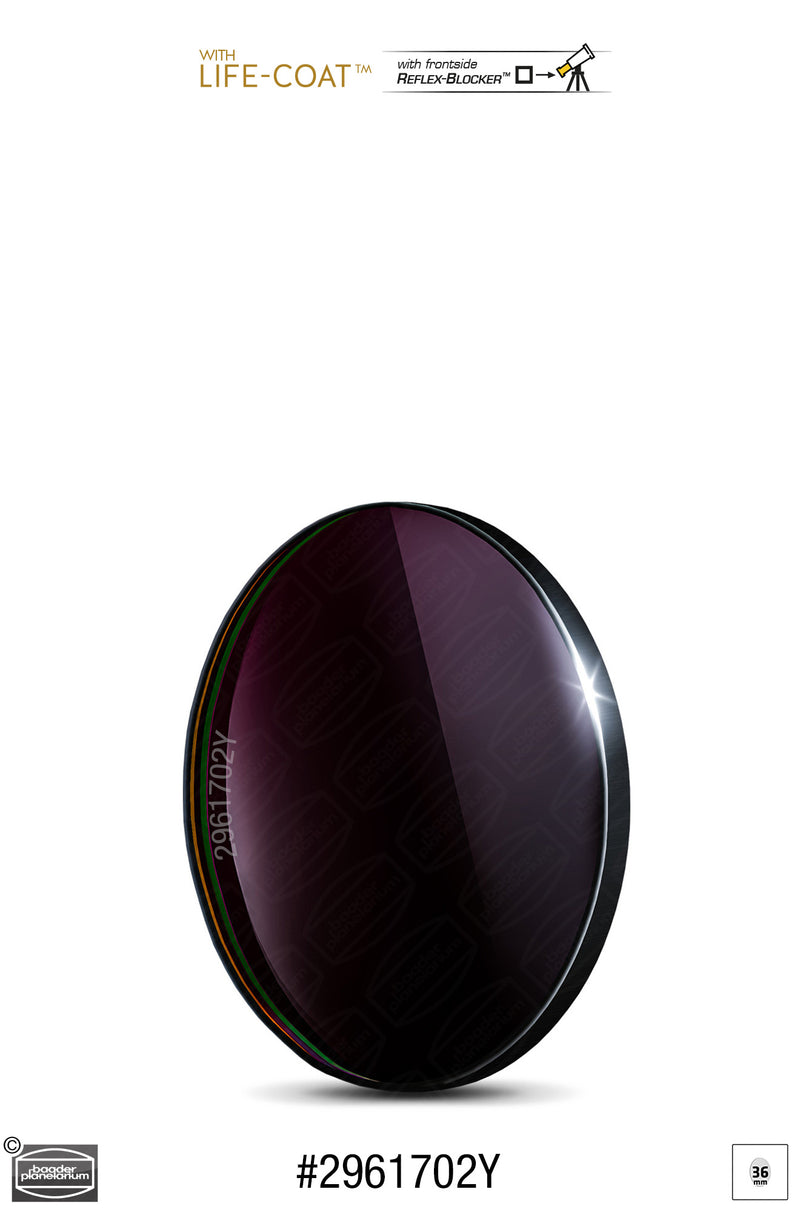

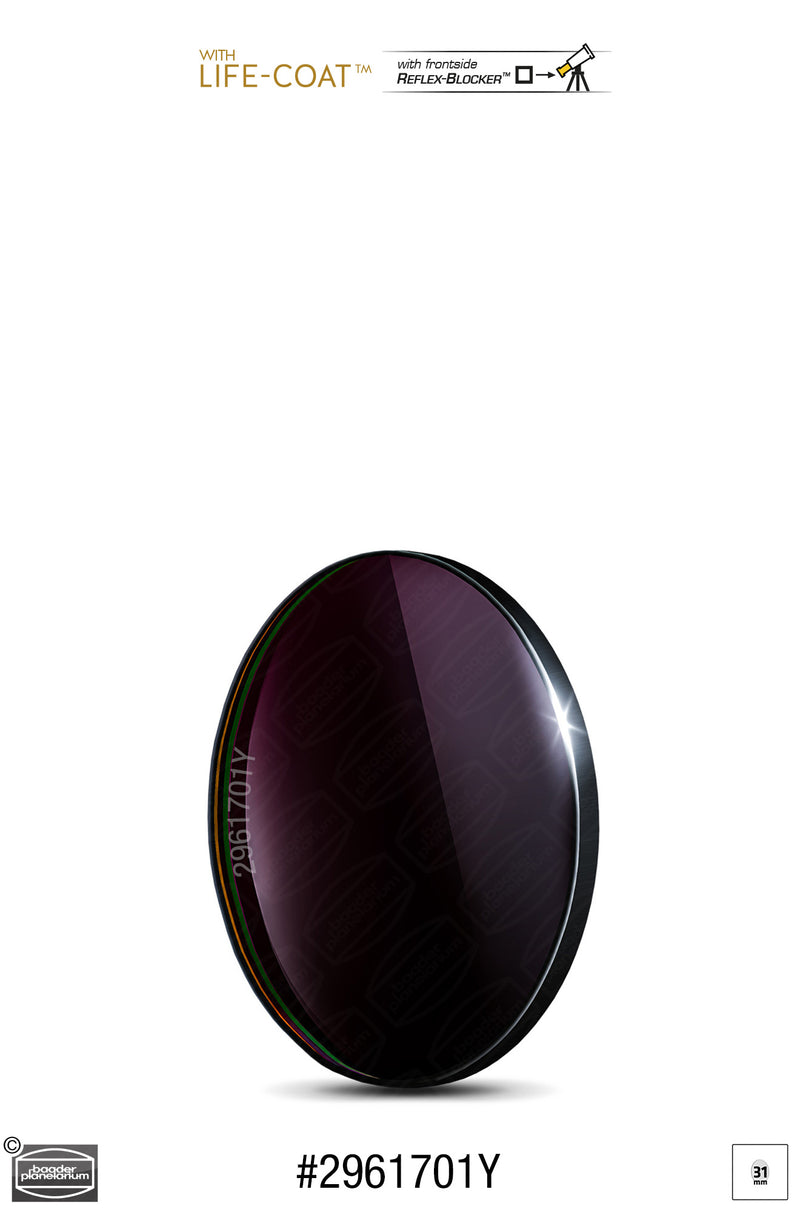

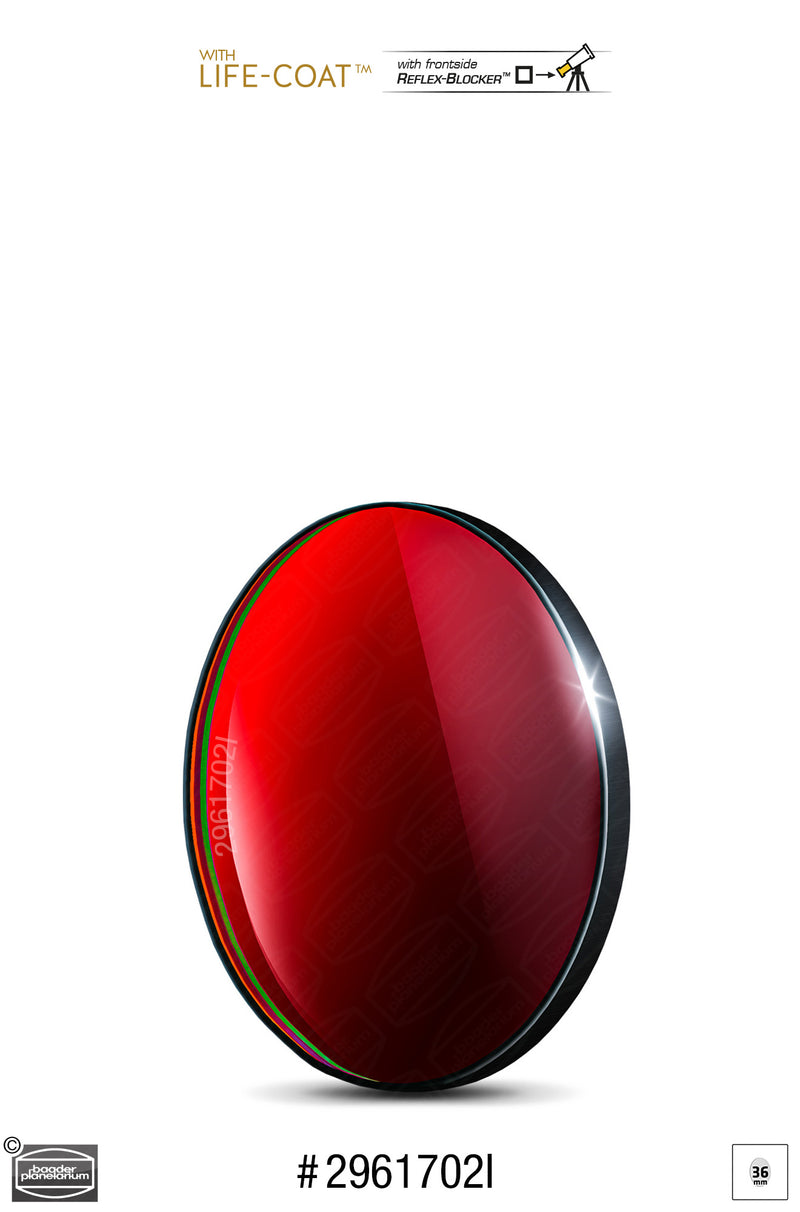

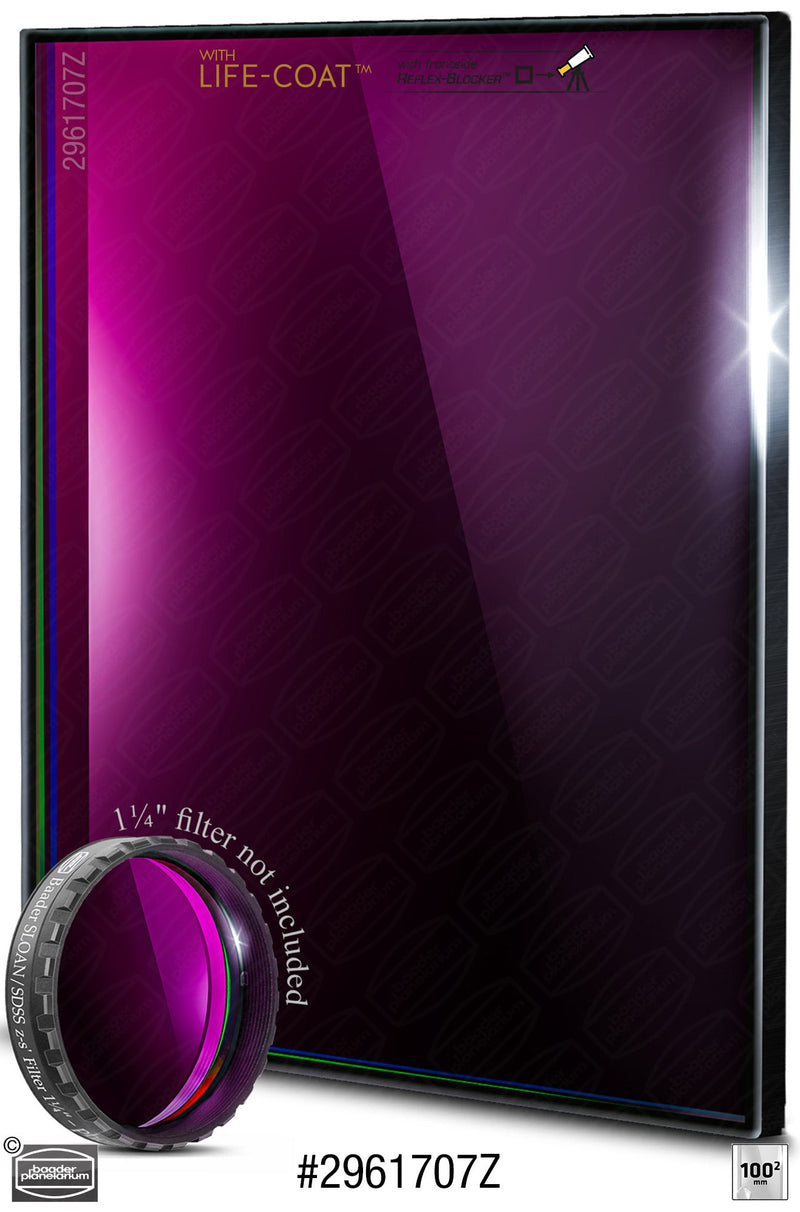

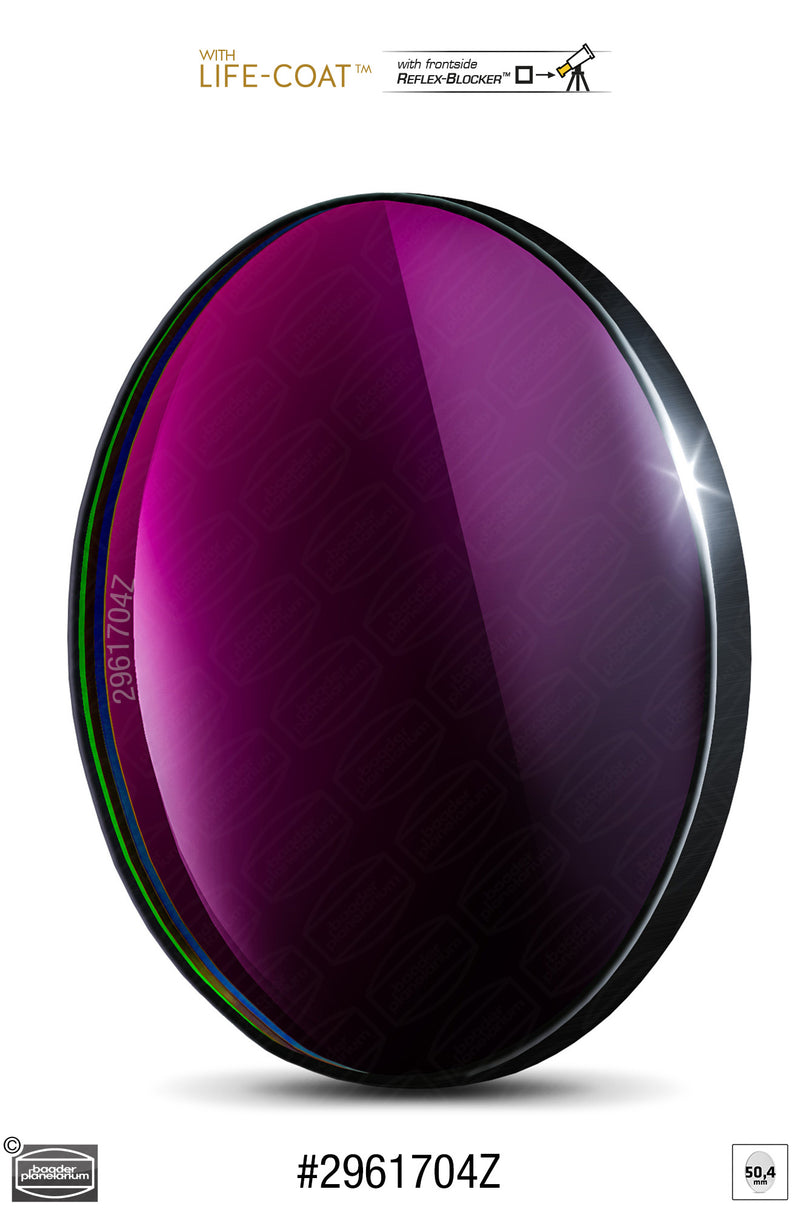

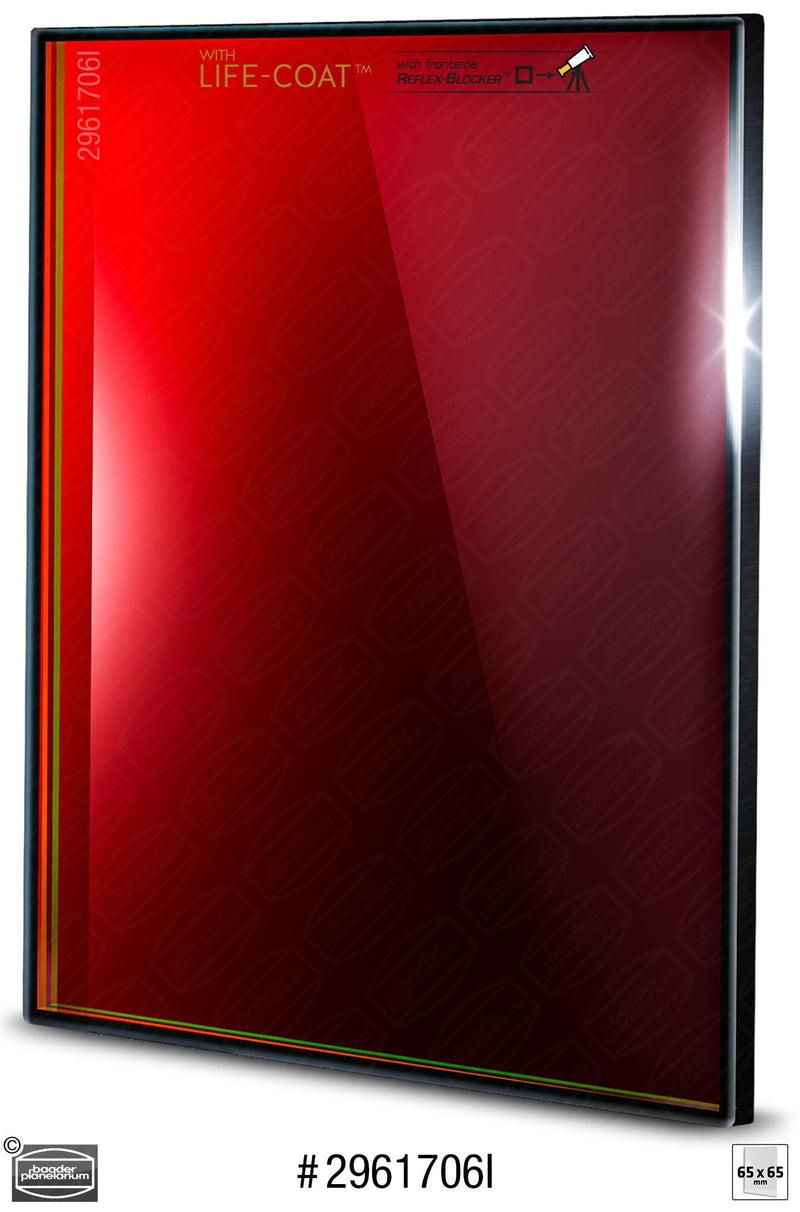

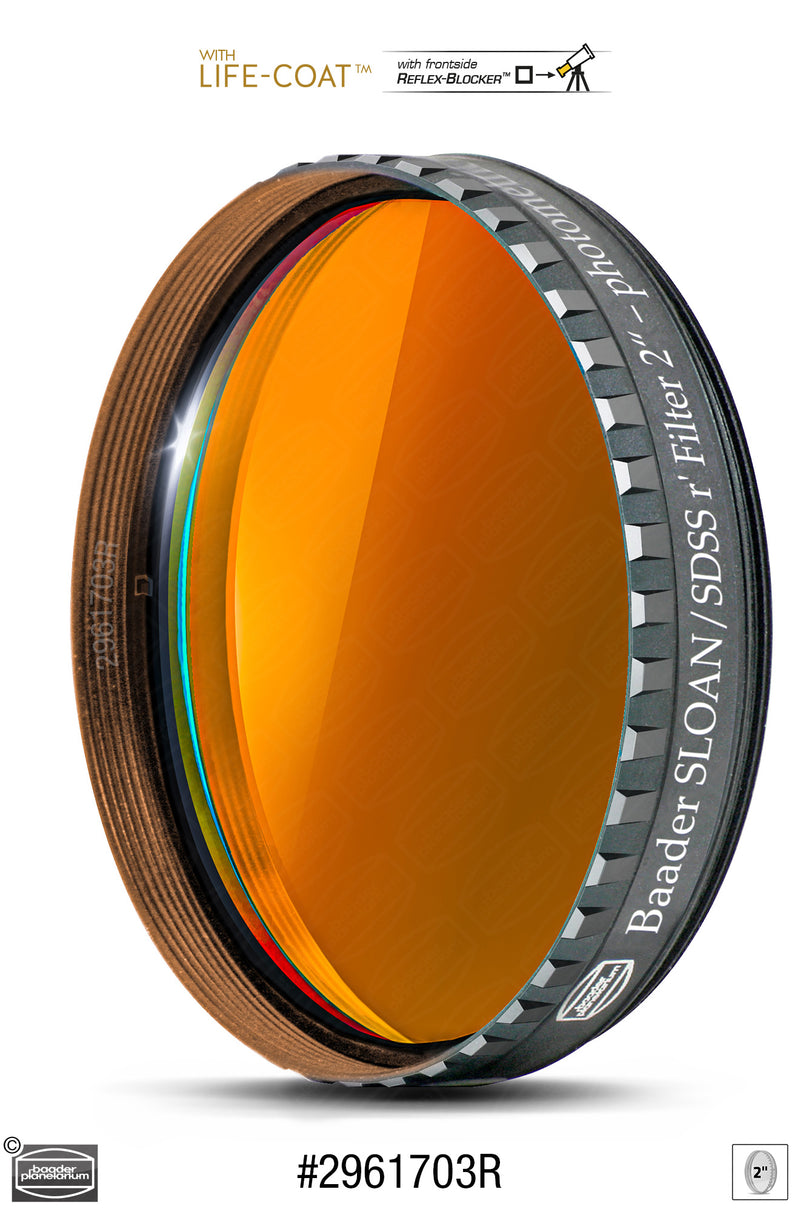

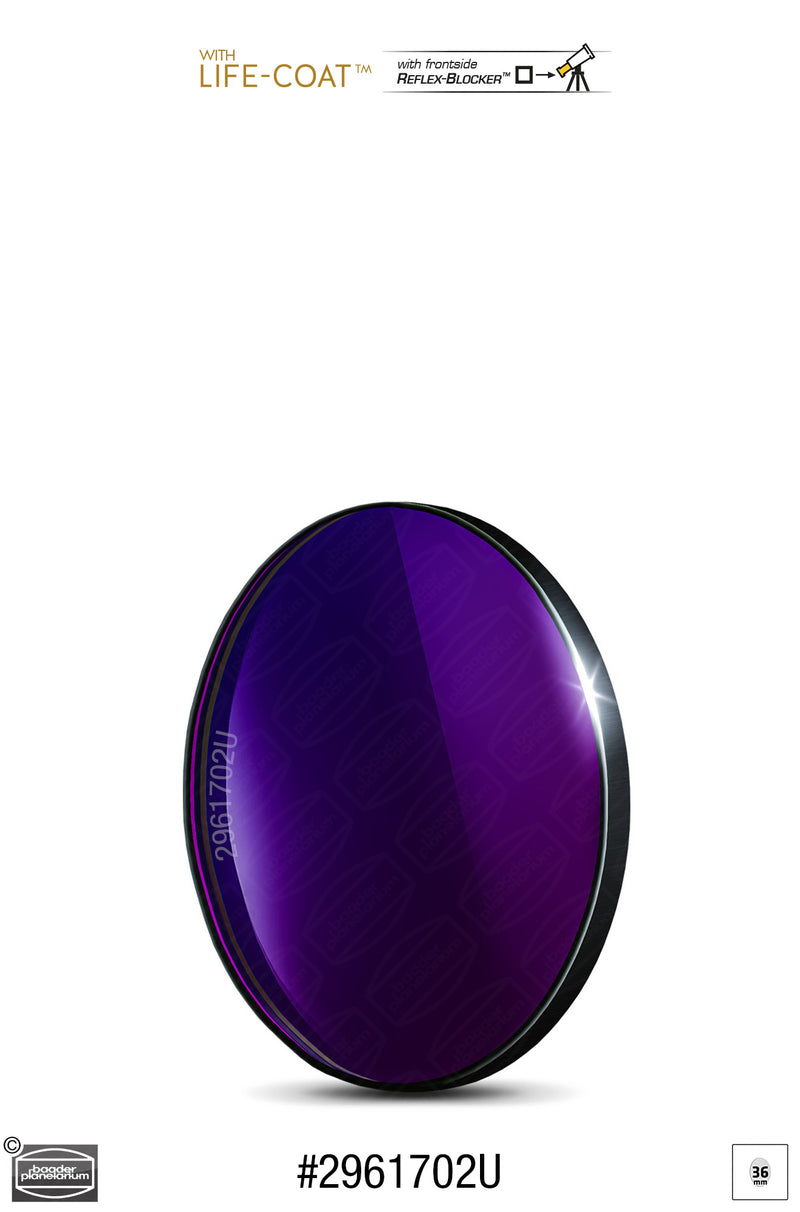

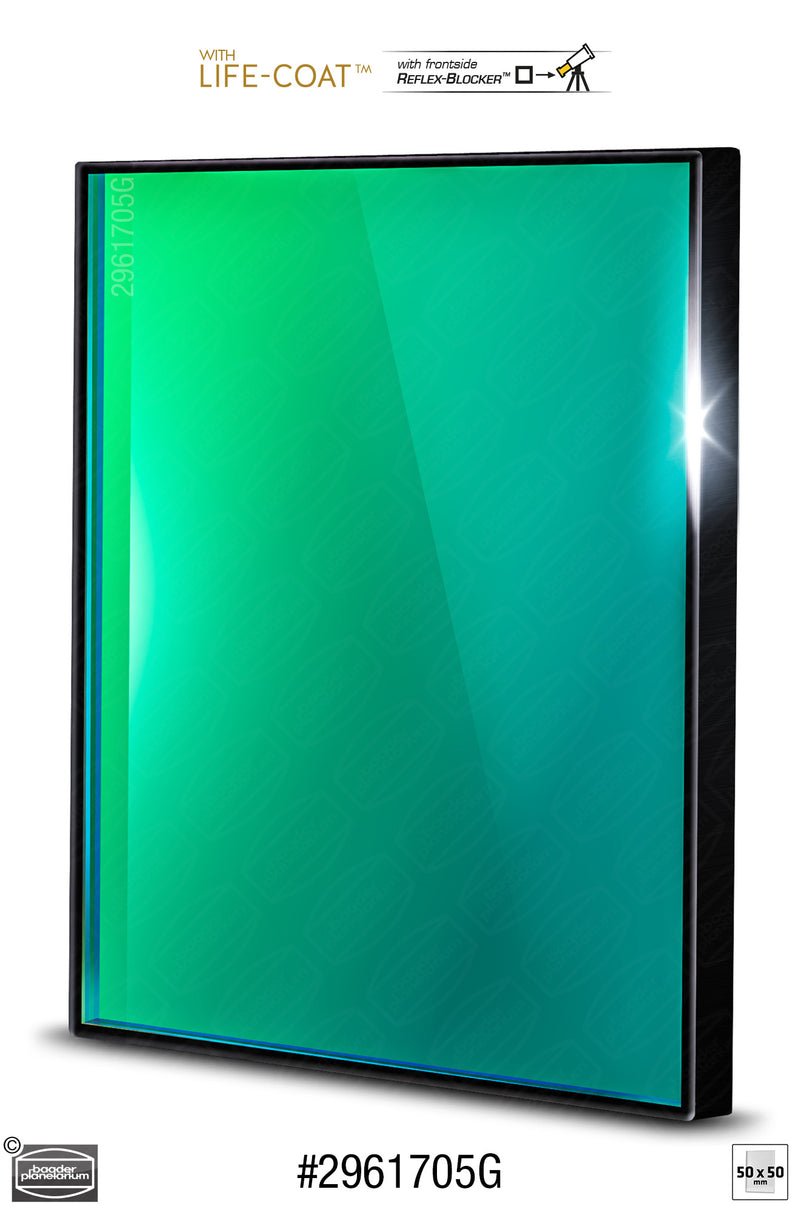

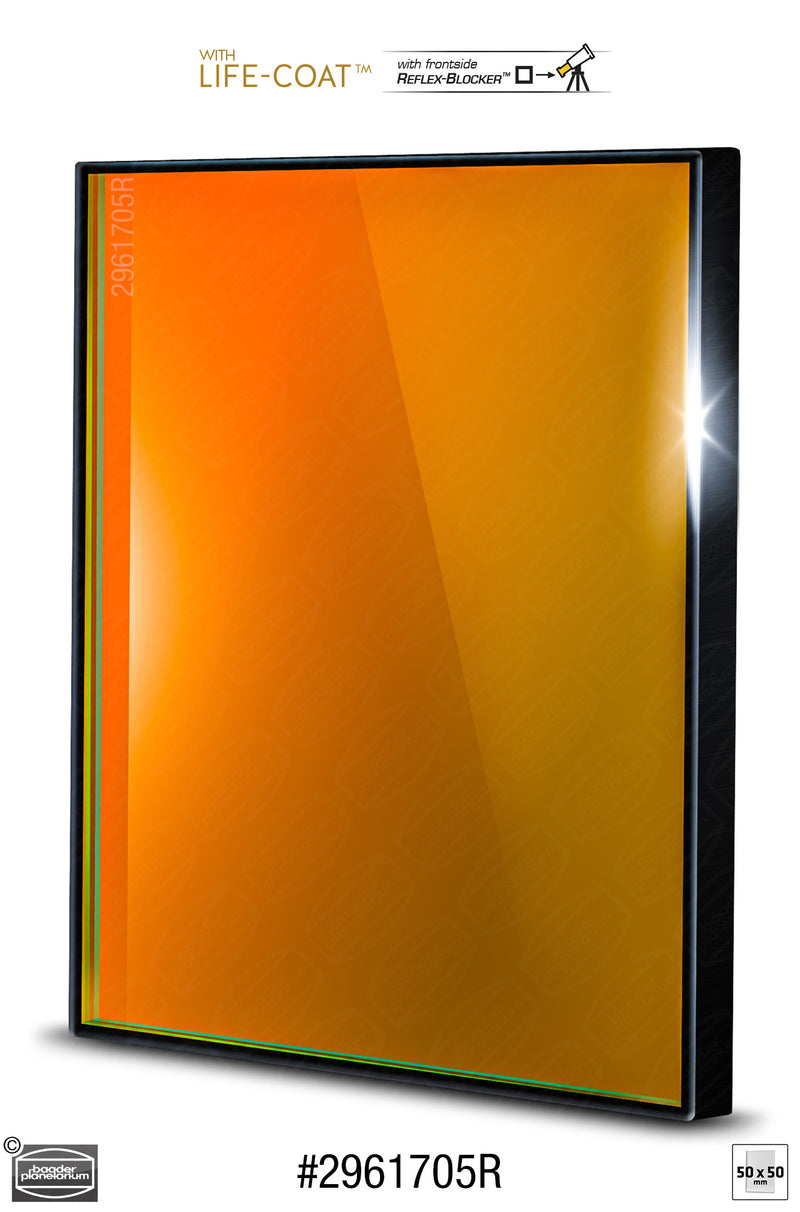

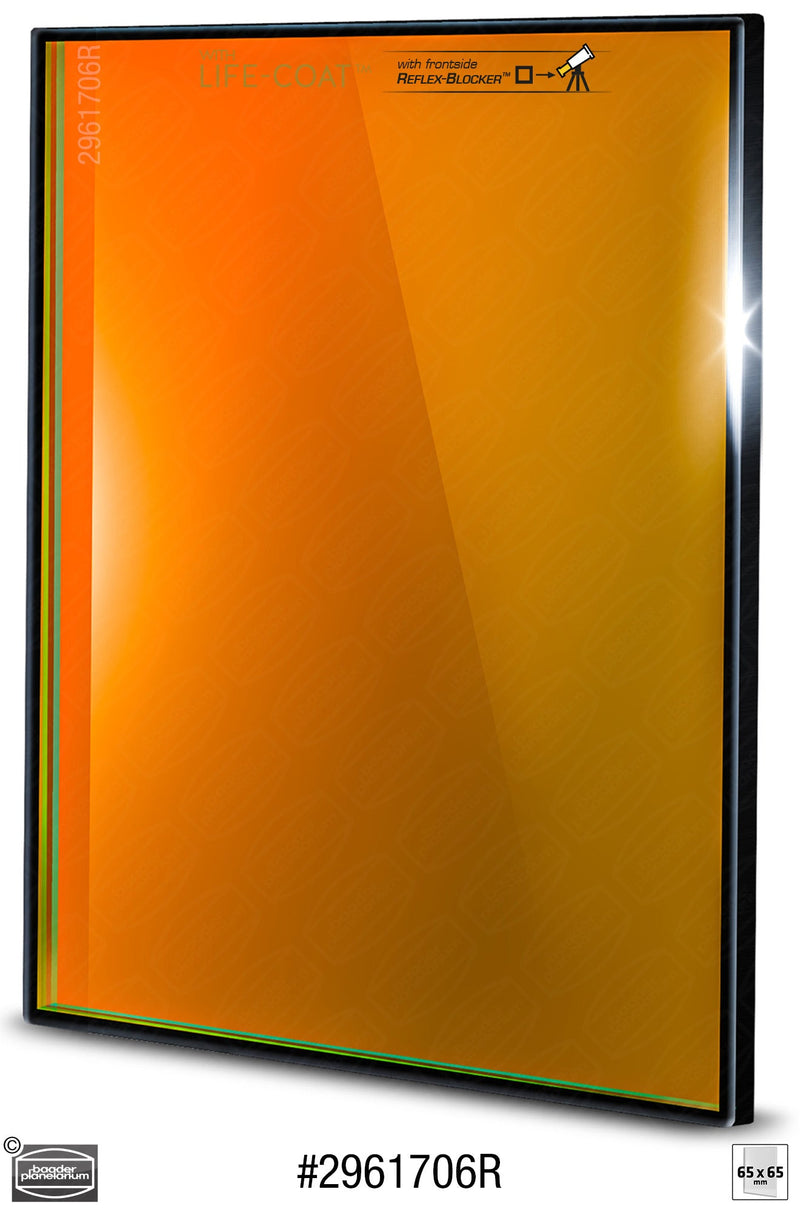

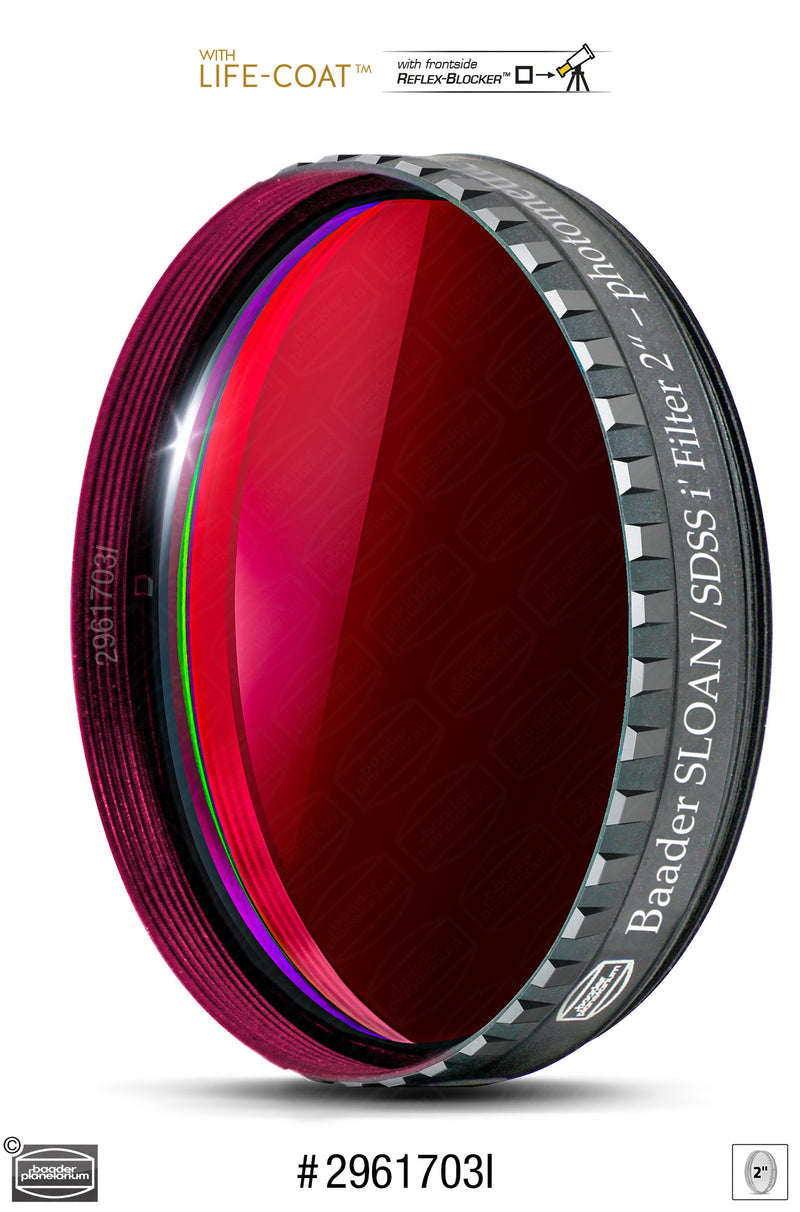

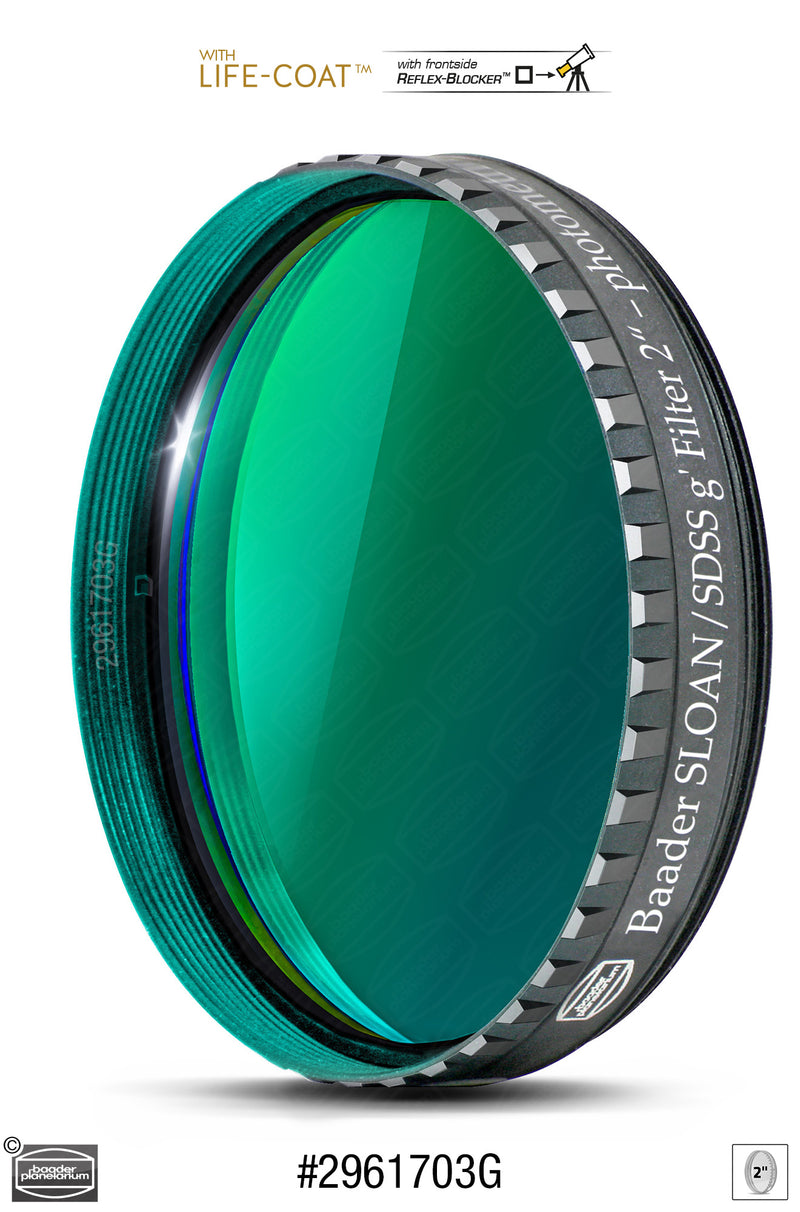

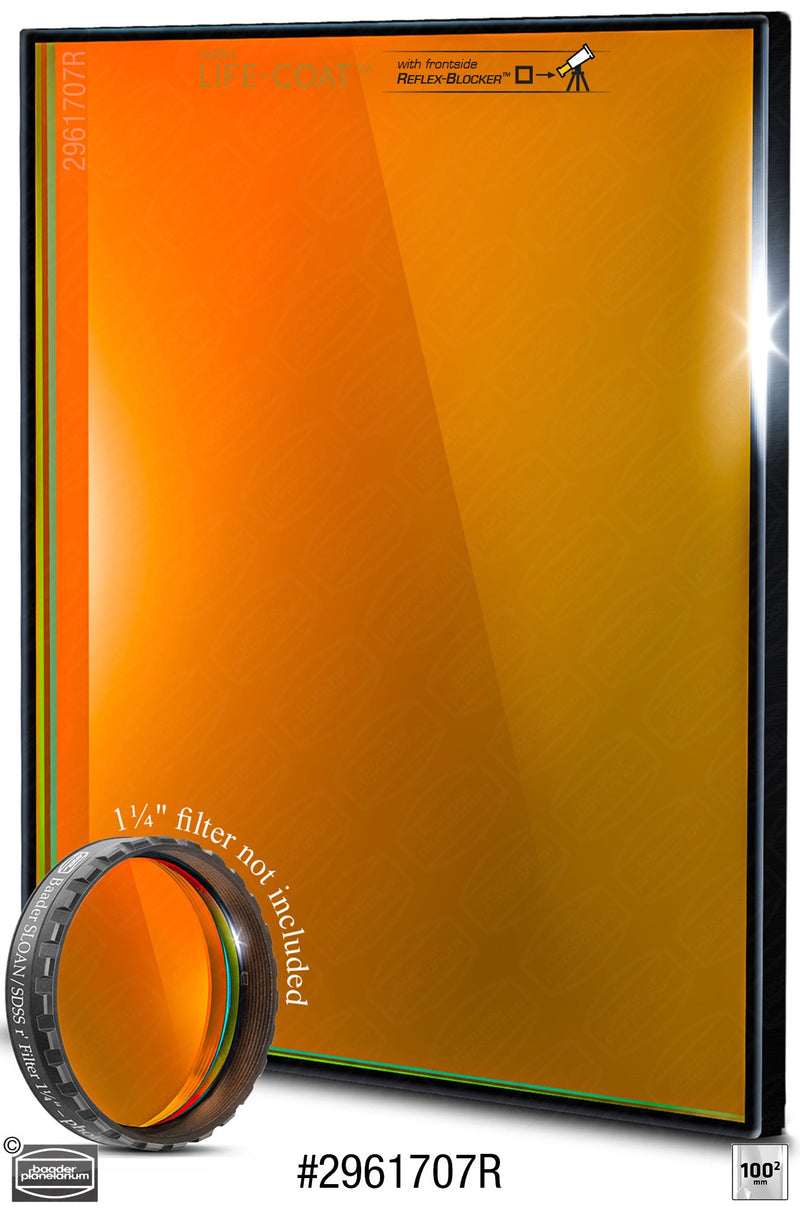

FILTER SIZE 1 25 inch, 2 inch, 31 mm, 36 mm, 50.4 mm, 50 x 50 mm, 65 x 65 mm, 100 x 100 mm
FILTER USAGE SLOAN, CMOS, CCD
FILTER MOUNTED Mounted (LPFC 6mm) / Unmounted
TYPE OF FILTER Bandpass
SINGLE OR SET? Single and Filterset
FILTER SHAPE round or square
