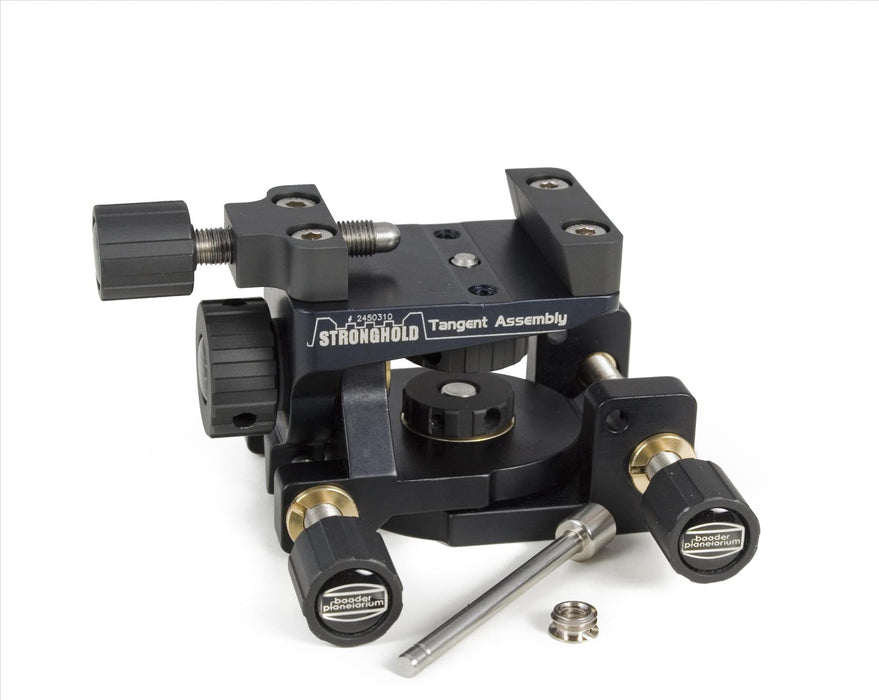

Baader Stronghold Tangent Assembly

Description

• STRONGHOLD has been developed to fasten lightweight viewfinder telescopes, guiding telescopes and heavy telephoto lenses safely to your main telescope
• Carrying capacity: 7kg Max
• Mounting options Top panel: 1/4 " screw, 6St M6 threaded hole (Recommended thread depth 6mm)
• Mounting options base plate: 1/4 "and 3/8" photo thread, 4pcs. M6 and 4pcs. M5 threaded hole (Recommended thread depth 6mm)
• 3D-printed ring wrench for Baader clamping knobs #2450071 is recommended.

Baader Stronghold Tangent Assembly

Black and Blue versions available

Technical Data:

• Colour: Black or Blue
• Weight: 680 g
• Material: Aluminium, hard anodized
• Loading capacity: max. 7kg for imaging
• Azimuth adjustment: +/- 23° , elevation: +/- 35°
• Length: 115mm (incl. knobs)
• Width: 128mm (incl. knobs)
• Height: 54mm (without EQ-clamp)
• Mounting options (top): 1/4" photo thread, 6pc. M6 threads
• Mounting options (base plate): 1/4" and 3/8" photo threads, 4pc. M6 and 4pc. M5 threads
• General mounting options: EQ-clamp (Vixen Standard) included, can be mounted on top or on base. Alternative: Baader 3" clamp with special threads for Stronghold base plate

Scope of supply:

• Stronghold Tangent Assembly
• Locking Dowel
• Holder for Locking Dowel
• Reducer 3/8" to 1/4"
• EQ-clamp
• 1/4" Photo-Thumb-Screw (In the as-delivered-condition, the Photo-Thumb-Screw is secured with an O-Ring which has to be removed prior to use)

Specifications

Downloads

Instruction manual for Baader Stronghold Tangent Assembly
