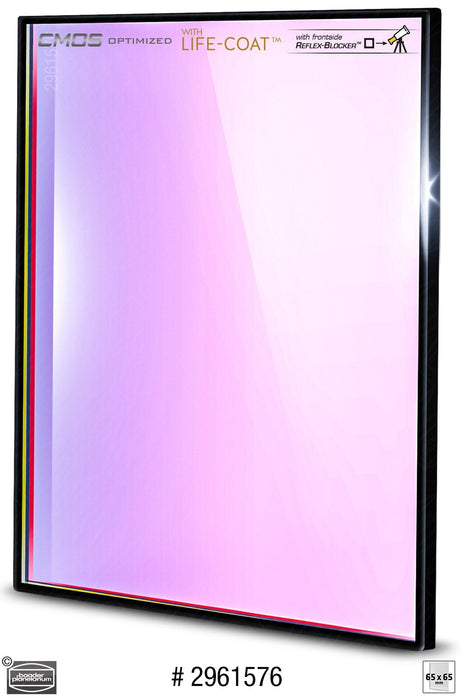

Baader UV/IR-Cut / L-Filter – CMOS-optimized

Original price $77.00 - Original price $289.00
Original price
$77.00
$77.00 - $289.00
Current price $77.00
SKU FCUVIR-1 (Baader #2961570)
Usage: UV/IR-L
Size: 1 25 inch

Note: To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

New CMOS-optimized UV/IR-Cut / L-Filter filters from Baader Planetarium with Reflex-Blocker™ and Life-Coat™.

    Baader CMOS UV/IR Bandpass / L-Filter

    • UV/IR Cut (420 – 685 nm)
    • Reflects harmful thermal radiation in the infrared spectral range
    • Provides 98% transmission over the entire visible spectrum from 420 - 685 nm
    • Prevents blurred star imaging with red-sensitive digital and CCD/CMOS cameras
    The new generation of Baader CMOS-optimized filters features:
    • Optimized for modern CMOS cameras, but likewise excellent for older CCD camera technologies
    • Anti-reflection RGB filter (red/green/blue) with extremely high transmission of the respective color channel, thus simultaneously reducing stray light and reflections to an unprecedented level
    • Balanced RGB design allows subframes to be taken with the same exposure time – extremely important for automated imaging tasks
    • Increased contrast
    • Reflex-Blocker™ coatings
    • FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
    • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter with filter-lead-side-indicator in the form of a telescope-sided black outer rim
    • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed read more)
    • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
    • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
    Life-Coat

    Limited-Lifetime-Warranty for CMOS-optimized Baader filters

    A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.

    Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.

    Specifications
    MANUFACTURER Baader Planetarium
    Size

    1.25"
    2"
    31 mm
    36 mm
    50.4 mm
    50 x 50 mm
    65 x 65 mm

    NET WEIGHT (KG) 0.06 - 0.09
    COLOUR Black
    TRANSMISSION RANGE L (420 – 685 nm), R (595 – 690 nm), G (490 – 580 nm), B (400 – 510 nm)
    FILTER THICKNESS (WITHOUT CELL) 2 mm
    AR-COATING Reflex-Blocker™ hard coated, planeoptically polished
    SPECIAL FEATURES CMOS-optimized with Life-Coat™
    FILTER USAGE CMOS, CCD, IR-Cut, Luminance, RGB, UV-Cut
    FILTER MOUNTED 1.25" & 2" Mounted (LPFC 6mm) / rest unmounted
    TYPE OF FILTER Bandpass
