Guidescope rings BP IV - for tube diameters from 175-265mm (2pc), with large knobs and ball bearing tips

Guidescope rings BP IV - for tube diameters from 175-265mm (2pc), with large knobs and ball bearing tips

by Baader Planetarium
SKU GR8 (Baader #1500204)
$747.00 - $747.00
$747.00
$747.00 - $747.00
$747.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

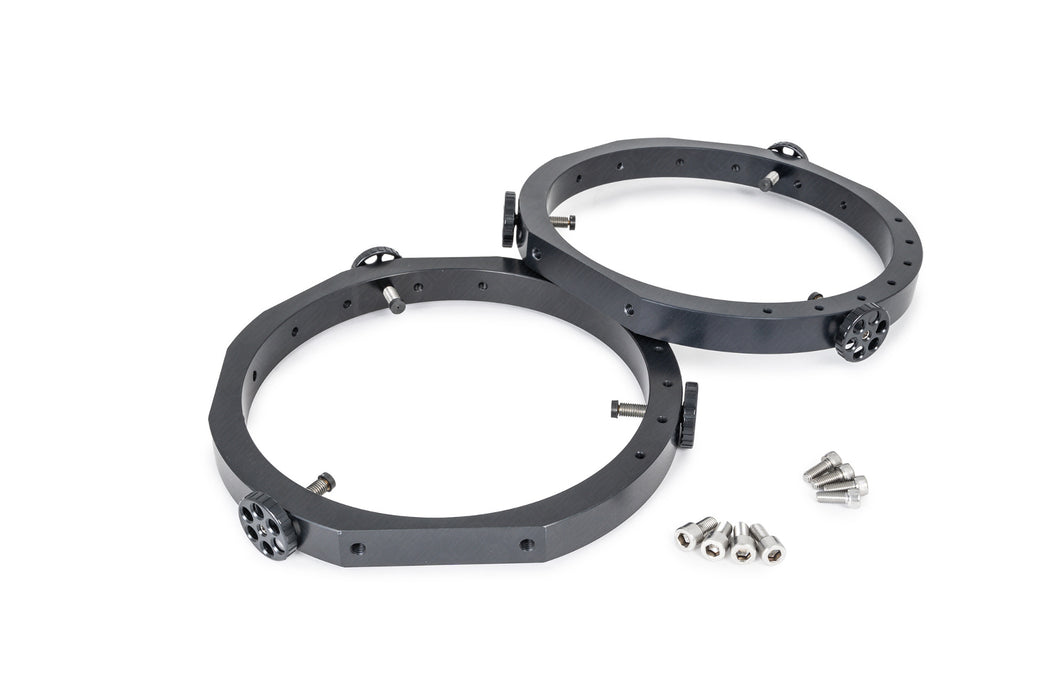

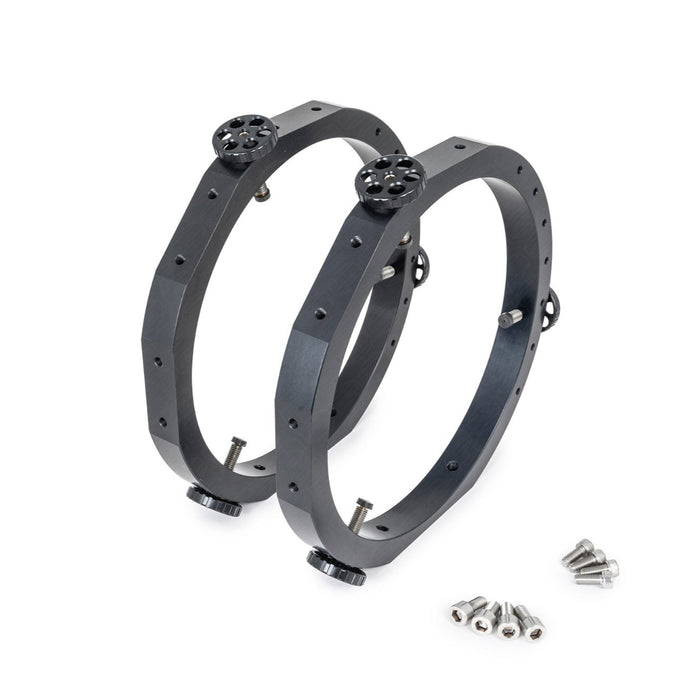

  • Guidescope rings BP IV (2 pc)
  • For tube diameter 175 - 265 mm
  • Massive, solid, turned aluminium rings
  • Width 28 mm
  • Support surface with photo-threaded connection ¼. Additionally 2 through-holes 5 mm diameter#
  • 6 adjusting screws (M8) with 10mm Ø, ball bearing surface made of V2A steel, covered with a hard rubber sheath (i.e. the screw pressure surface does not rotate during the adjustment of the telescope!)

The guiding telescope is held in place absolutely solid, non-slip and will not be scratched! A further four milled planar surfaces with a photo-threaded hole are installed on the outer diameter in order to be able to attach additional accessories to the rings on the outside or to connect several rings together!

Specifications
SKU 1500204
EAN Code 4047825010066
Manufacturer Baader Planetarium
Net weight (kg) 2.1
Screw Type 6x large handknobs
Special Features ball bearing tips
Tube diameter (max) 265 mm
Tube diameter (min) 175 mm
Tube Diameters 175 - 265 mm
×





×

×
