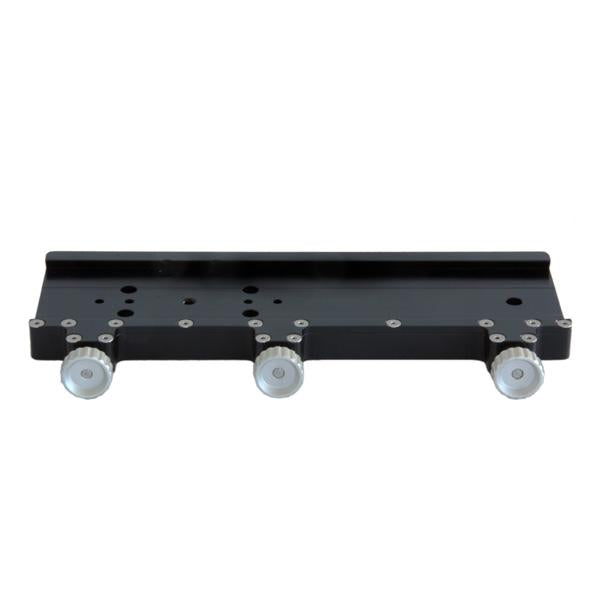

Maxi-Dovetail clamping plate 4" XL

Maxi-Dovetail clamping plate 4" XL

by 10Micron
SKU 10M2235
$411.00 - $411.00
$411.00
$411.00 - $411.00
$411.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

The “Maxi”-dovetail clamping plate XL is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup.

  • CNC machined, black anodized aluminum
  • 3 locking knobs
  • Length: 350mm (13.8”)
  • Suitable for 4” 10Micron dovetail slide bars

Note for GM3000 & GM4000 users: Although it is possible to mount this plate directly onto the top of the GM3000 & GM4000 mounts, due to the low profile of the clamping plates we strongly recommend to use the following special Flange Adapters in order to operate the plate’s knobs with enough clearance:

#10M3545 | Flange adapter for clamping plates (GM3000)

#10M4545 | Flange adapter for clamping plates (GM4000)

Specifications
  • CNC machined, black anodized aluminum
  • 3 locking knobs
  • Length: 350mm (13.8”)
  • Suitable for 4” 10Micron dovetail slide bars
Included Items
  • “Maxi”-dovetail clamping plate 4″
×





×

×
