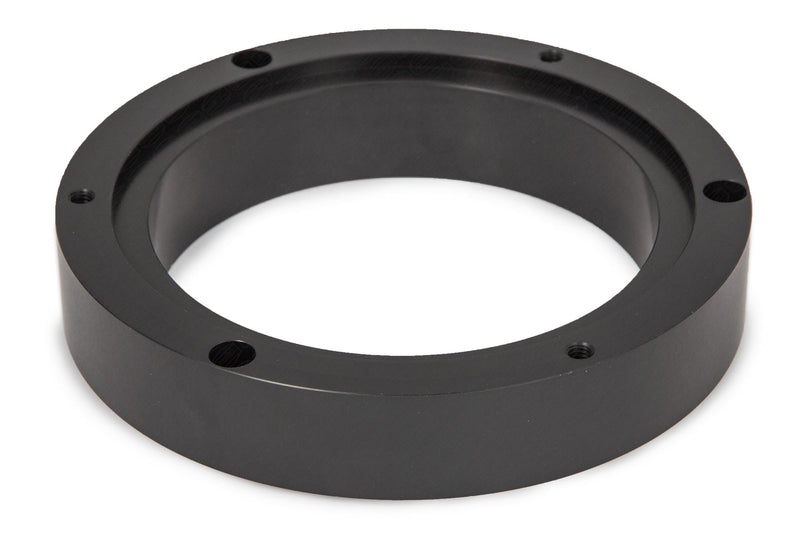

Baader IMP85 Extension IR90 37mm

SKU IMP-EXT (Baader #2451320)
Original price $597.00 - Original price $597.00
Original price
$597.00
$597.00 - $597.00
Current price $597.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

37.5 mm Extension for the IR90 - Integrated Rotating Focuser from PlaneWave to the telescope to gain more back focus for the Instrument Multi Port IMP85 (#2451300)

variety of adaptations are possible. The IMP85 is delivered without adapters. A variety of telescope-side and camera-side adapters are available from stock. For custom applications, we provide the design for the flange on request.

  • 37.5 mm Extension for the IR90 - Integrated Rotating Focuser from PlaneWave to the telescope to gain more back focus for the Instrument Multi Port IMP85 (#2451300)
  • Developed and manufactured in Germany
  • Connections on telescope side: PW focuser LK200 5/16 pitch18 UNC
  • Optical length: 37.5mm
  • Inner and outer diameter: 215 mm x 43 mm
Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2451320
EAN CODE 4047825044532
NET WEIGHT (KG) 0.625
OPTICAL LENGTH (MM) 37.5 mm
CLAMPING SYSTEM Dovetail clamp
BACK FOCUS USAGE Port 1: 90 mm, Port 2: 110.5 mm, Port 3: 110.5 mm
OPTIONAL ACCESSORIES Available Telescope-Adapters Hedrick Focuser, IR90, Alluna, GO1, AZ5000 and various others; proper adapters for various cameras are available on demand.
INCLUDED ACCESSORIES 3m Ethernet cable, 12V power supply (US, UK and EU adapter included), six M5 set srews
OUTER DIAMETER 43
INNER CONNECTION (LENS SIDED) Dovetail ring
CAMERA CONNECTION Port1: 120 x 7,5mm dovtail mount | Port 2 and 3: M68x1 female
COMPATIBLE BRANDS Baader Planetarium
TYPE OF ADAPTER Extension



Downloads

IMP85 Quickstart Guide

Instrument Multi Port IMP85

Sample Installation for IMP85 on CDK 24"
