BCF 1 - DSLR Astro Conversion Filter for Canon APS-C Cameras (all latest Models)

SKU FBCF-400D (Baader #2459213)
Original price $96.00 - Original price $96.00
Original price
$96.00
$96.00 - $96.00
Current price $96.00

Add to Quote

To enquire or to place an order please press the Add to Quote button and add as many products to the quote as you are interested in. Add any questions or comments in the Message field. We will then get back to you to discuss your requirements. Alternatively, give us a call.

Click for further details on ordering, payment and shipping.

Description

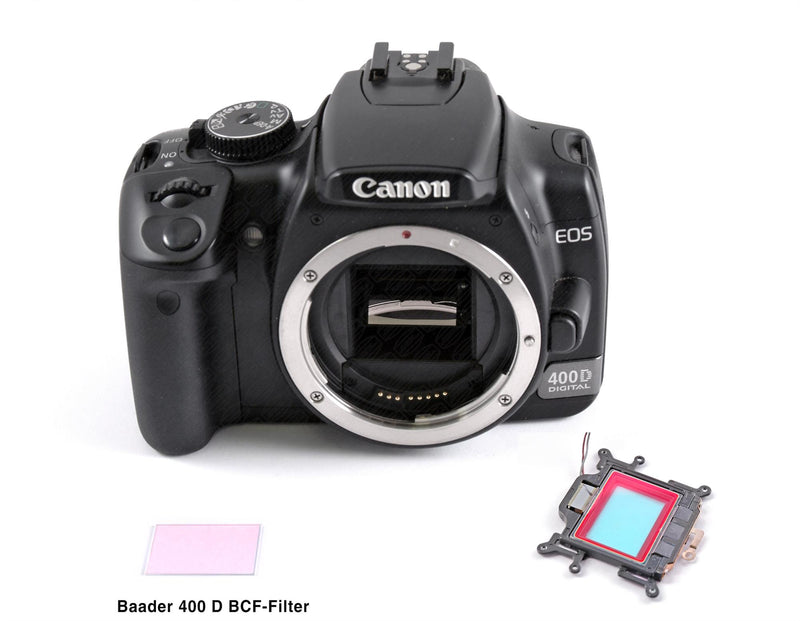

DSLR Conversion Filter for Canon APS-C cameras (all latest models, as well as older EOS 7D/40D/50D/60D/400D/450D/500D/550D/600D/650D/1000D/1100D/Rebel XS/T1i/T2i/T3/T3K,T4i)

Turn your Canon DSLR into a superb deep sky AstroCamera. Baader's DSLR conversion filters replace the factory correcting filter ("hot mirror"). The special substrate is coated with Baader's renowned coatings. Imagers can now gain full efficiency at H-Alpha wavelengths, and at full resolution (the Baader filter eliminates the Canon factory moire filter, which reduces resolution on astronomical subjects). The thickness of the Baader DSLR filters have been designed to maintain the correct factory focal point (please note: The Baader filter is intentionally of a different thickness than the factory filter - this is required to match the effective index of refraction of the factory 'sandwich' filter).

The Baader DSLR Conversion Filters are produced to the same specifications and by the same processes used for all of their other premium Baader Astronomical Filters. Each filter is optically polished to 1/4 wave and most importantly the ionbeam hardened coatings are applied AFTER cutting and polishing. This important aspect guarantees that your coatings will not peel or degrade due to the softer coatings and edge damage caused by post-cutting operations used by some other filters to cut costs. With a Baader filter, you never need to worry that your internal DSLR Conversion filter will fail prematurely.

This filter is intended for amateurs that are comfortable replacing their camera's stock filter. Please Note: For best performance we recommend installing the filter with the coated (pinkish) side facing out (FACF-1, II, III). The FBCF-400D is clear with no pinkish side and does not require any particular orientation. The digital astro eGroup is a great place for advice on how to replace this filter.

Here is a link to a very well done filter replacement tutorial: http://www.lifepixel.com/ir-tutorials/canon-rebel-xt-300d-digital-infrared-conversion-instructions.htm

Here's a very nice YouTube video done by Gary Honis on retrofitting a Canon 450D with the FBCF-400D: http://www.youtube.com/watch?v=-IIN0-q2WLY

If you are uncomfortable doing the replacement yourself, we can recommend these reasonably priced replacement services that use genuine Baader DSLR Filters and are very experienced at filter replacement:  Imaging Infinity    AstroGear

 Specifications
MANUFACTURER Baader Planetarium
SKU (#) 2459213
EAN CODE 4047825019721
WEIGHT (KG) 0.044
TRANSMISSION RANGE 400 – 700 nm
AR-COATING dielectrically coated, planeoptically polished
FILTER SIZE other
FILTER USAGE Color Correction, H-alpha, IR-Cut, UV-Cut
FILTER MOUNTED Unmounted
SINGLE OR SET? Single Filter
FILTER SHAPE rectangular



Downloads

FAQ - Problems with filters can have the strangest causes
